$12,650.00
Continuous High-Suction Performance for Heavy-Duty Grinding and Surface Preparation

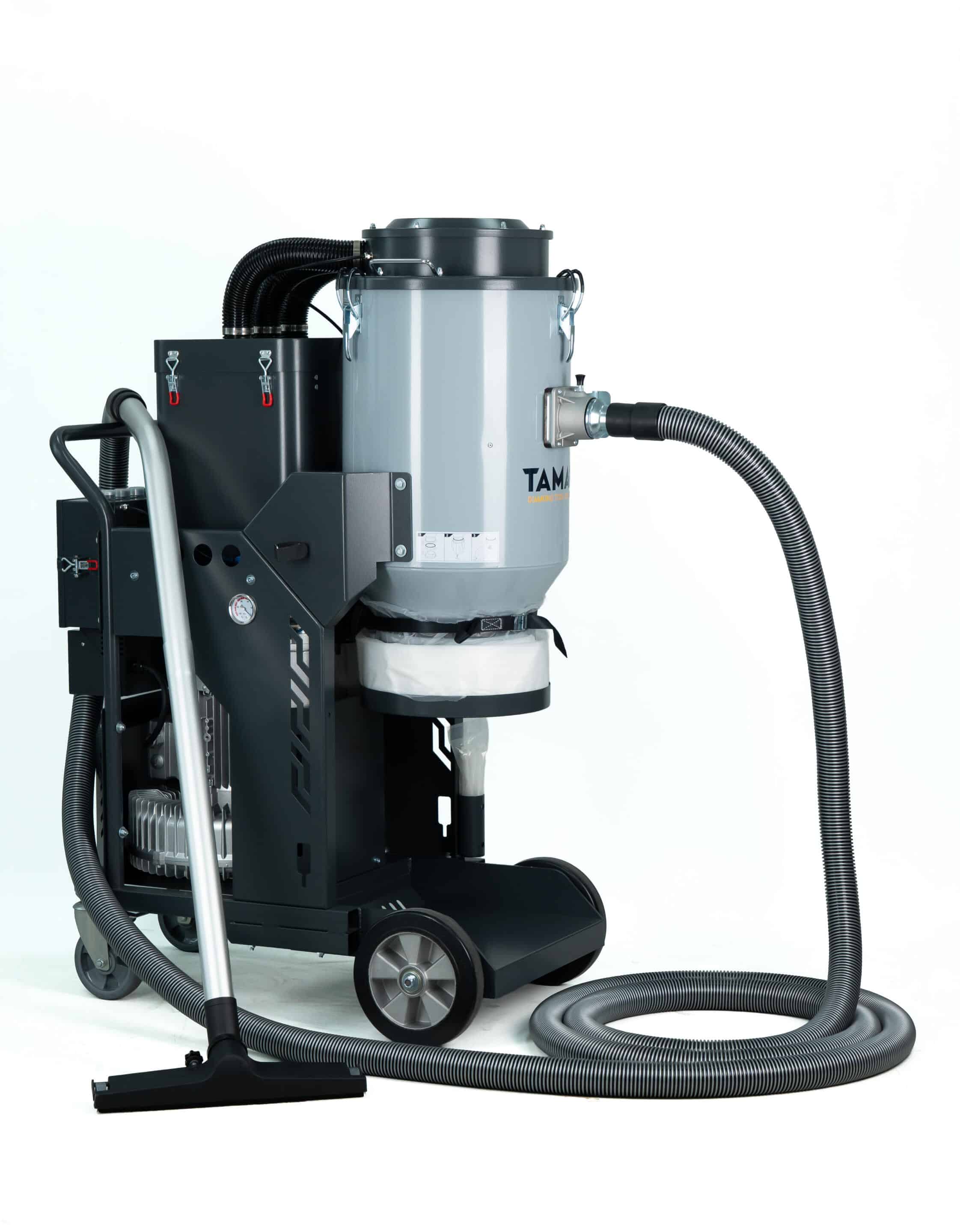

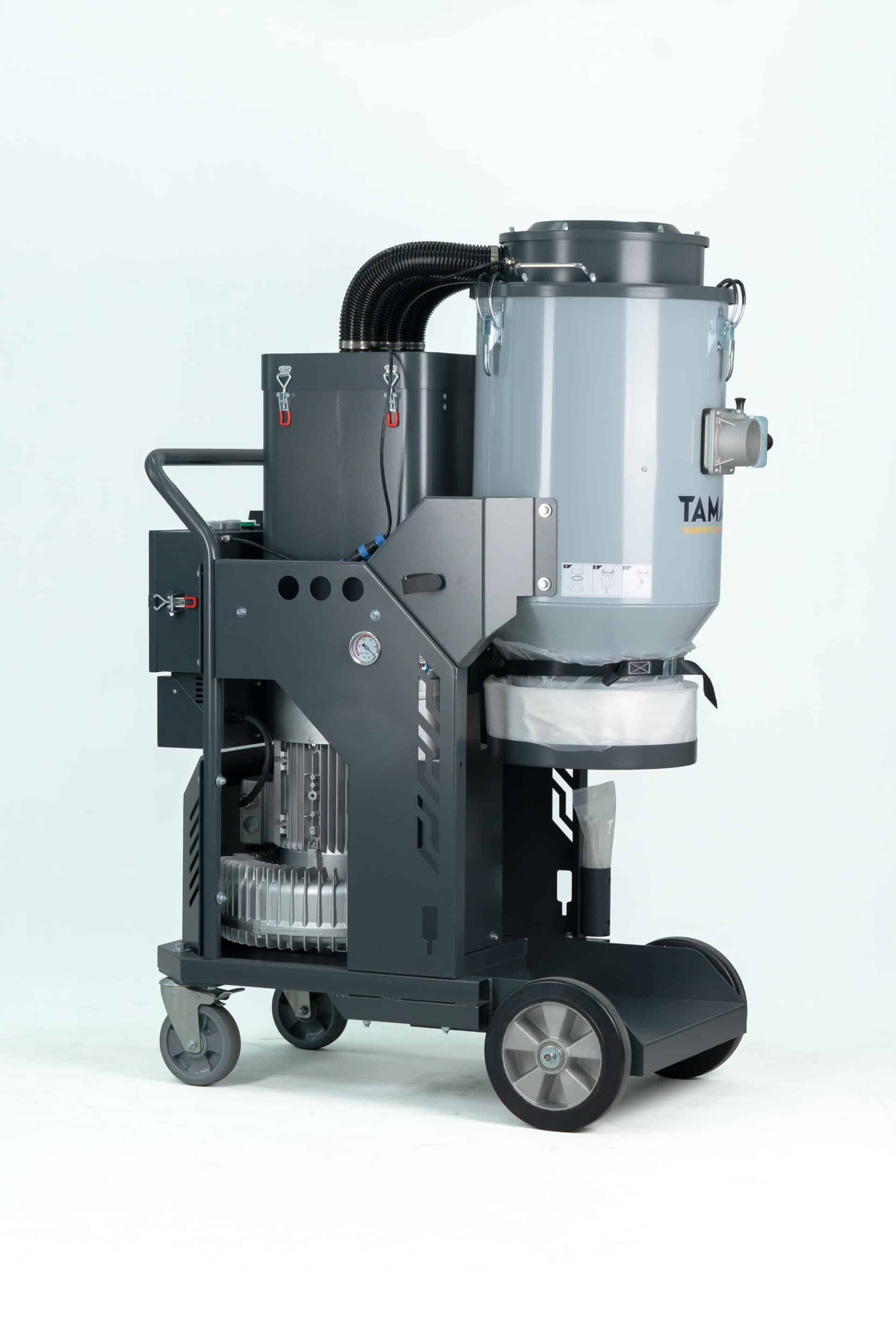

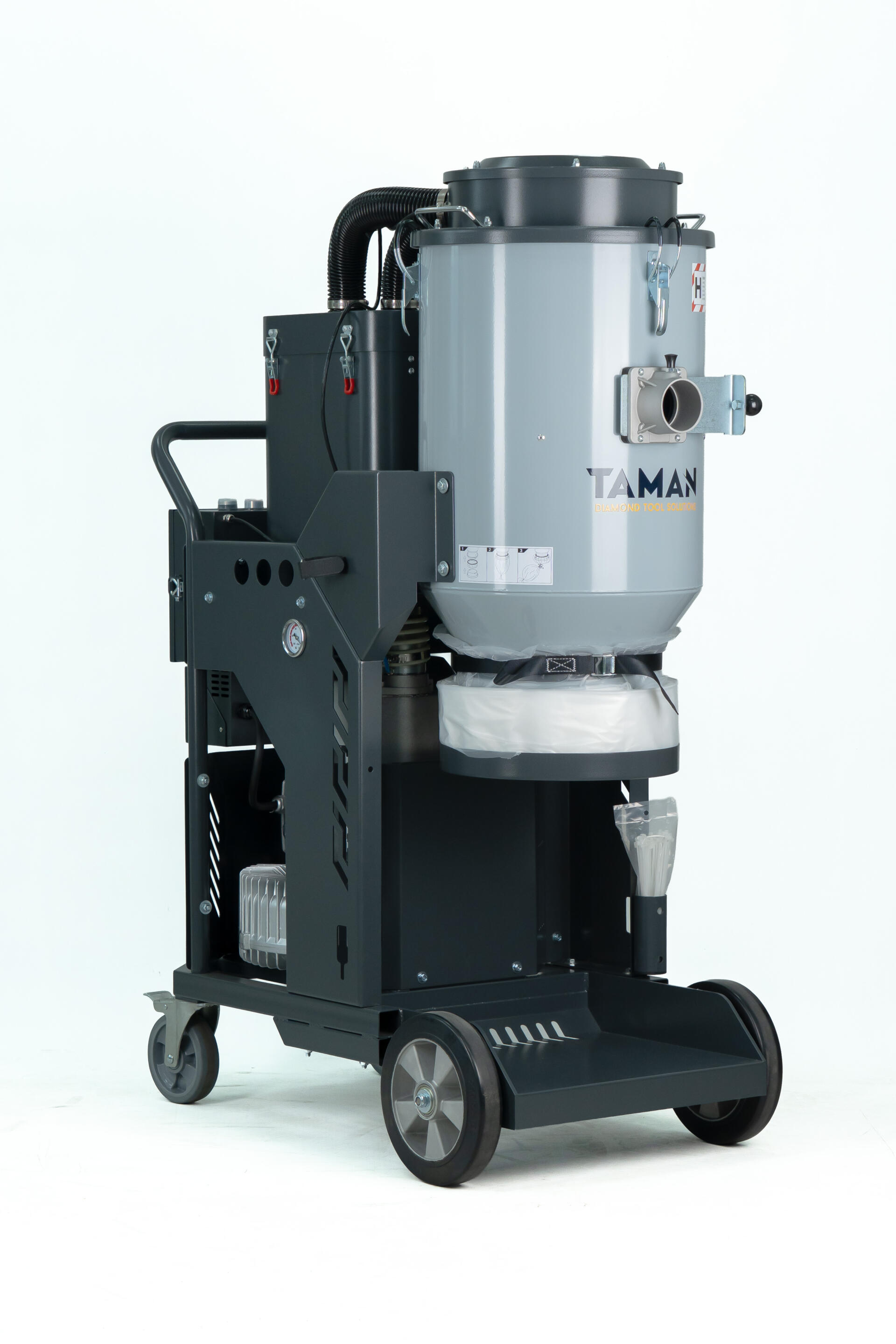

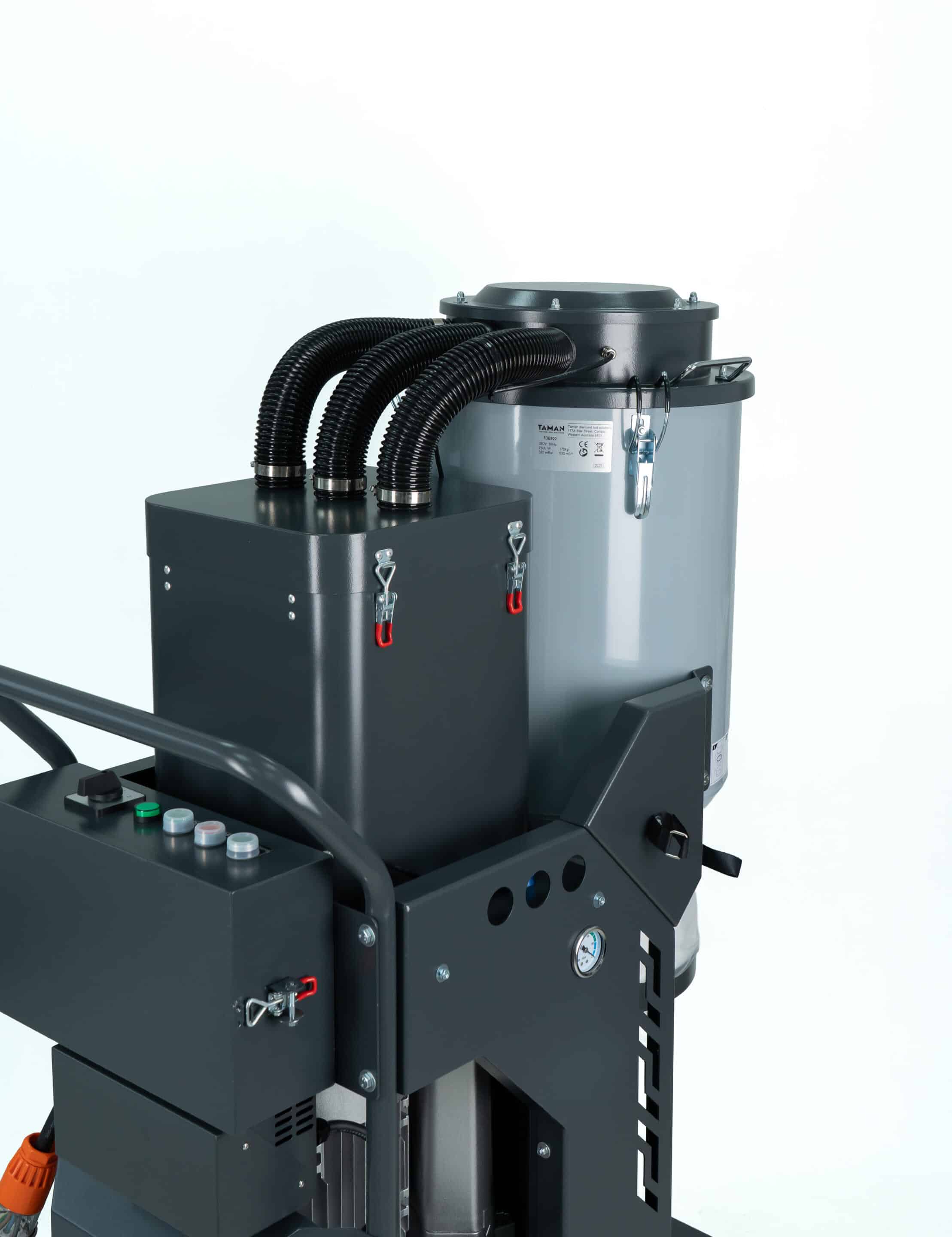

The TDE900 is a powerful three-phase industrial dust extractor designed to handle large-volume fine dust from concrete grinding, shot blasting, and surface preparation. Featuring an innovative automatic filter-cleaning system and dual-stage HEPA filtration, the TDE900 delivers continuous high suction performance with minimal maintenance — keeping operators productive and worksites dust-free.
Innovative Auto-Clean System – The TDE900’s patented self-cleaning mechanism continuously rotates the primary filters during operation, maintaining consistent suction without needing to purge filters every 10–15 minutes. This saves time, reduces downtime, and lowers operating costs.
OSHA-Compliant Filtration – Equipped with two H11 primary filters and four certified H13 HEPA filters, ensuring air exhaust cleanliness above 99.99 % @ 0.3 µm. Perfect for compliance with silica-dust safety standards.
Continuous Drop-Down Bag System – Provides safe, dust-free waste disposal and easy bag replacement without exposing workers to airborne particles.
Heavy-Duty Three-Phase Power – The 7.5 kW motor and 380 V / 50 Hz power supply deliver high, stable vacuum pressure for pairing with large-format grinders and shot blasters.
Reliable Two-Stage Filtration – Primary rotating filters remove coarse particles; secondary HEPA stage ensures ultrafine dust capture and clean air exhaust.
Rugged, Low-Maintenance Design – Simple, proven auto-clean mechanism and heavy-gauge construction ensure durability with minimal service needs.
| Feature | Specification |
|---|---|
| Model | TDE900 |
| Voltage | 380 V / 50 Hz (Three-Phase) |
| Power | 7.5 kW |
| Current Draw | 16.7 A |
| Vacuum Pressure | 320 mBar |
| Airflow | 530 m³/h |
| Filter Cleaning | Innovative Automatic Cleaning System |
| Primary Filters | 2 × H11 Rotating Self-Cleaning Filters (4.0 m² × 2) |
| HEPA Filters | 4 × H13 Filters (4.8 m² × 2) – > 99.99 % @ 0.3 µm |
| Collection System | Continuous Drop-Down Bag |
| Dimensions (L × W × H) | 630 × 1060 × 1450 mm |
| Weight | 190 kg |
| Standard Accessories | 10 m × Ø76 mm PU Hose, D70/50 Reducer, D50 Brush, D50 Hose Cuff, D50 S-Wand, 7.5 m × Ø50 mm EVA Double-Layer Hose |
| Applications | Concrete Grinding, Polishing, Shot Blasting, Surface Preparation |
| Compliance | OSHA Silica Dust Control Standards |
Continuous auto-cleaning eliminates downtime for manual filter purging.
Dual-stage HEPA filtration ensures worker safety and air quality compliance.
Built for pairing with large grinders (500 mm +) and shot blasters.
Heavy-duty three-phase performance with consistent suction power.
Simple, durable design minimises maintenance costs over years of use.
