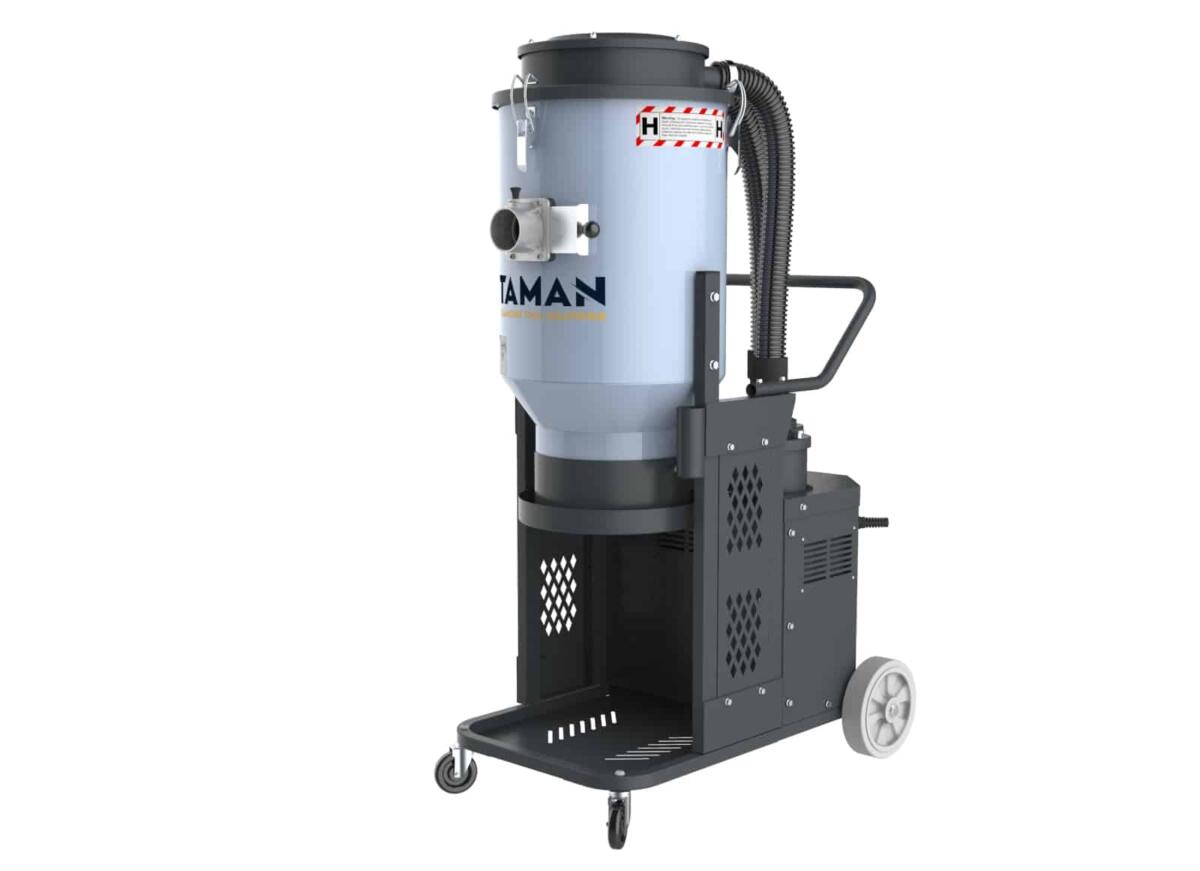

TDE3-AC is a triple motors auto pulsing HEPA dust extractor.the auto pulsing technology gets rid of the air compressor and manual cleaning, reliable and effective, ensuring 100% uninterrupted working.
The first stage equipped with two cylindrical filters with 3.0 m’ filter area in total. The second stage has 2pcs H 13 HEPA filter tested and certified with EN 1822-1 and IEST RP CC001.6.
1. Three powerful Ametek motors, can work with grinder working width below 750mm.
2. The independently controlled switches avoid burning out the switch when start the vacuum.
3. Bersi patent Auto Pulsing technology, no manual cleaning, save the labour time greatly.
4. OSHA compliant 2- stage filtration system. In the primary stage, the two cylindrical filters take turns to pulsing clean.
In the second stage, 3PCS H13 HEPA filters with 99.99% @0.3?m efficiency.
Power (kw) 3.6kw
Voltage 240V 50/60Hz
Airflow (m’ /h) 600
Vacuum (mBar) 240
Pre-filter 4.Sm 2 >99.5%@1 .0um
Hepa filter (H13) 3.6m 2 >firstname.lastname@example.org
Dimension (mm) 630X840X1470
N.W./G.W. (kg) 87 /101
Packing dimension (mm) 680X910X1 300
