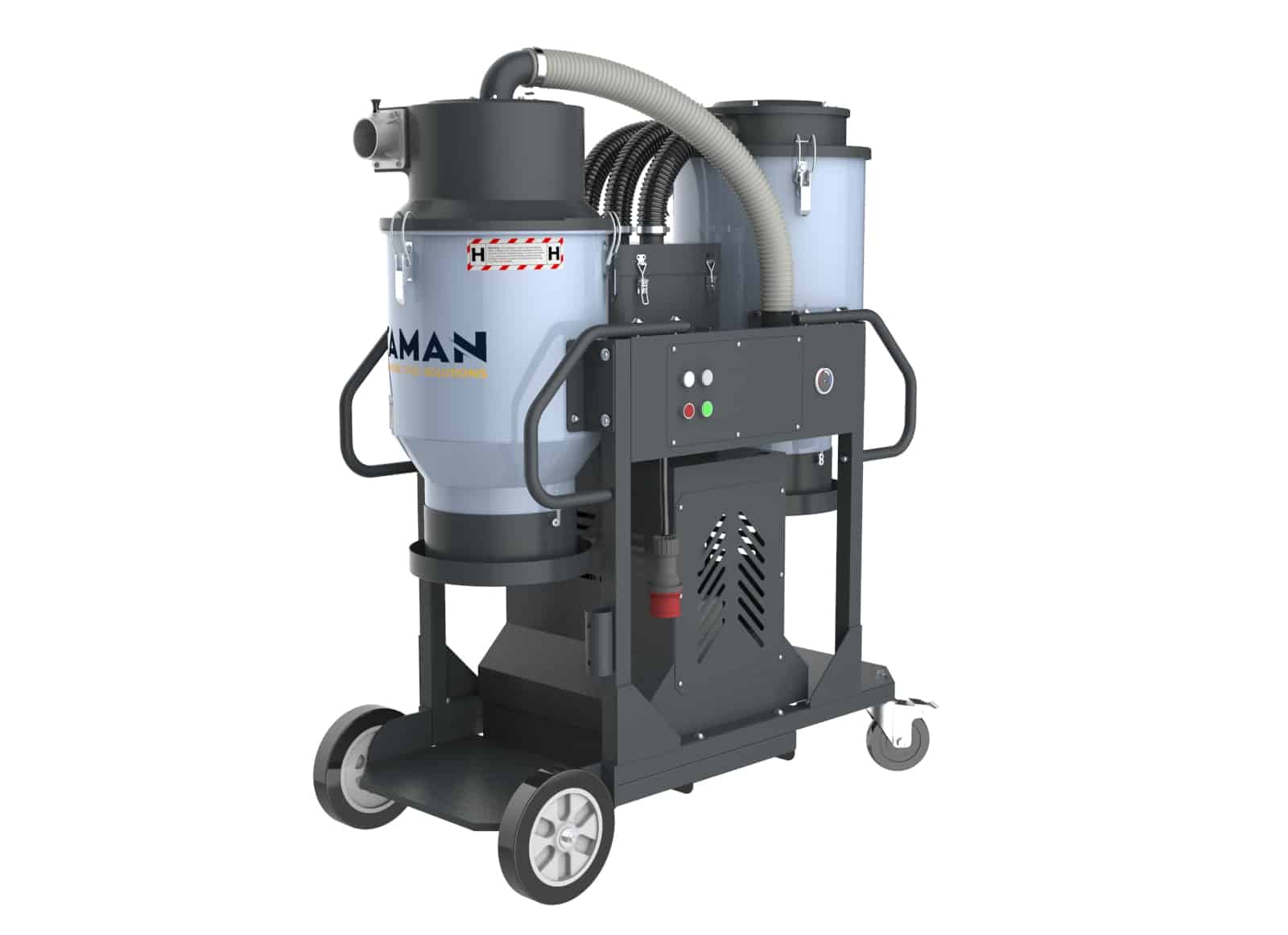

TDE 800 Plus Three phase Auto Pulsing HEPA Dust Extractor

TDE-800 Plus is a very powerful three phase dust extractor, integrated with a high performance pre-separator which removes up to 95% of the fine dust before it come into the filter. It features the innovative auto clean technology, this allows the vacuums continuous operation. The TDE-800 Plus is equipped with a 2-stage filtration system, 2 cylindrical filters in the first stage rotate self cleaning , 4 HEPA certificated H13 filters in the second stage promise the operators safe and clean air. The continuous folding bag system ensures simple, dust-free bag changes.

Main features:
1. The heavy duty turbine motor provides 24h continuous operatation.
2. Integrated pre-separator.
3. The patent and innovated auto clean system is very reliable and has a low service cost.
4. Designed for large size grinder, polishing machine and shot blaster.

Specifications
Voltage 380V 50Hz
Power (kw) 7.5kw
Current 16.7A
Vacuum(mBar) 270mbar
Airflow(Max) 700m3/h
Dimension (mm) 600X1030X1420
N.W./G.W. (kg) 210/225
Packing dimension (mm) 710X1330X1730
