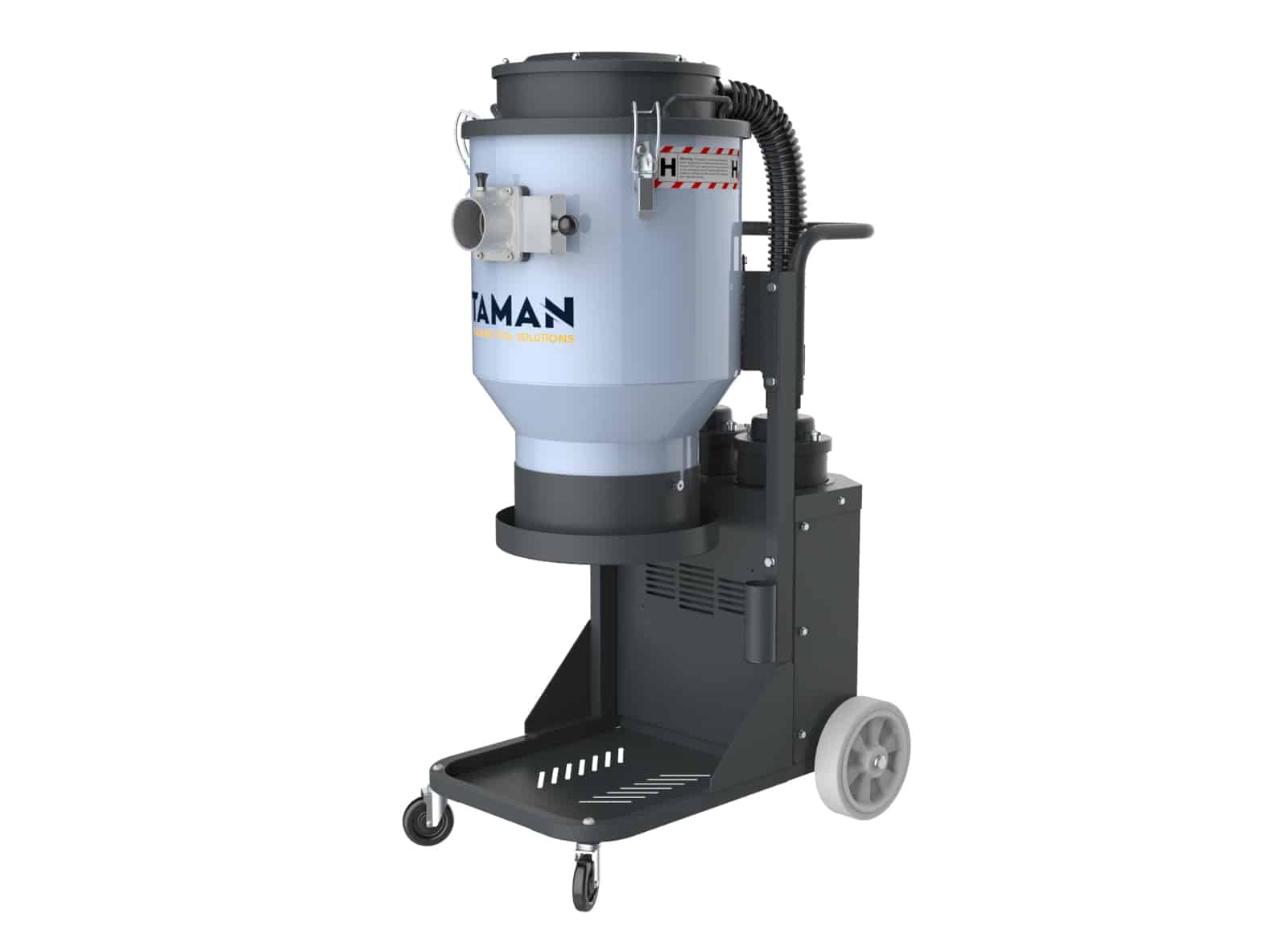

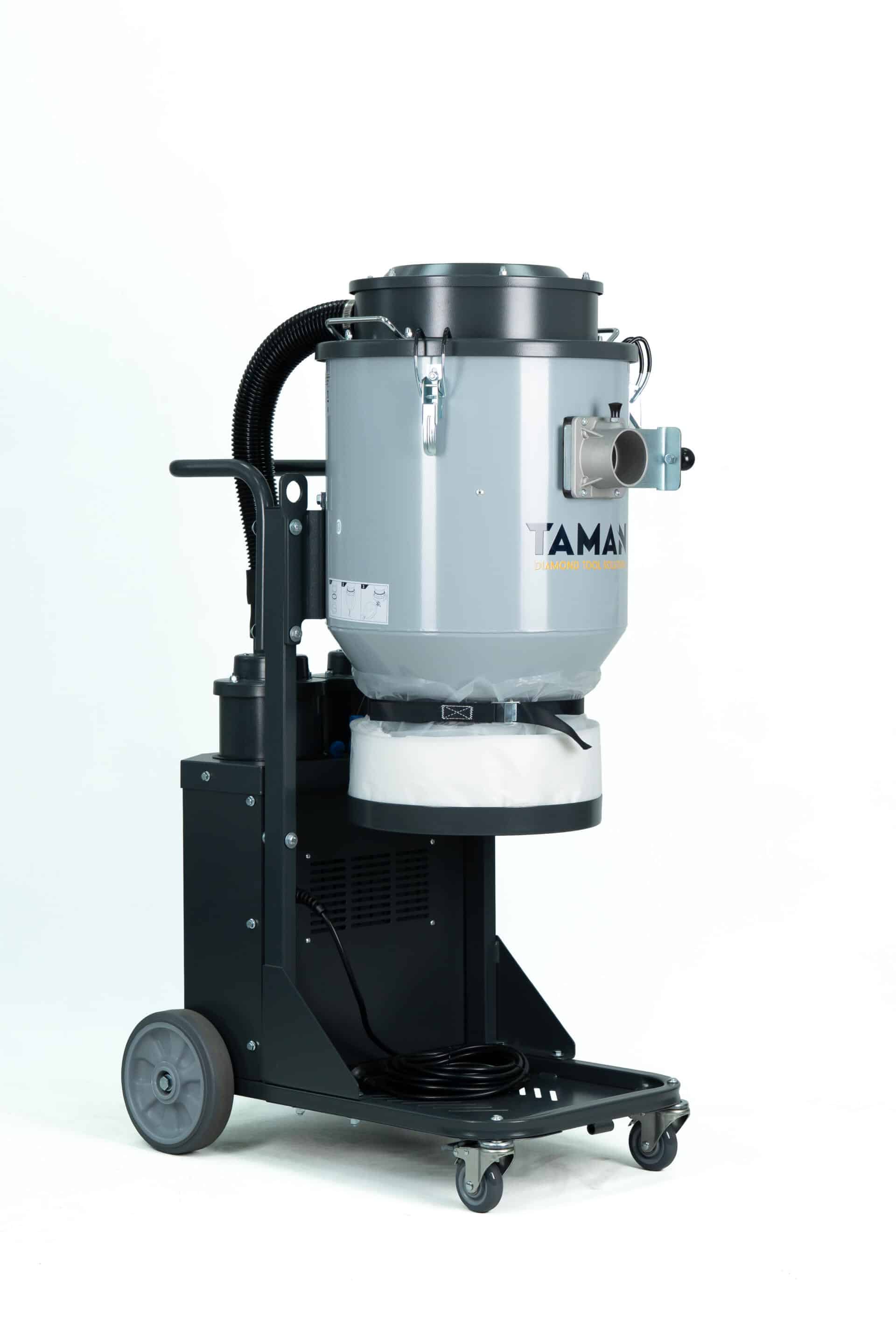

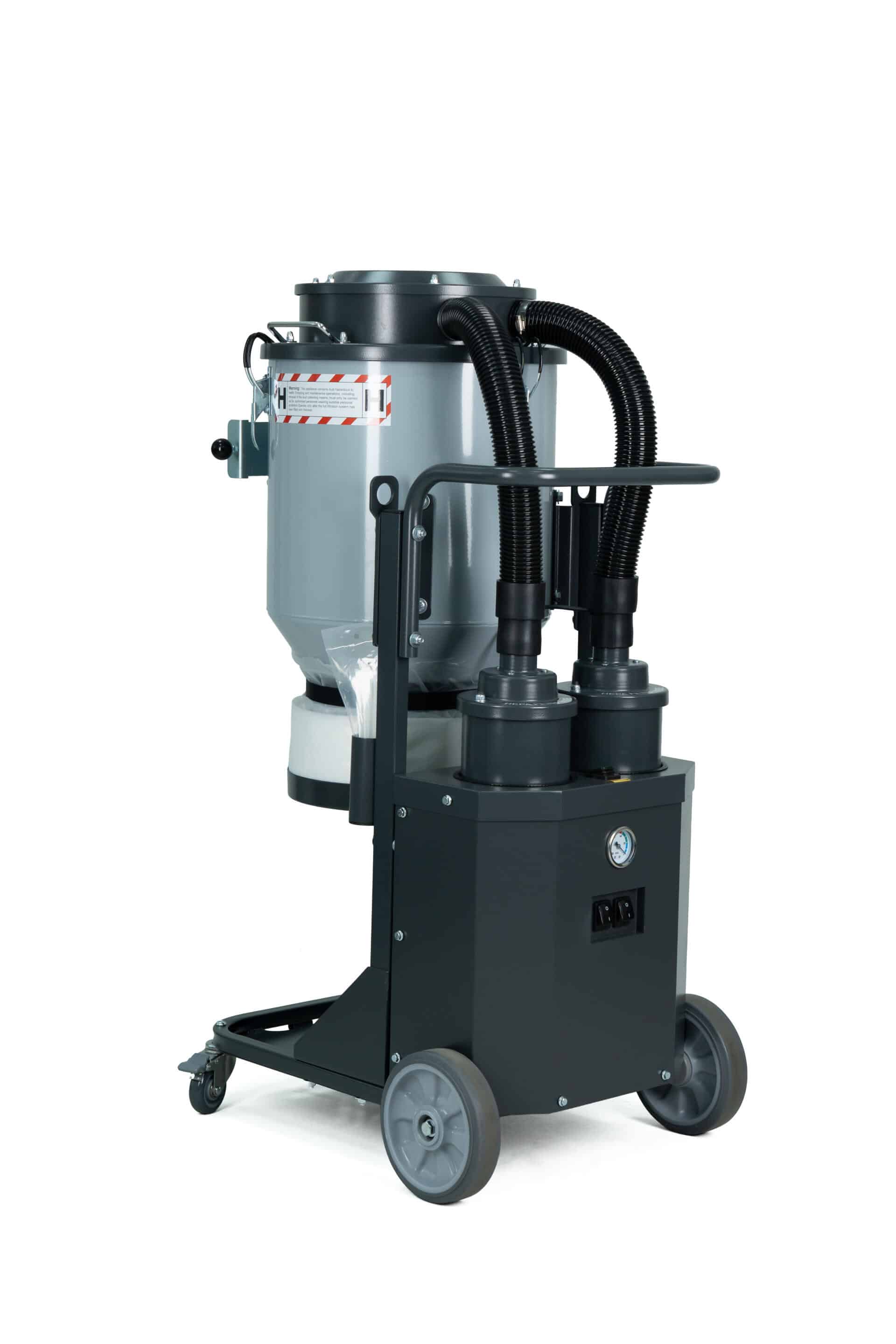

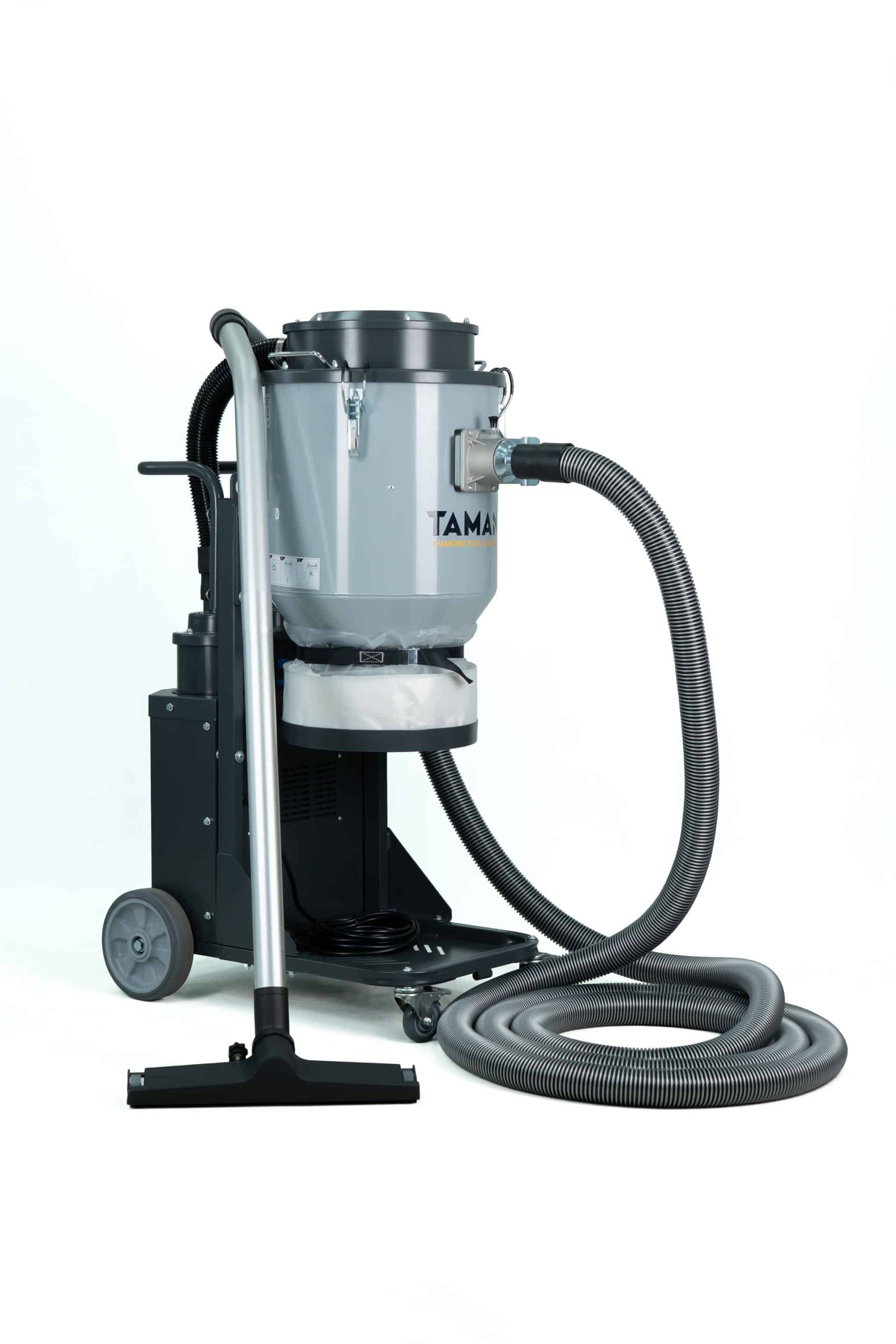

TDE2 Single Phase 2 Motor Auto Pulsing Hepa Dust Extractor

TDE2-AC is a twin motor Auto Pulsing HEPA dust extractor .
The auto pulsing technology gets rid of the air compressor and manual cleaning, reliable and effective, ensuring 100% uninterrupted working.
The first stage equipped with two cylindrical filters with 3.0 m’ filter area in total. The second stage has 2pcs H 13 HEPA filter tested and certified with EN 1822-1 and IEST RP CC001.6.

Main features:
1. Two powerful Ametek motors, ideal for grinder working width below 600mm.
2. Patent Auto Pulsing technology, no manual cleaning,
3. OSHA compliant 2-stage filtration system. In the primary stage, the two cylindrical filters take turns to pulsing clean. In
the second stage, 2PCS H13 HEPA filters with 99.99% @0.3?m efficiency.

Specifications

Power (kw) 2.4kw
Voltage 240V 50/60Hz
Amps 9.6
Airflow (m ‘ /h) 400
Vacuum (mBar) 240
Pre-filter 3.0m 2 >99.5%@1.0um
Hepa filter (H13) 2.4m 2 >99.99%@0.3um
Dimension (mm) 570x710x1300
N.W./G.W. (kg) 64.5/82
Packing dimension (mm) 620X750X1480
