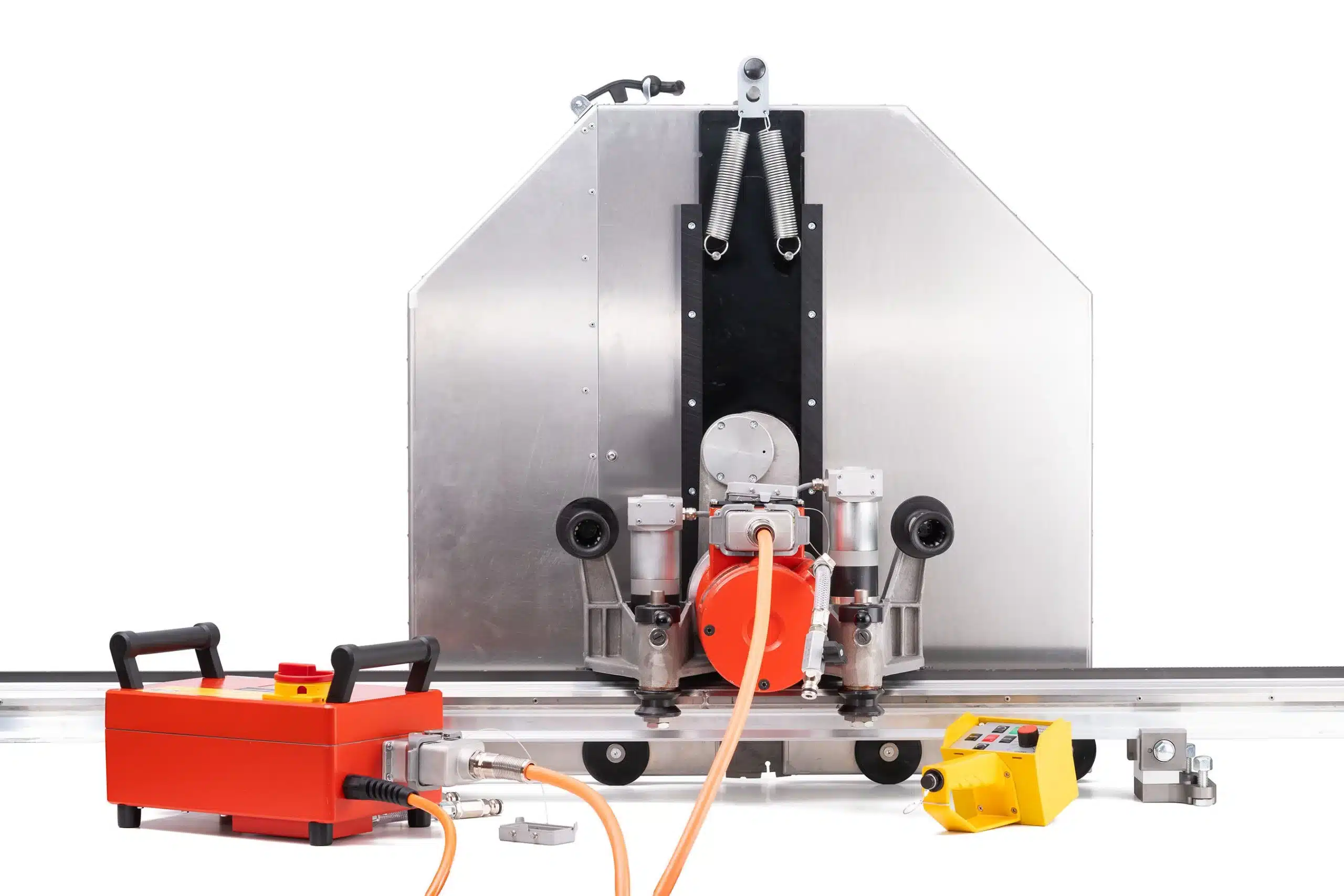

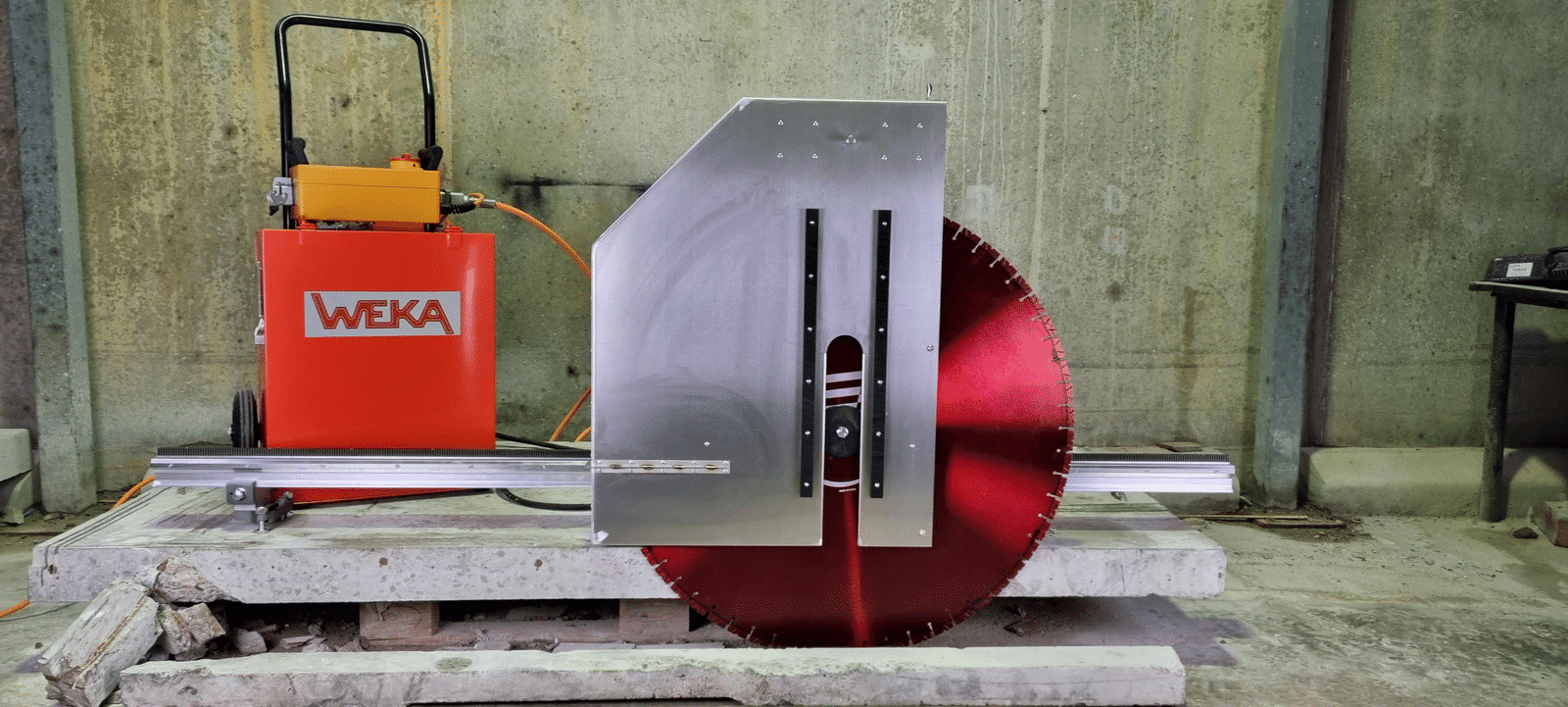

WEKA WS76 FRIDA HF Diamond Wall Saw 14KW

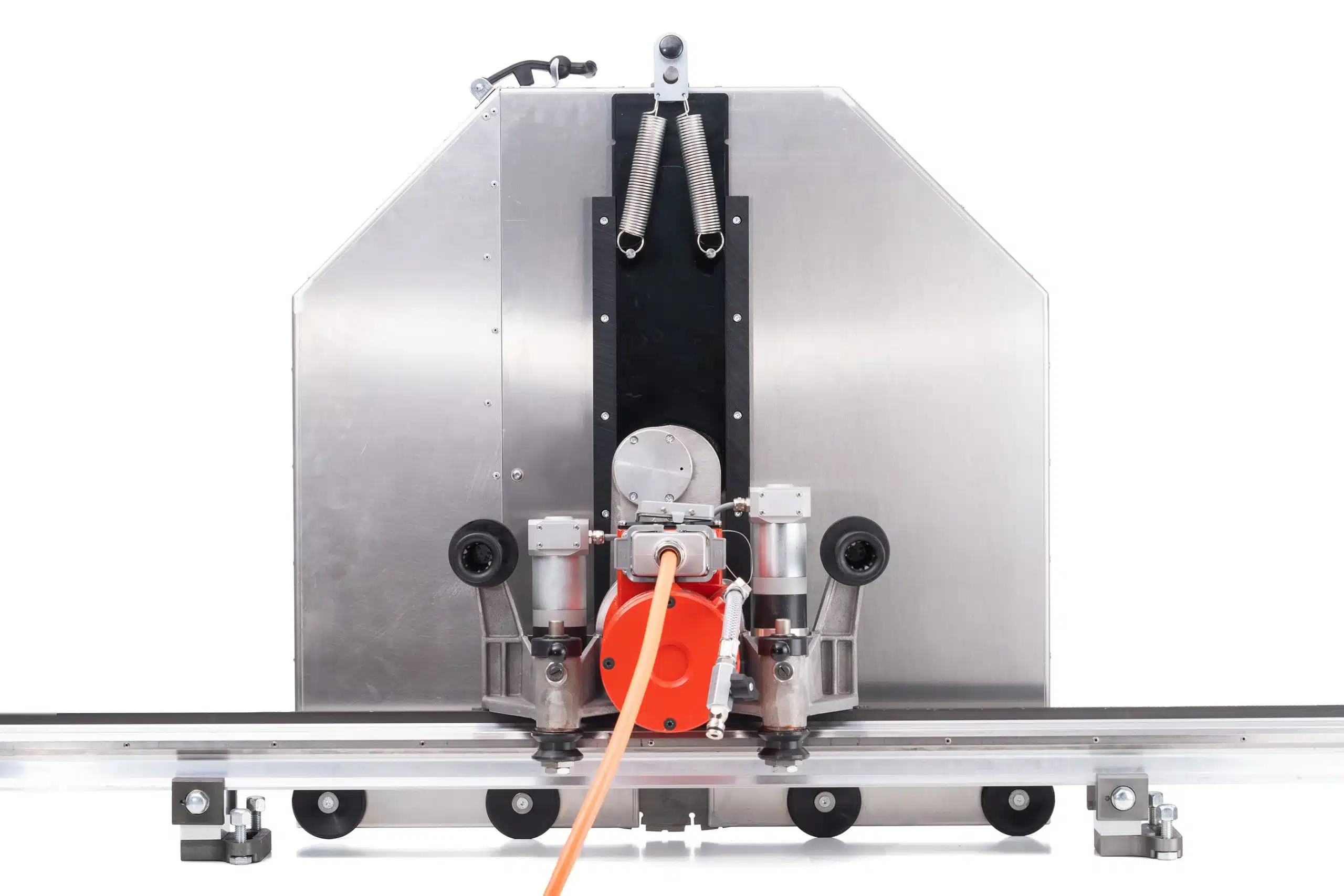

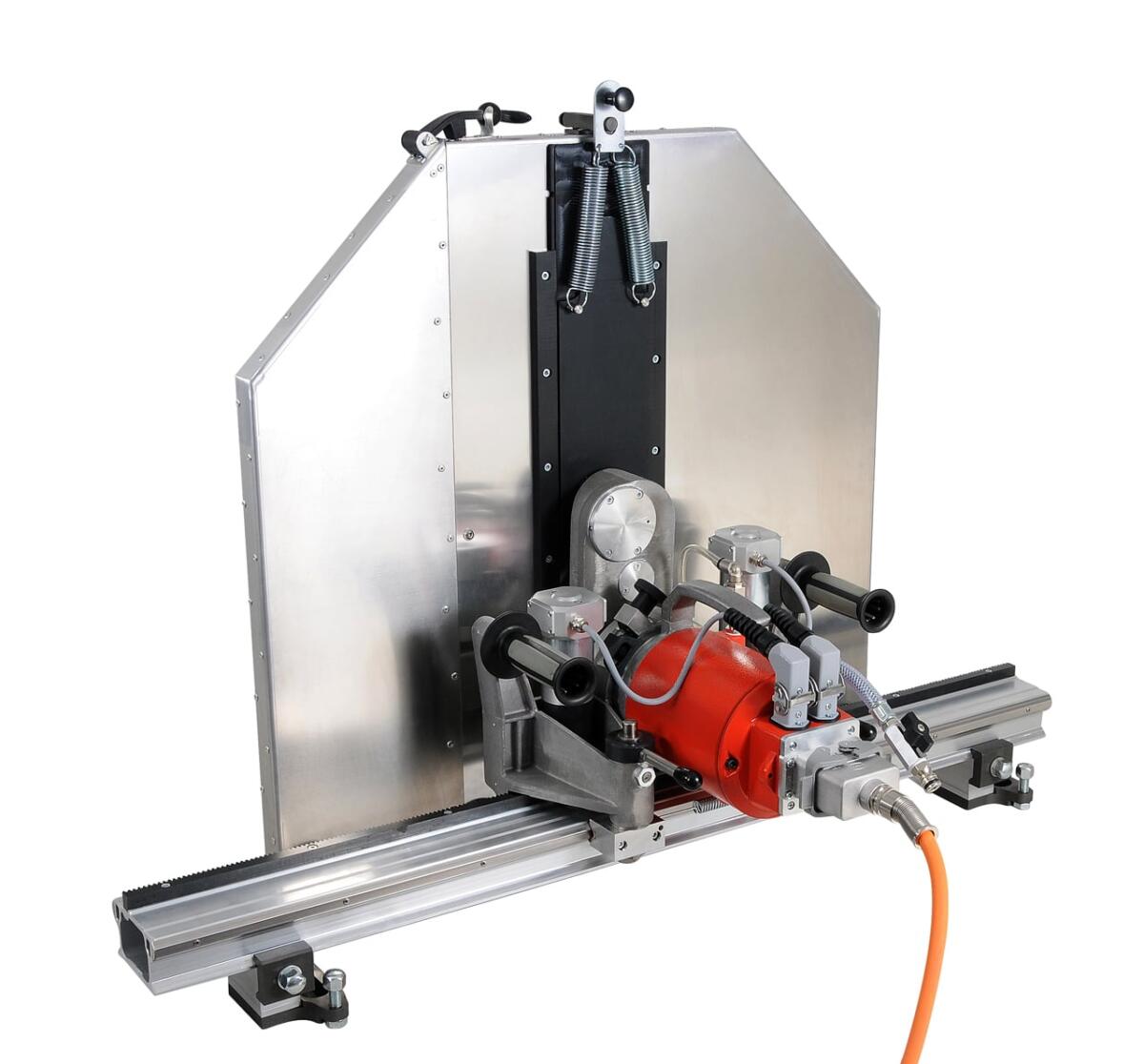

WEKA WS76 FRIDA HF Diamond Wall Saw 14KW - Image 2

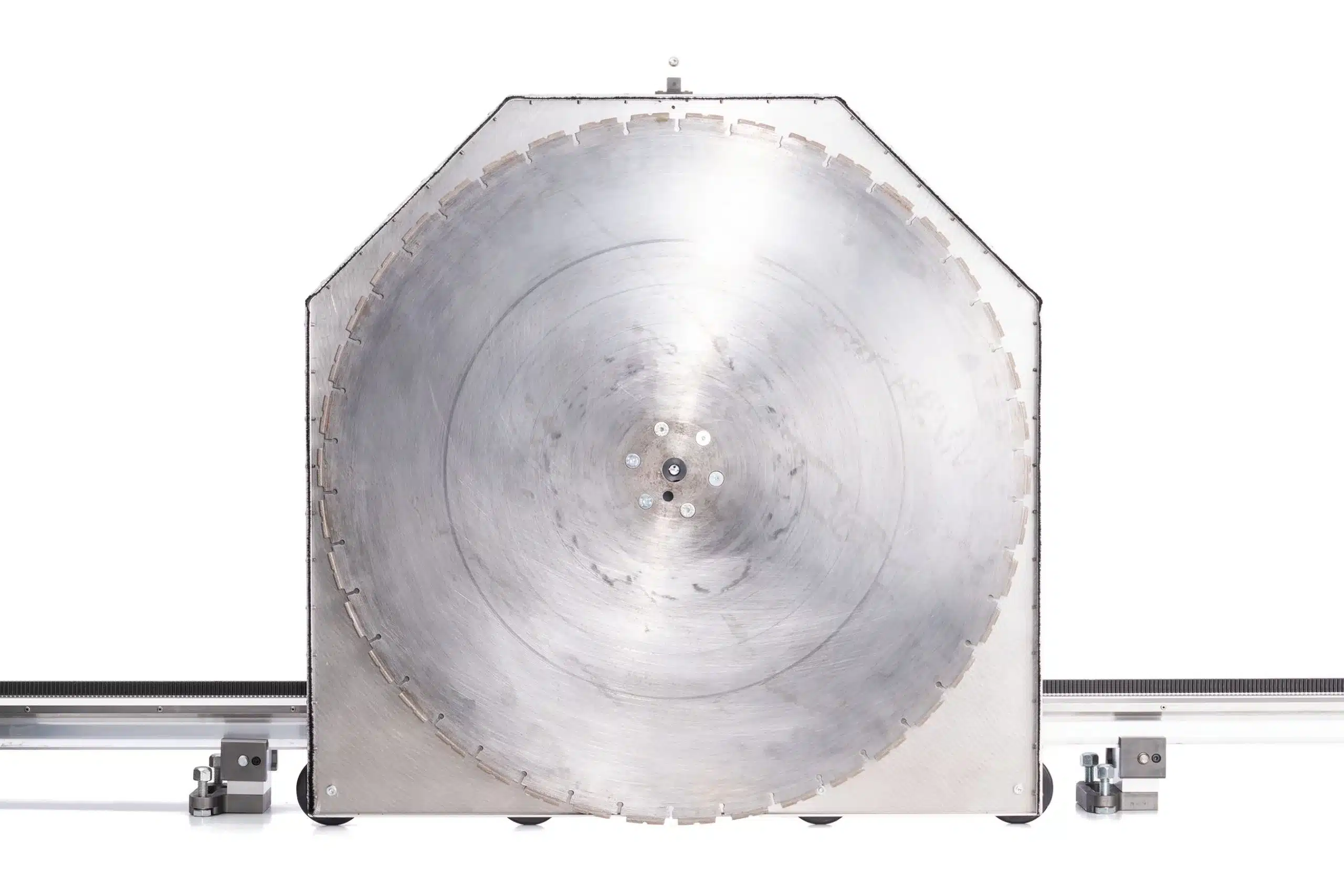

WEKA WS76 FRIDA HF Diamond Wall Saw 14KW

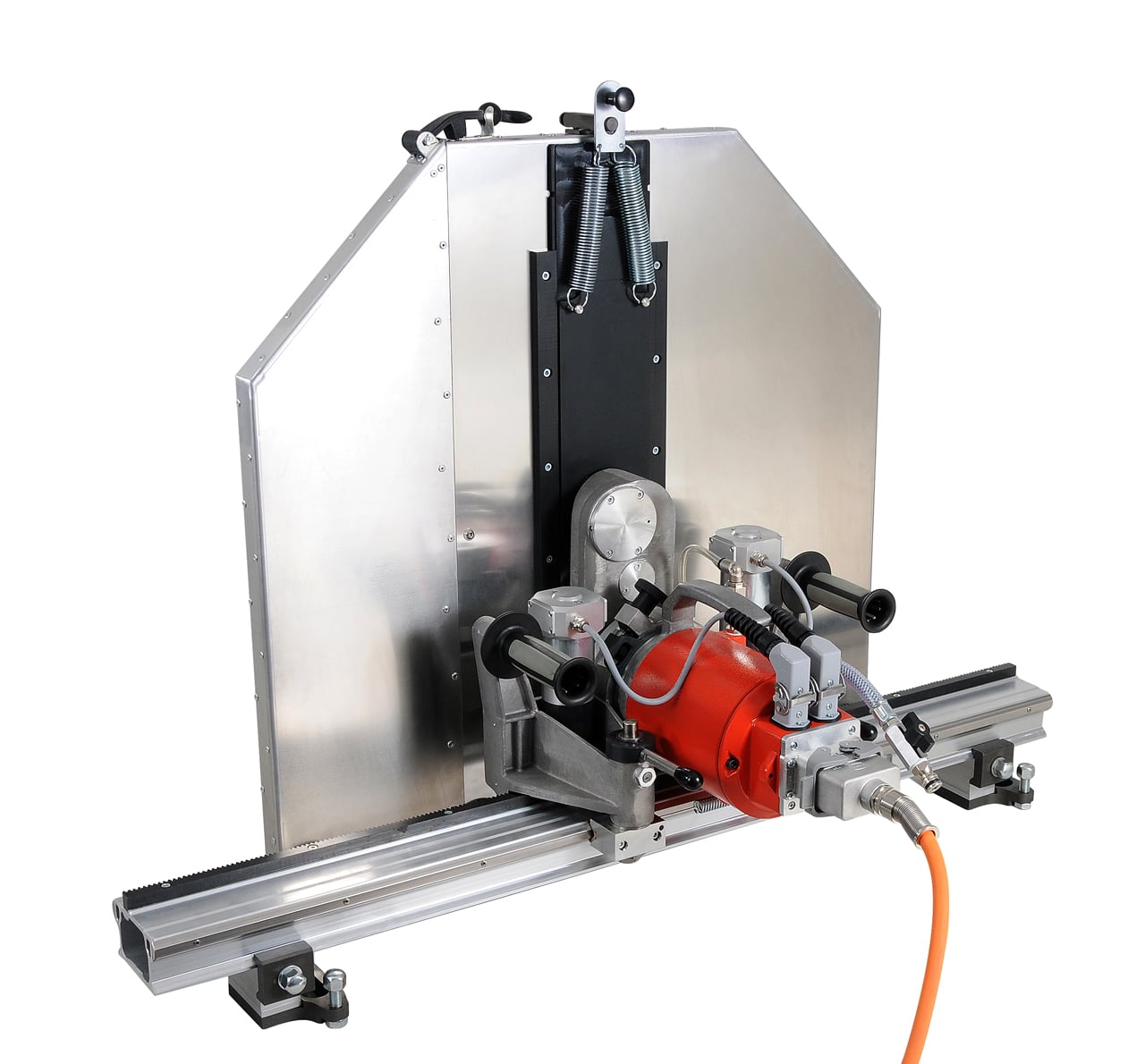

WEKA WS76 FRIDA HF Diamond Wall Saw 14KW

WEKA WS76 FRIDA HF Diamond Wall Saw 14KW

WEKA WS76 FRIDA HF Diamond Wall Saw 14KW

WEKA WS76 FRIDA HF Diamond Wall Saw 14KW

WEKA WS76 FRIDA HF Diamond Wall Saw 14KW

$40,150.00

SKU 137-WS76HFRIDA Category Wall Saws Tags Wall Saws, Website

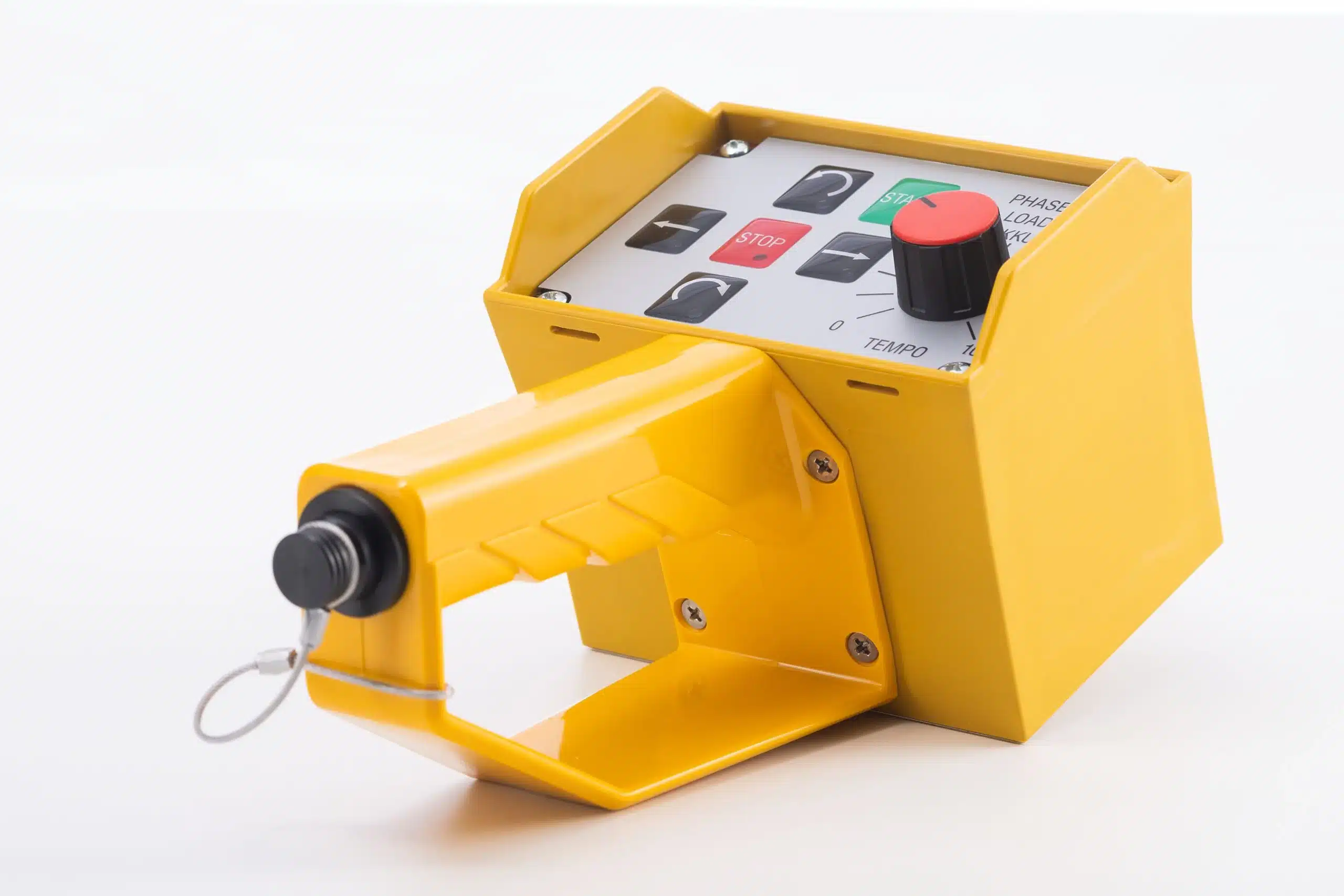

Powerful electric wall saw for cutting concrete walls and masonry up to 410 mm deep, with water-cooled high-frequency motor and wireless remote control

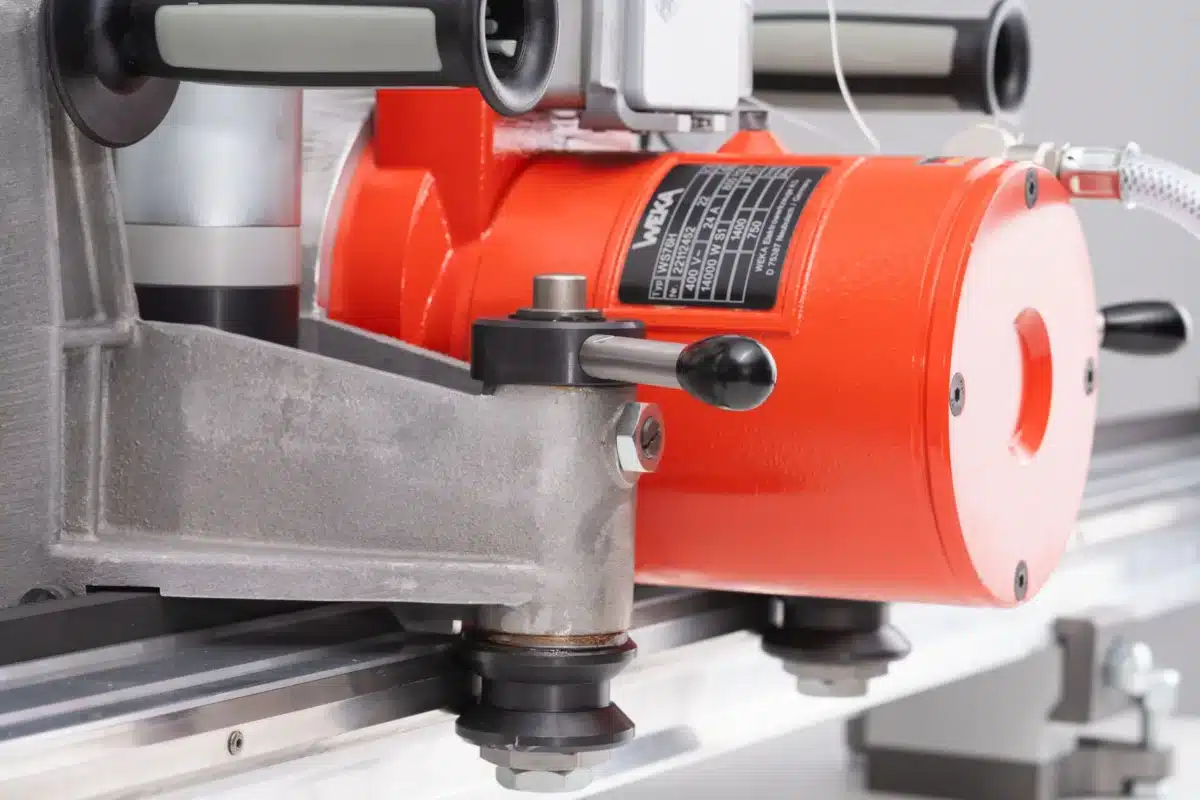

Powerful water-cooled high-frequency motor with 11 kW
High feed force for longitudinal and plunge feeds.
Drive motor can be easily detached from the machine carrier.
Variable spindle speed.
Gearbox with oil-bath lubrication and overload clutch.
Torsion-resistant guide rail with low-wear stainless steel prism guide.
Splash-proof according to IP55.
Flush blade guard available as an accessory.

Nominal power saw motor	kW	14
Output power saw motor	kW	11
Nominal speed saw spindle	1/min	1100 – 1700
Saw blade diameter max	mm	750/930
Max. cutting depth	mm	320/410
feed force longitudinal and plunge feed	N	2000
Speed longitudinal feed	m/min	0-3
plunge feed speed	1/min	0-1
Weight	kg	28,5
Blade holder	mm	25.4 (1″)
Saw flange for flush cut		TK90 – 6xM8

In stock
