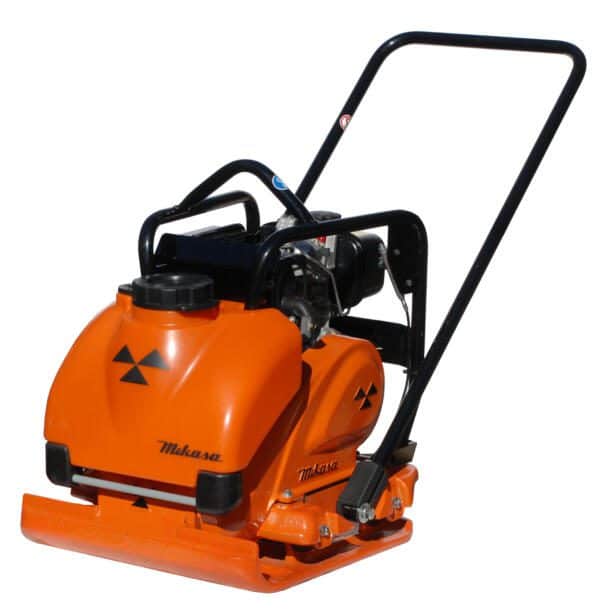

Mikasa Forward Plate Compactor MVC-T100D

Mikasa Forward Plate Compactors set the standard for the compaction of sub-bases and asphalt. Mikasa Forward Plate Compactors offer superior build quality and excellent performance. They are also highly portable, easily manoeuvrable and deliver excellent compaction results.

– Yanmar L48 diesel engine provides hassle free operation, low fuel consumption and long-term reliability
– Sealed clutch and belt guard protects against the ingress of dust and other unwanted materials that can prematurely wear out critical clutch components and V-belt
– Optional transport wheel kit for easy and safe onsite manoeuvrability
– Central lifting hook for easy and safe onsite handling
– Clip-on water tank for suppression of dust and asphalt works

Specifications:
– Model: MVC-T100D
– Engine and power: Yanmar L48 4.7 hp
– Fuel type: Diesel
– Operating weight: 103 kg
– Plate size (wxl): 500 mm x 525 mm
– Centrifugal force max: 15 kN
– Vibration frequency: 6000 vpm
– Max travel speed*: 25 m/min
– Max gradeability: 35%
– Max compacted area: 750 m2/h
– Lifting hook: Yes
– Wheel kit: Optional
– Water tank: Yes

* Travel speeds vary based on different soil conditions. Specifications published are based on average performance results.
