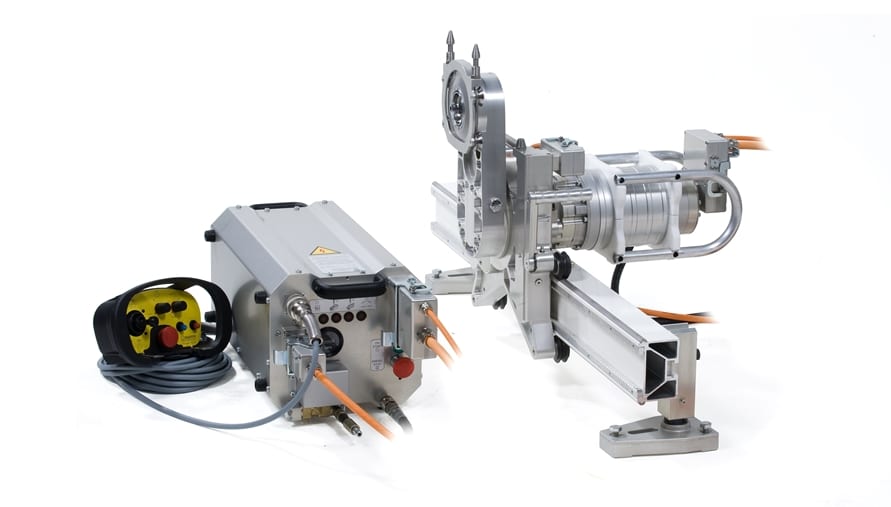

Pentruder 8-20 High Frequency Wall Saw

The Pentruder wall saws are easy to handle and operate, offering a very good power-to-weight ratio.

High torque wall saw for big blades and tough aggregates. Max blade: Ø 2000 mm Max cutt. depth: 915 mm Max output power: 27 kW 4-speed gearbox

Key Features:
Saw blade ⌀ max – 2000 mm(78″)
Cutting depth max – 915 mm (36.0″)
Max output torque – 480 Nm

Technical Strengths

High power and reliability:
The Pentruder wall saws are powered by very powerful HF-motors. They all have very efficient cooling, and high torque and are built with the best materials for reliability and a long lifetime. Reliable 400 Hz technology ensures a very reliable motor, long life of the bearings and no need for frequent maintenance.

Slip clutch protects your machine:
If the saw blade jams, the slip clutch prevents the inertia of the HF rotor from destroying the gears in the transmission. The rotor inertia will want to keep turning the rotor, and stopping the rotor from 13.000 rpm to a dead stop in a fraction of a second is just impossible. The speed of the rotor must be reduced gradually, and this is taken care of by the slip clutch.

Quick disconnect blade flange coupling:
Quick disconnect blade flange coupling for radial mounting of the saw blade. The saw blade can be fitted to the saw head even after the machine has been mounted, also for flush cutting.

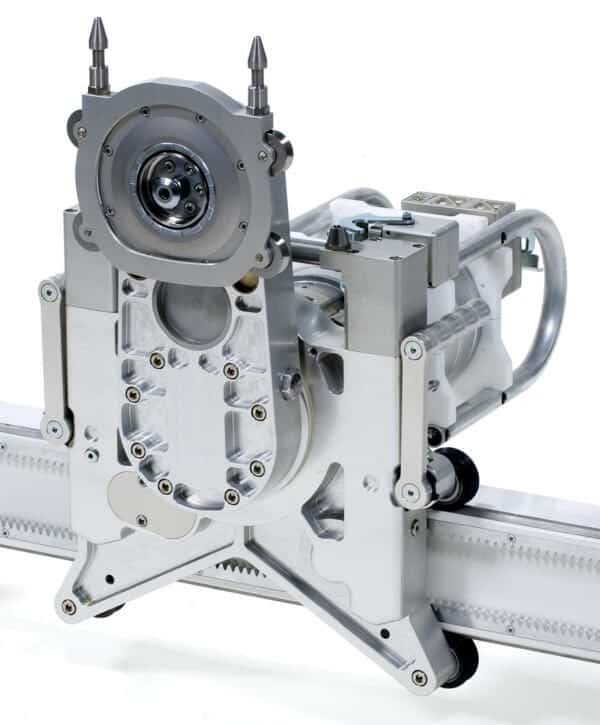

Robust and lightweight build:
Lightweight saw head built from aircraft quality components machined from solid aluminium. No castings are used.

Versatile track system:
User-friendly track system saves a lot of time and trouble when setting up the machine. With swivelling feet, you only need to set up once in each corner, such as cutting a door opening.
