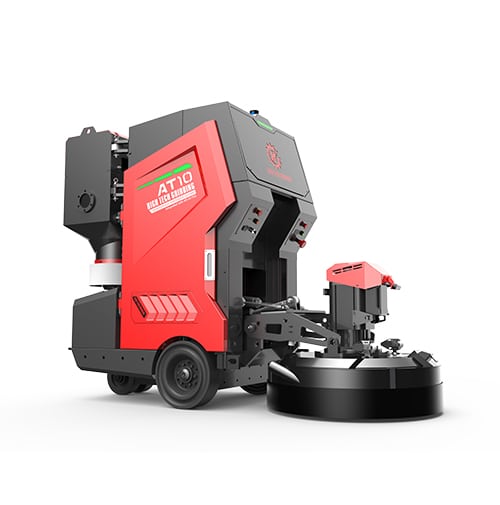

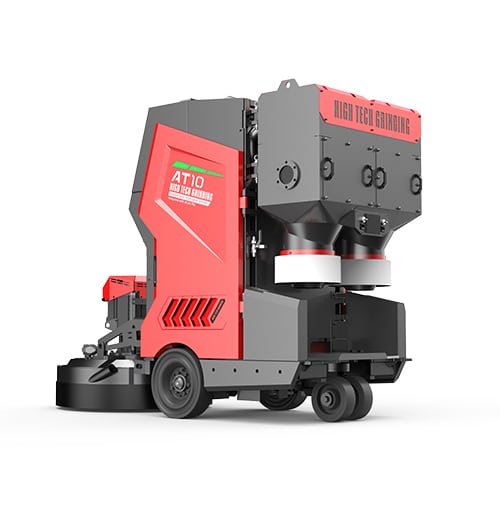

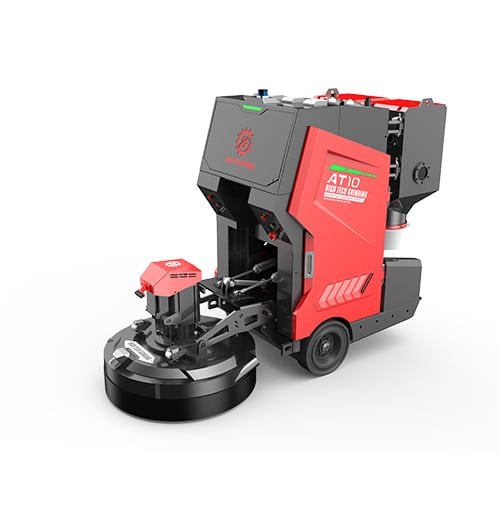

HTG – AT10 – Autonomous Floor Grinder – 22KW

The HTG AT10 is a fully autonomous planetary floor grinder built for large-format industrial and commercial slabs. A 22 kW three-phase drive turns four 315 mm heads across a 995 mm grinding width, with grinding pressure adjustable from 100 to 600 kg and head speed from 350 to 1,950 rpm.

An integrated auto-clean vacuum section with 8 x 1.12 m² of HP13 filter area captures dust at the head, so the machine runs unattended without a separate extractor and hose to manage.

• Motor: 22 kW / 29.5 HP, 3 phase 380 V, 50 A
• Grinding width: 995 mm
• Grinding discs: 315 mm x 4
• Speed: 350 – 1,950 rpm
• Grinding pressure: 100 – 600 kg
• Weight: 2,150 kg
• Filter class: HP13, 8 x 1.12 m²
• Airflow: 0 – 537 m³/h

Wearing parts and freight are not included in the listed price.
