Weka FS40 Guide Rail Compatable with the TR40 and TS40

FS40 Guide Rail System

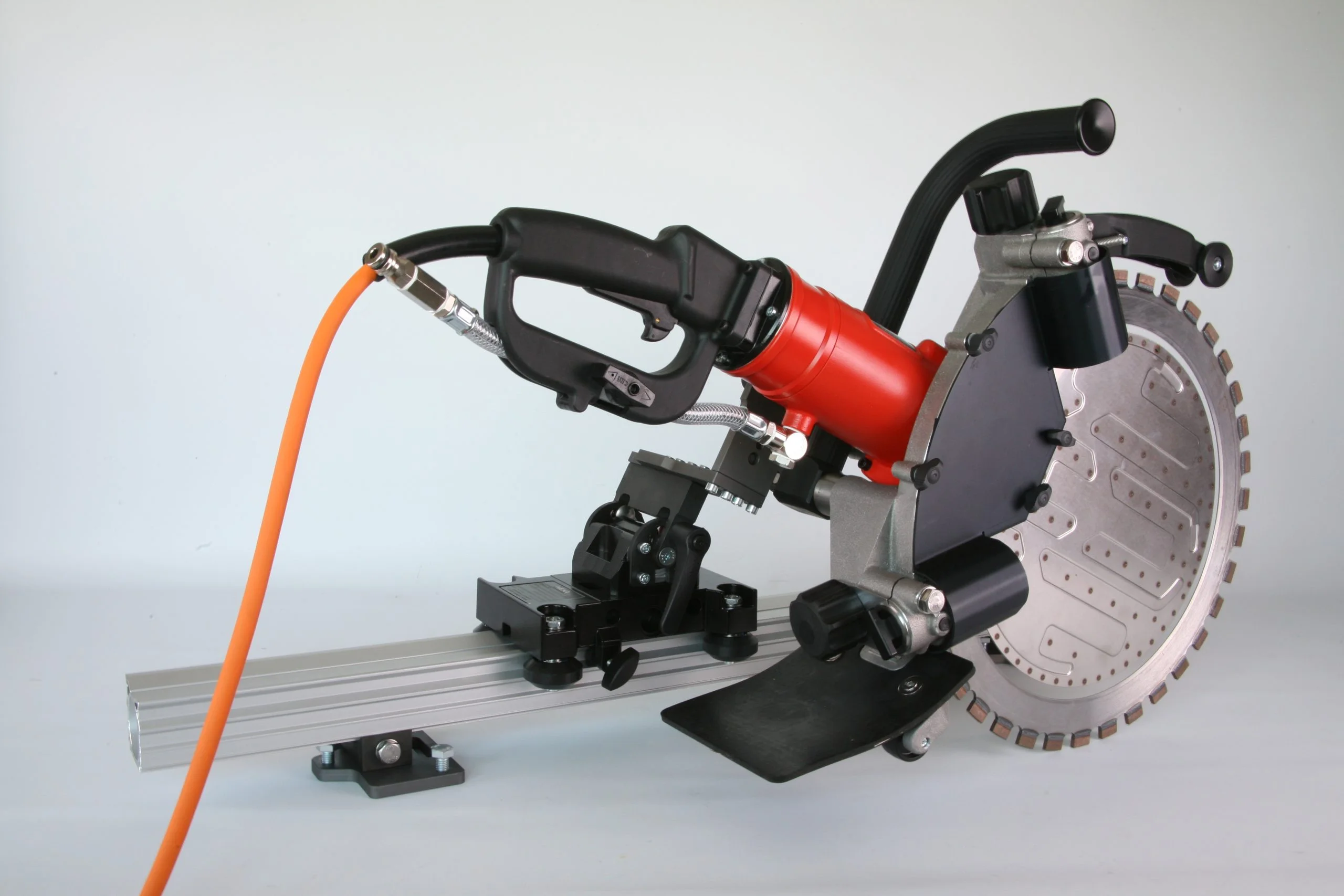

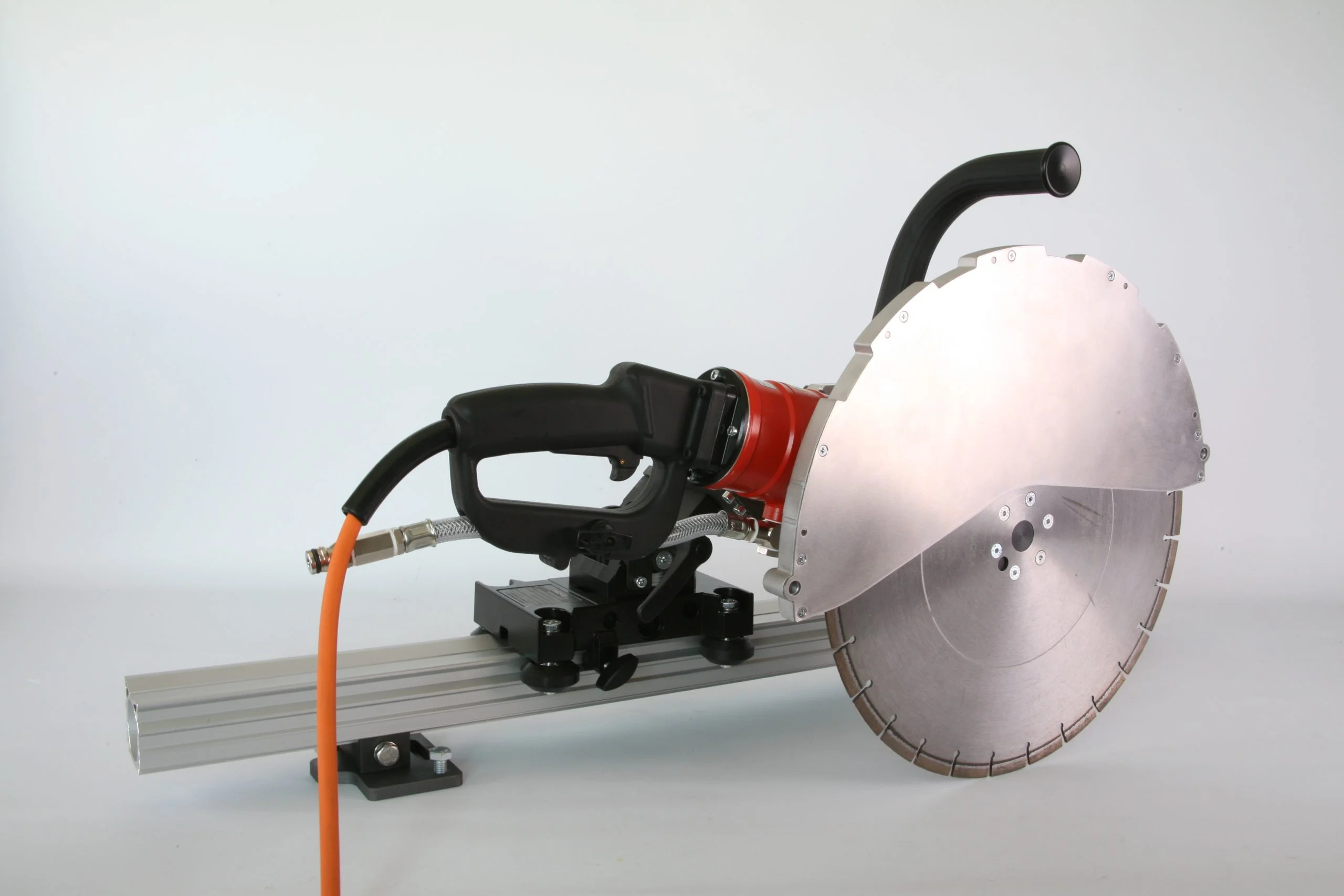

The FS40 Guide Rail is a robust and precision-engineered solution designed for accurate straight cutting in concrete, masonry, and stone. When paired with the TR40 or TS40 saws, it delivers controlled, effortless cutting with excellent operator comfort—ideal for structural openings and demanding jobsite applications

Data sheet FS40 (1)

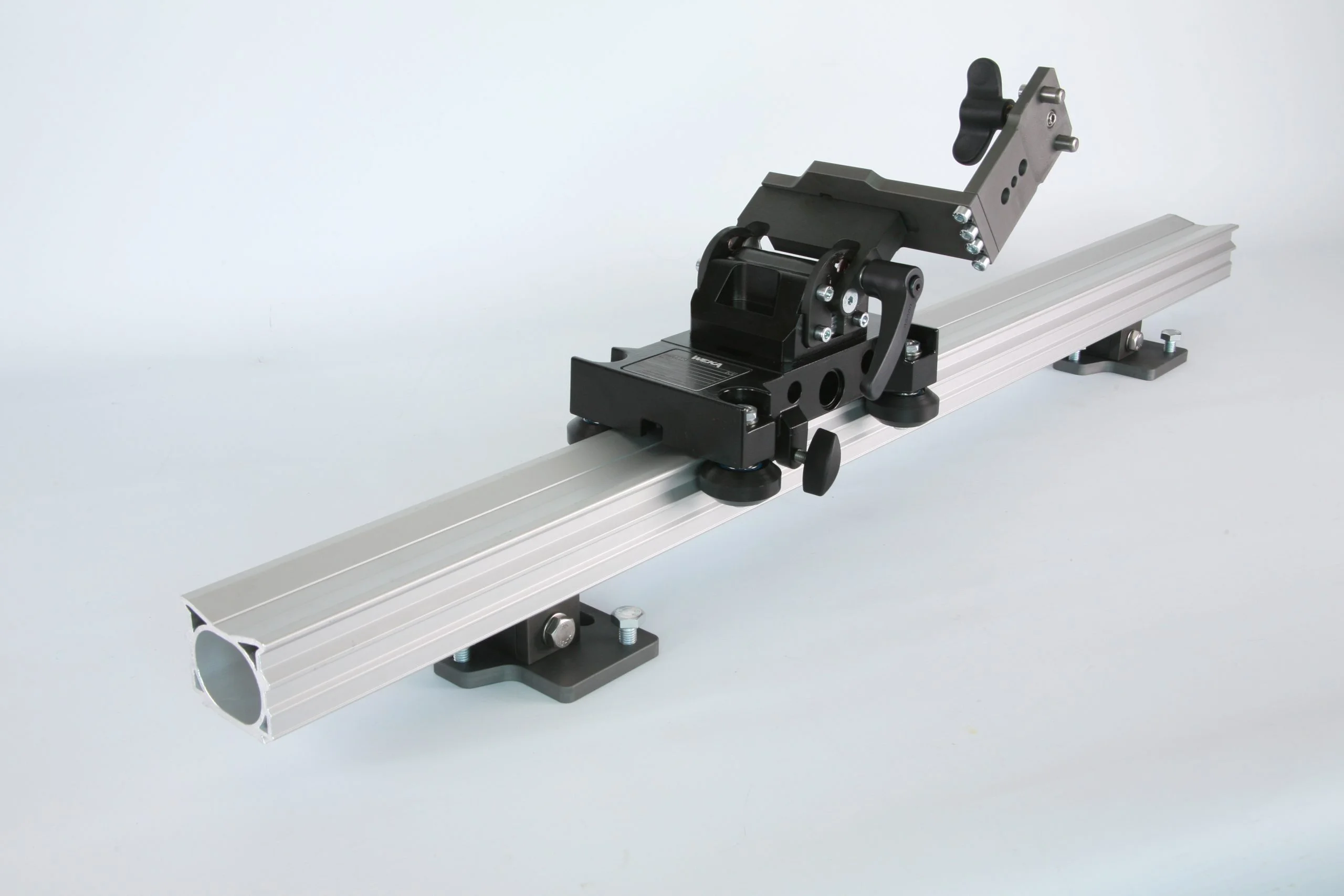

Built for durability and flexibility, the FS40 system features quick assembly, a tool-free quick-change carriage, and extendable rail options, making it suitable for both short cuts and longer continuous runs.

Key Features & Benefits

• Precision straight cuts with guided accuracy

• Cutting depth up to 300 mm (with TR40)

• Tool-free quick-change system for fast setup

• Reduced operator fatigue through stable, guided cutting

• Extendable rail system to suit various job requirements

• Quick assembly for efficient site workflow

Applications

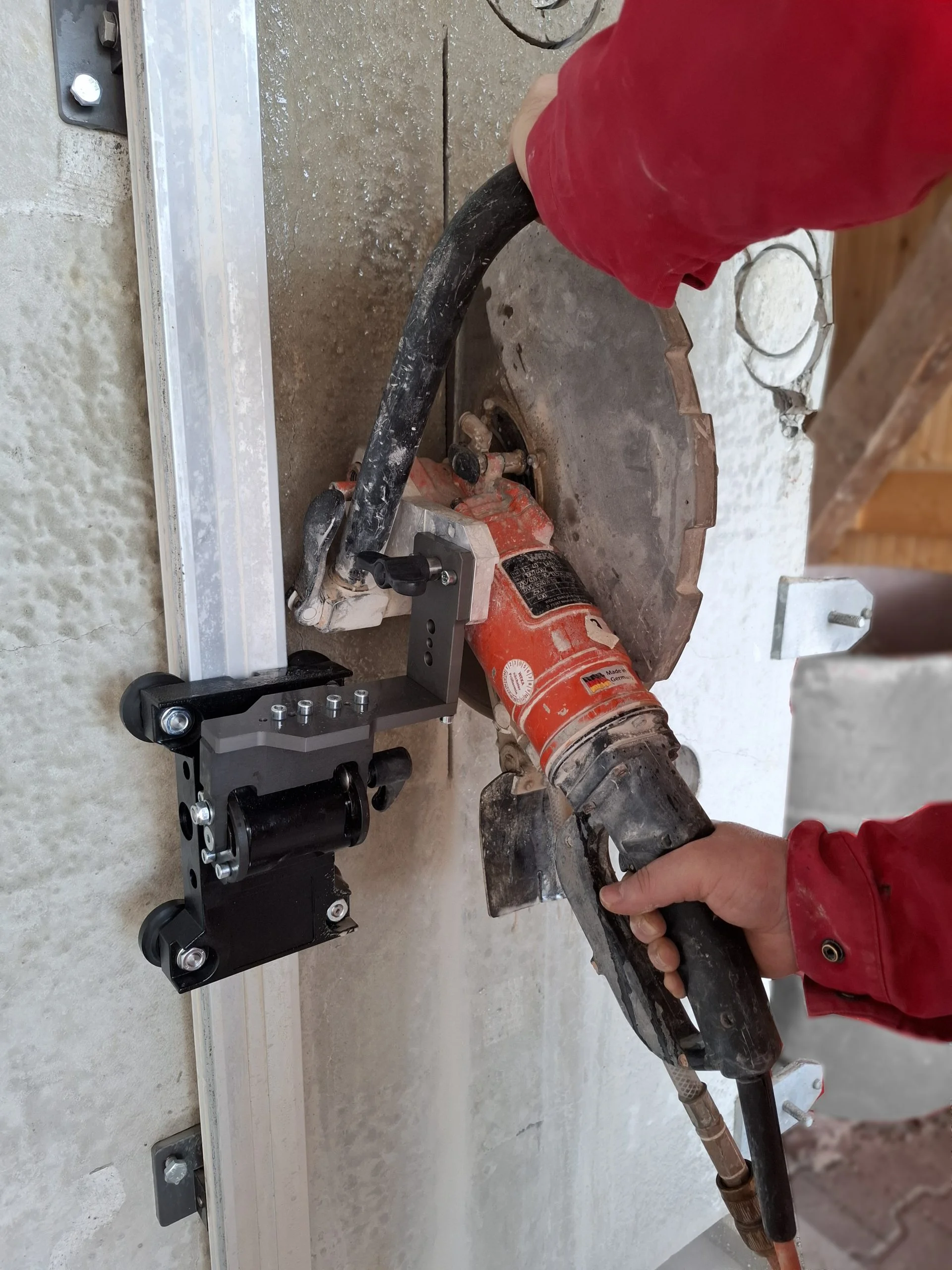

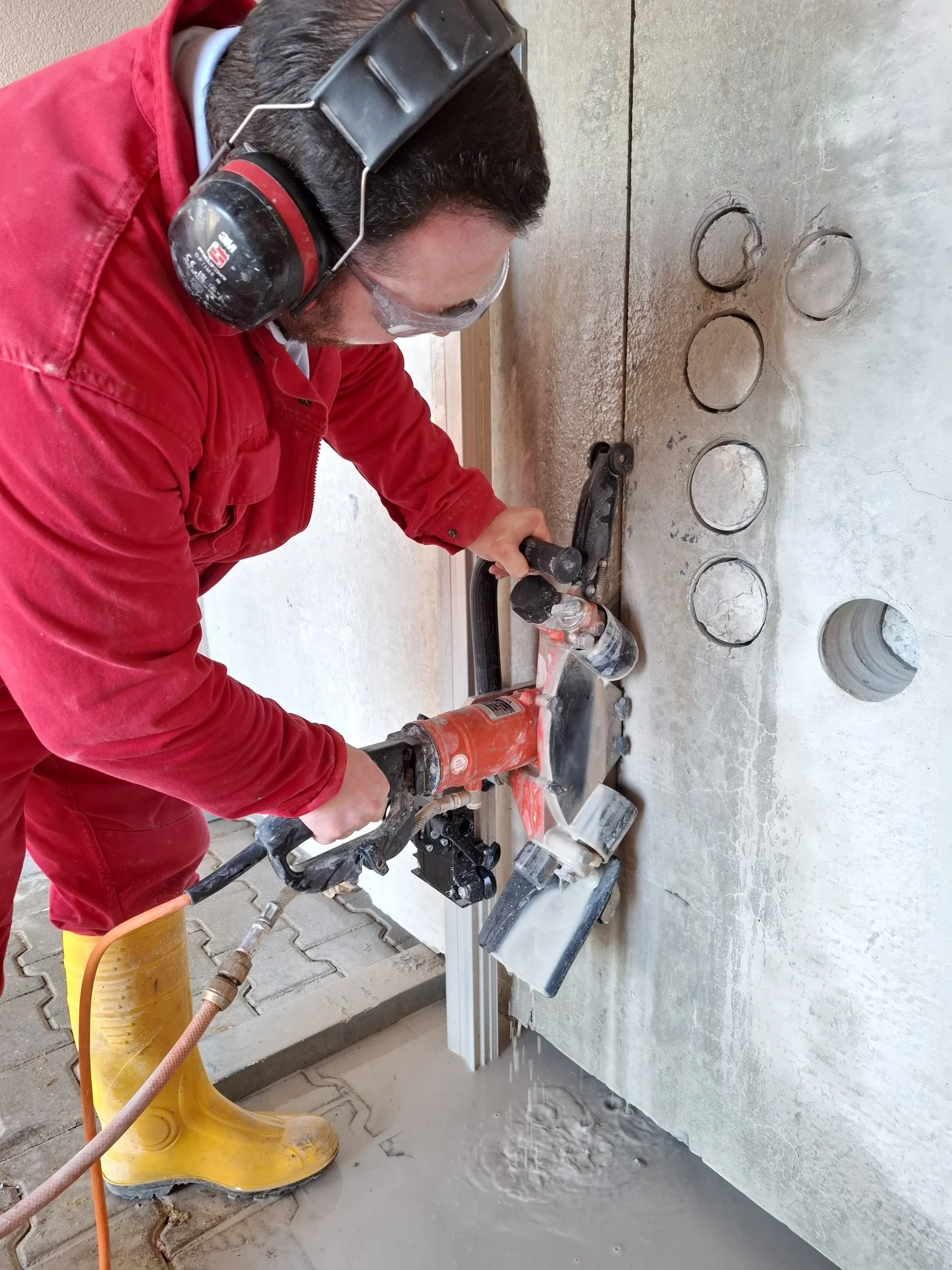

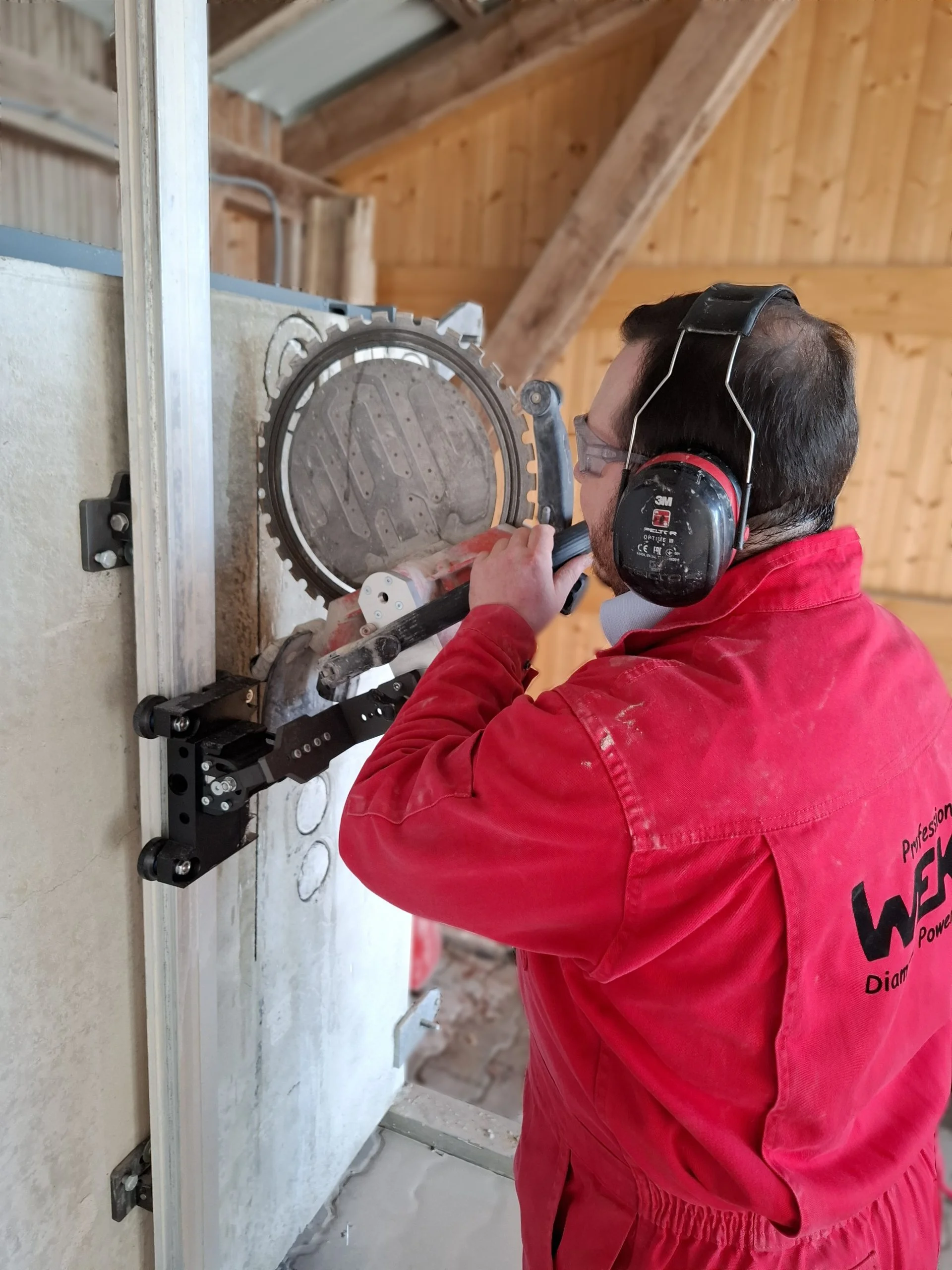

• Cutting concrete, masonry, and stone

• Creating door and window openings

• Structural modification and controlled demolition

• Use in combination with TR40 and TS40 saws

Technical Specifications

• Rail length: 2.18 m (standard) / 1.09 m (optional)

• Rail weight:

  • 2.18 m: 7.2 kg

  • 1.09 m: 3.6 kg

• Carriage weight: 4.9 kg

• Maximum cutting depth:

  • TR40: 300 mm

  • TS40: 165 mm

Scope of Delivery

• 1 × Guide rail (2.18 m)

• 2 × Fixing brackets

• 1 × Sliding carriage (complete)

Important: Adapter plate must be ordered separately to suit the respective saw model.

Optional Accessories

• Adapter plate for TS40

• Adapter plate for TR40

• Rail connector

• Additional guide rails (2.18 m or 1.09 m)

• Fixing brackets
