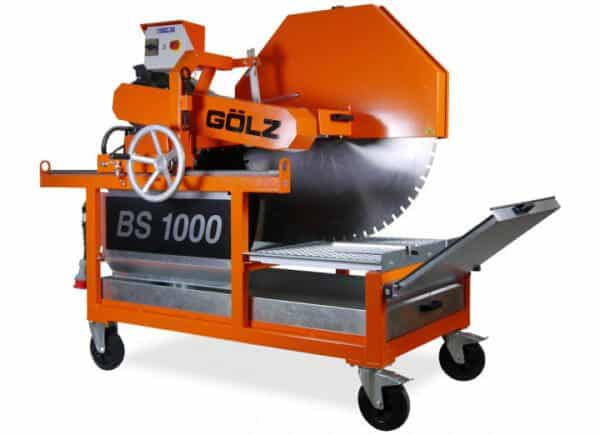

Golz Block Saw 1000mm – 3 Phase 400V – 7.5KW

Cutting length 600 mm
Blade-Ø 1.000 mm
Cutting length 420 mm

Torsion free chassis with 4 crane eyes
Cutting depth adjustable by manual lever
Sprung cutting head for cutting depth adjustment • Professional water tube
Adjustable angle stop
Cutting head with steel bearing rollers
4 transport wheels, 2 with parking break
Removable water tub, zinc coated

Specifications

Motor 3-phase, 400 V,
50 Hz, 16 A, IP 54
Power 7,5 kW (10 PS)
Max. cutting depth 420 mm
Max. blade size 1000 mm
Arbor hole 60 mm
Cutting length 600 mm
Shaft speed 990 min-1
45° miter-cut No
Water pump electric
Blade flange size ø 160 mm
Transport wheels yes
Cutting table (LxW) 610 × 840 mm
Dimensions: (LxWxH) 2000×1100×1550 mm
Weight 280 kg
