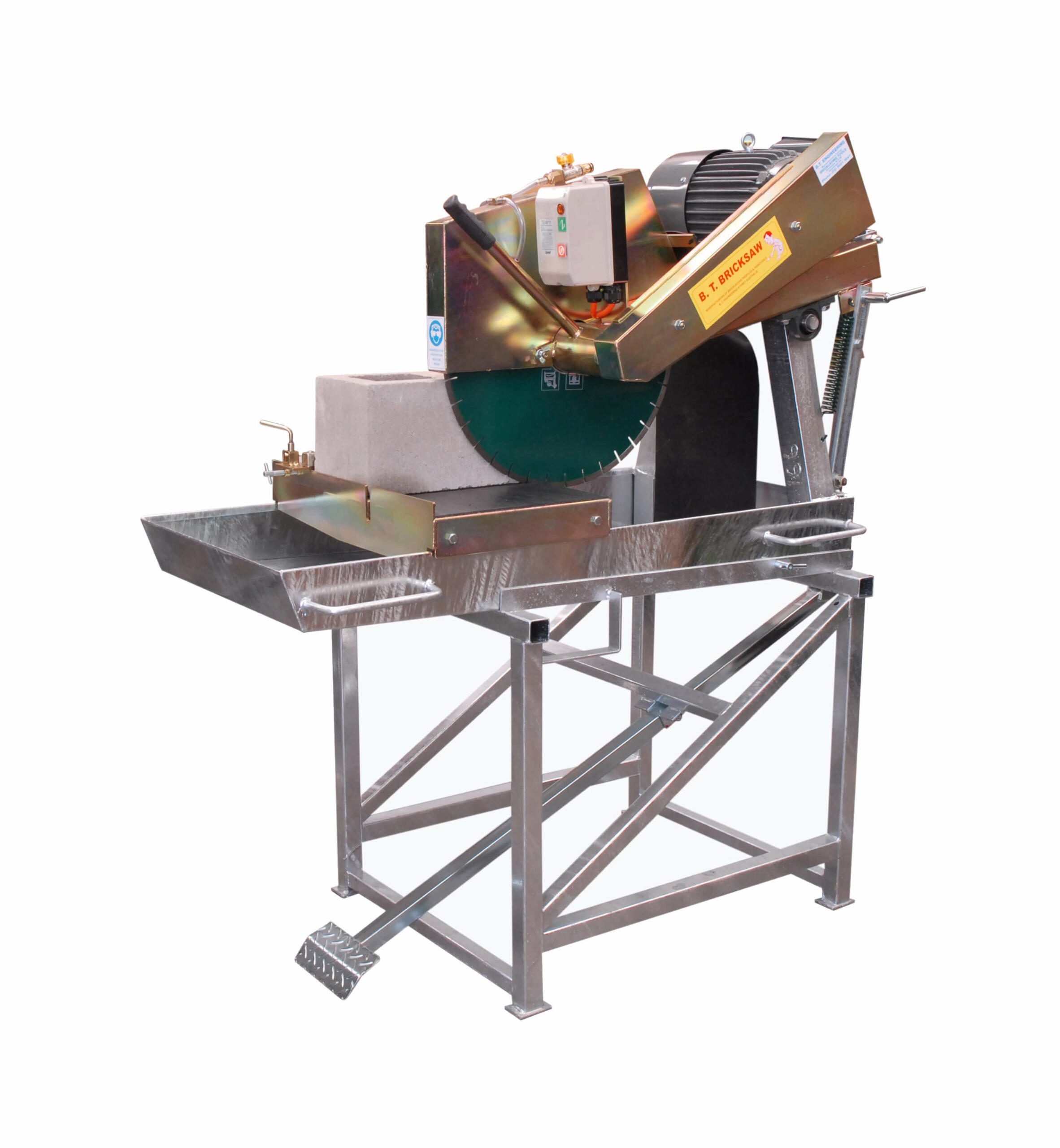

BT Block Saw 20″ – Single Phase 240V – 2.2KW

The BT Engineering electric powered Block Saw is developed, engineered and manufactured to be the most rugged, hardworking and reliable Block Saw in the world.

The 20″ diamond blade with 8″ cutting clearance allows you to breeze through concrete blocks and other masonry products in one clean cut.
The single or three phase electric motor provides the grunt you need in any location, even the most demanding work sites.
The enlarged sliding carriage provides a completely stable platform for large scale blocks, pavers or bricks to rest on while being cut.
Eliminate dust with the adjustable water supply valve.
The removable mitre guide allows you to consistently cut concrete blocks, pavers and bricks to any length or shape you require.
The detachable base provides neat transportation options on any ute, truck or van.
The galvanized stand and base combined with the zinc electroplated saw arm ensures the BT Block Saw repels rust and corrosion throughout many years of operation.
Both electric Block Saws utilise a 15amp plug.
Single phase is best for concrete blocks and other similar material.

Three phase best for concrete blocks and harder materials such as stone, rock etc.

Specifications:

Choice of 4kw 3 phase electric motor or 2.2kw 240 volt single phase electric motor
Suits 20” blade
Depth of cut: 200mm
Length of cut: 540mm
Dimensions

Length: 1300mm
Width: 700mm
Height: 1550mm
Weight: 143kg
Carriage Dimensions

Length: 360mm
Width: 570mm
Blade not included
