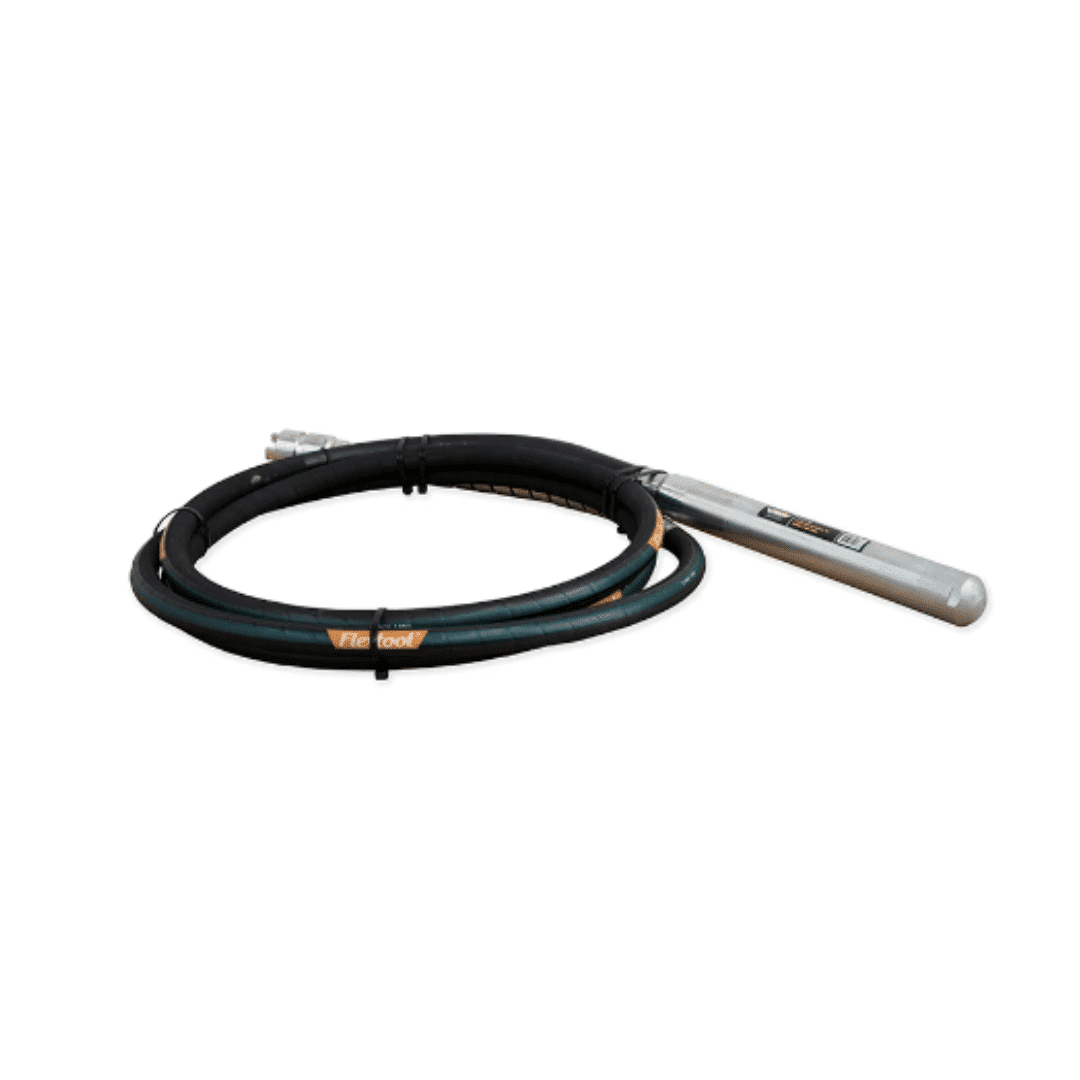

Flextool Flexshaft Concrete Vibrator FVP30-6 – Steel Tip

Australias original series of immersion concrete vibrators produce high-frequency vibration, which allows for the efficient compaction of all types of concrete mixes. The Flextool Flexshaft Concrete Vibrator FVP Steel Tip comes in a range of seven different flexshaft length and vibrator head diameter combinations, making it an ideal choice for a wide variety of concreting projects. Operator safety and comfort are optimised with the rubber support sleeve and vibration counter spring. The FVP series offers triple bearing technology and double oil seal protection for optimum performance and longer service life.
The Flextool Flexshaft Concrete Vibrator FVP Series is also available with a rubber tip vibrating head for off-the-form projects.

– Heat-treated nose cap and rotor reduces wear and tear from abrasive concrete aggregates
– Heavy-duty double row self-aligning bearing extends the concrete vibrators service life
– Vibration counter spring reduces vibration transfer to the operator, improving safety and comfort in the process
– Two sealed bearings for isolation of load transfer, resulting in improved durability
– Heavy rotor for high vibration amplitude ensures great efficiency
– Double oil seal protection reduces the need for ongoing maintenance
– Flexshaft rubber support sleeve enables easy clean-up and reduces heat transfer to the operator, which results in improved safety and comfort, as well as eliminating the hook-up on tie wire and reinforcing steel
– Also available with rubber tip

Specifications:
– Model: FVP30-6
– Nose cap type: Steel
– Vibrator head diameter: 28 mm
– Flexshaft length: 6 m
– Operating weight: 14 kg
– Shaft inner core diameter: 8 mm
– Shaft casing diameter: 28 mm
– Vibration frequency: 12,600 vpm
– Vibration frequency: 210 Hz
– Amplitude in air: 1.4 mm
