WEKA HF Wall Saw Package

WEKA WS76 Entry-Level Wall Saw Package — Cut to 410mm

A complete, ready-to-cut wall saw system. Everything you need, nothing you don’t.

For contractors looking to enter the wall saw market without compromising on quality or capability, this package delivers a professional-grade, fully self-contained cutting system at an accessible price point. Built around the WEKA WS76 FRIDA — one of the lightest and most capable wall saws in its class — and paired with a compact 23kVA mobile generator, this package can be deployed to any cut location without reliance on site power. With 20 metres of 3-phase cable included, the generator doesn’t need to be right next to the cut.

Everything required to set up the system, make cuts to full depth, and move between jobs is included in this package.

Why Choose a Wall Saw Over Handheld Cutting?

A wall saw mounted to a track is in a different category to handheld cutting for deep concrete work:

• Cut to 410mm depth — well beyond the practical reach of any handheld saw
• Operator safety — the saw does the work on the track; the operator controls it remotely, keeping hands and body away from the blade
• Consistent, straight cuts — the track guarantees precision across the full length of the cut
• Significantly less physical effort — the machine feeds itself; no operator fatigue from fighting a heavy saw through hard concrete
• Professional results — cleaner openings, less breakout, less rework

What’s in the Package

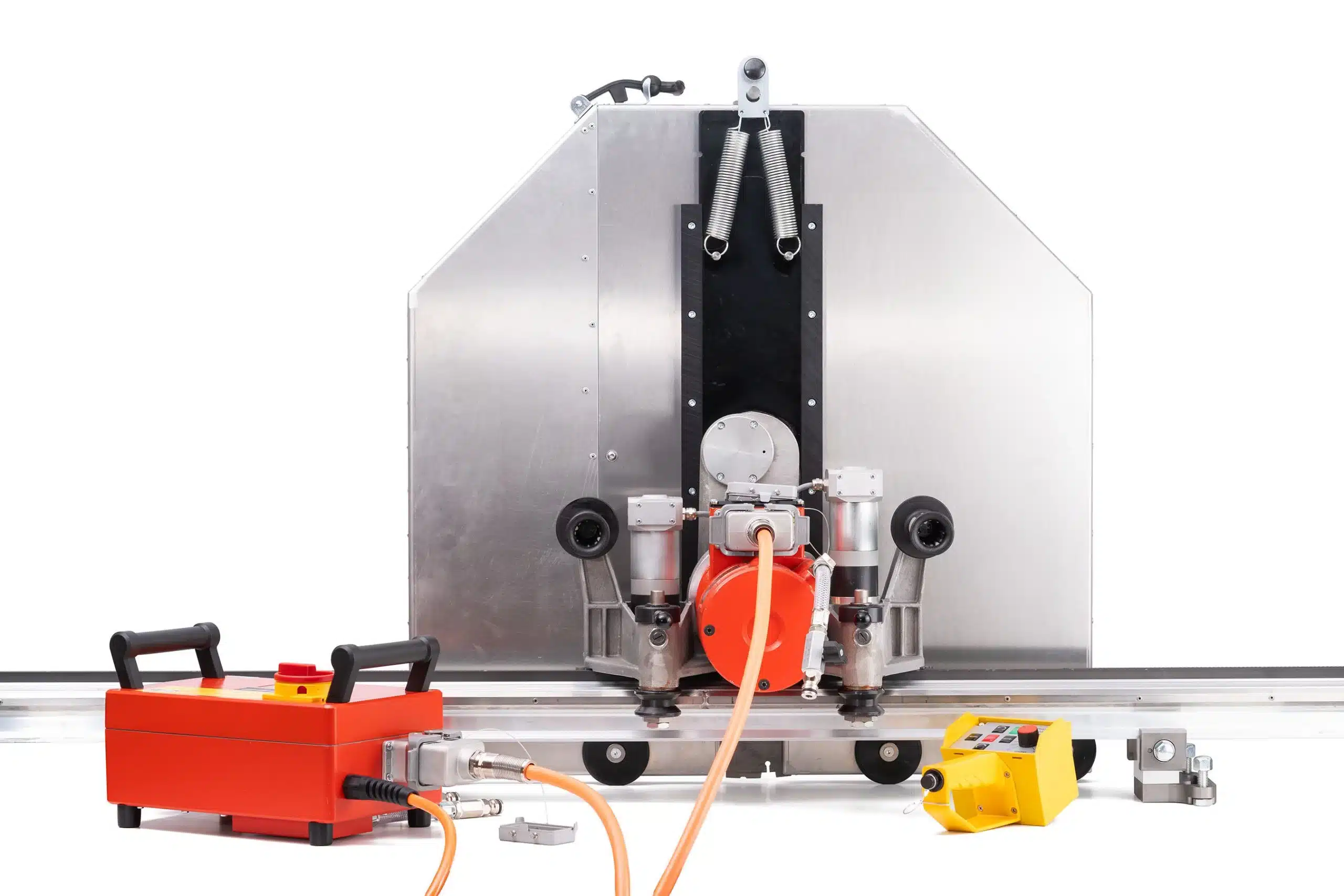

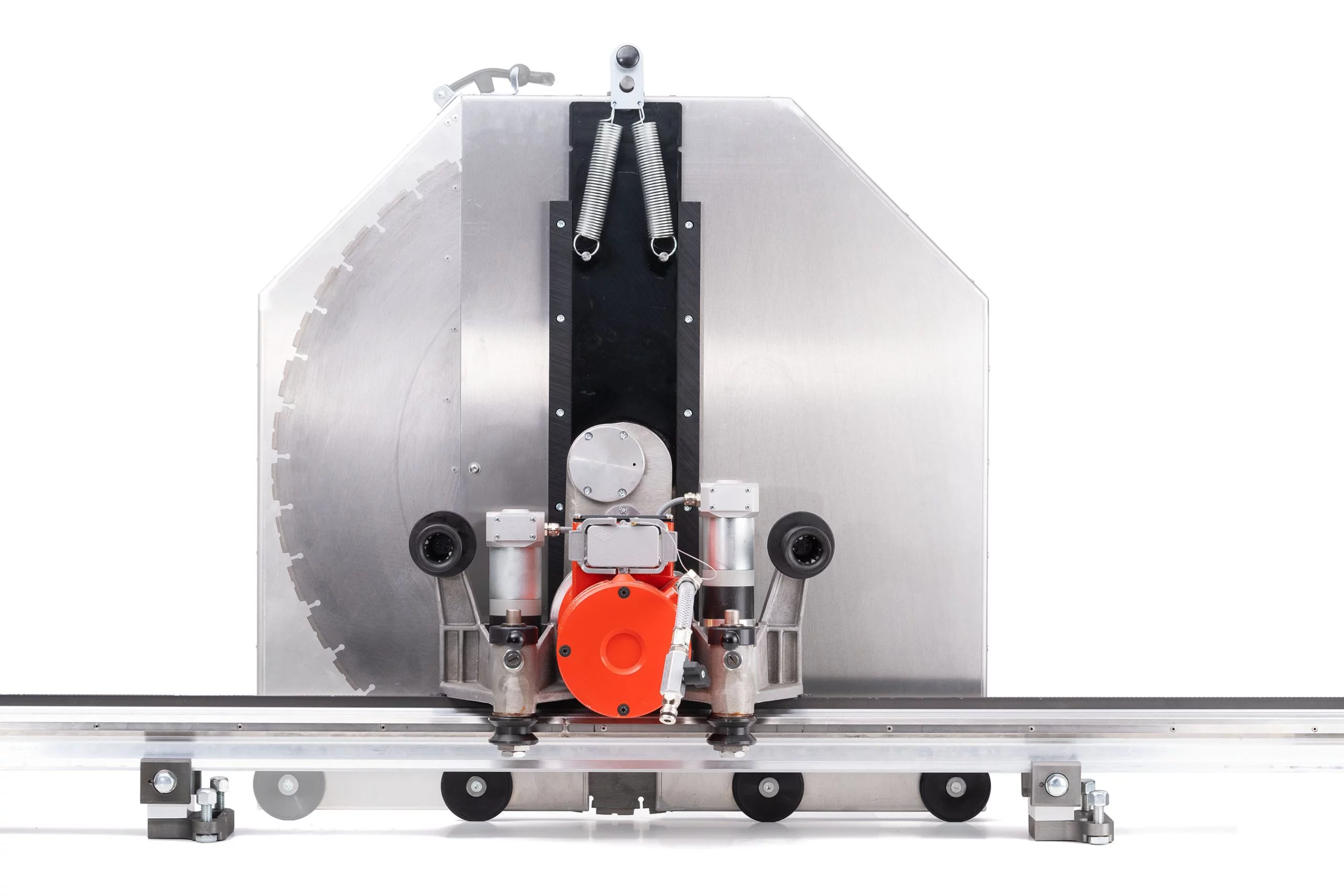

WEKA WS76 FRIDA HF Diamond Wall Saw – 14kW

• Cuts to 320mm depth with a 750mm blade and 410mm depth with a 930mm blade

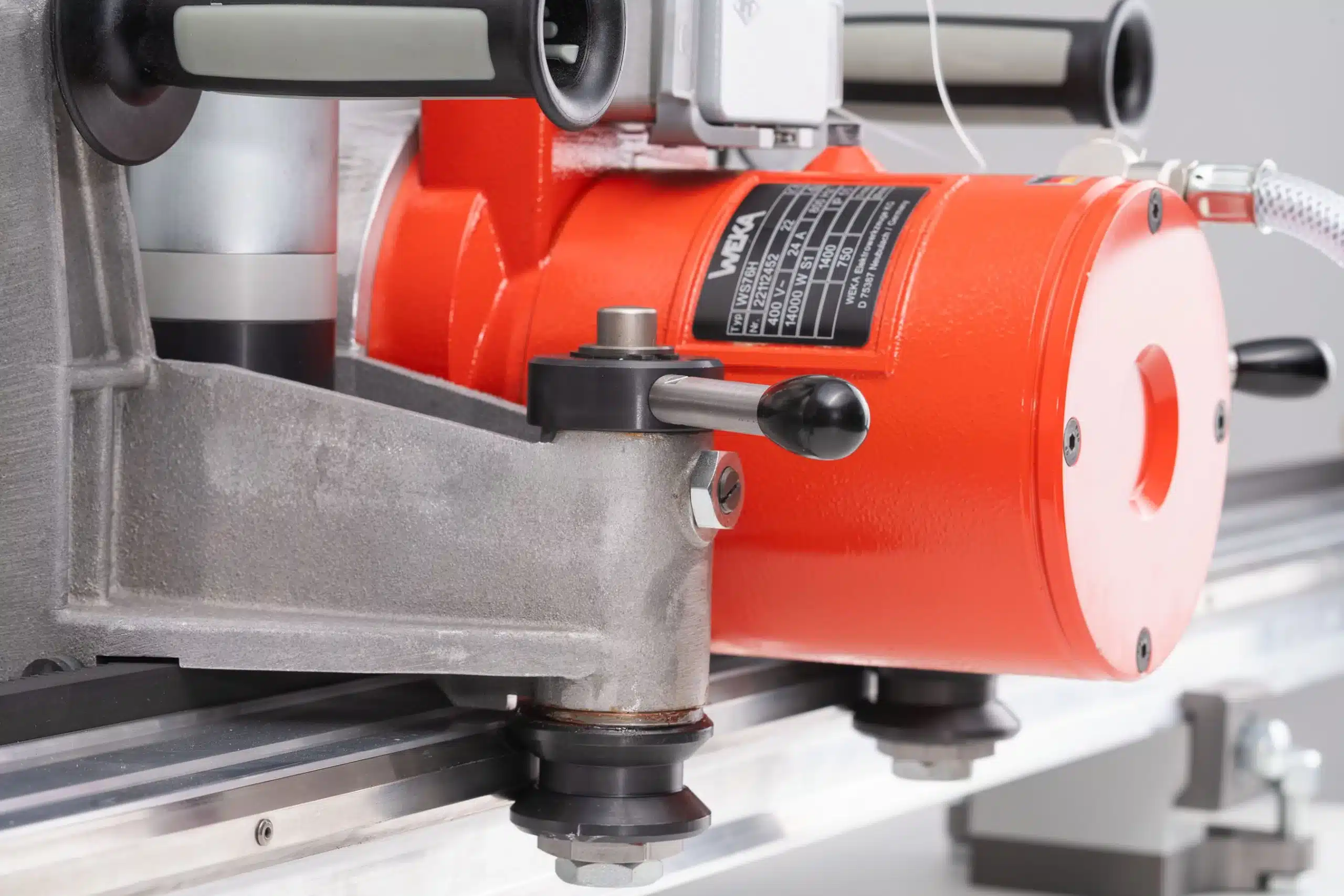

• 11kW output from a 14kW water-cooled high-frequency motor
• Variable spindle speed: 1,100–1,700 rpm
• High feed force of 2,000N for both longitudinal and plunge feeds
• Longitudinal feed speed: 0–3 m/min; plunge feed: 0–1 rpm
• Oil-bath lubricated gearbox with overload clutch for reliable torque transmission
• Torsion-resistant guide rail with low-wear stainless steel prism guide
• Drive motor can be detached from the machine carrier for easy transport
• IP55 splash-water protection rated
• Wireless radio remote control included
• Weight: 28.5kg — one of the lightest wall saws in this power class

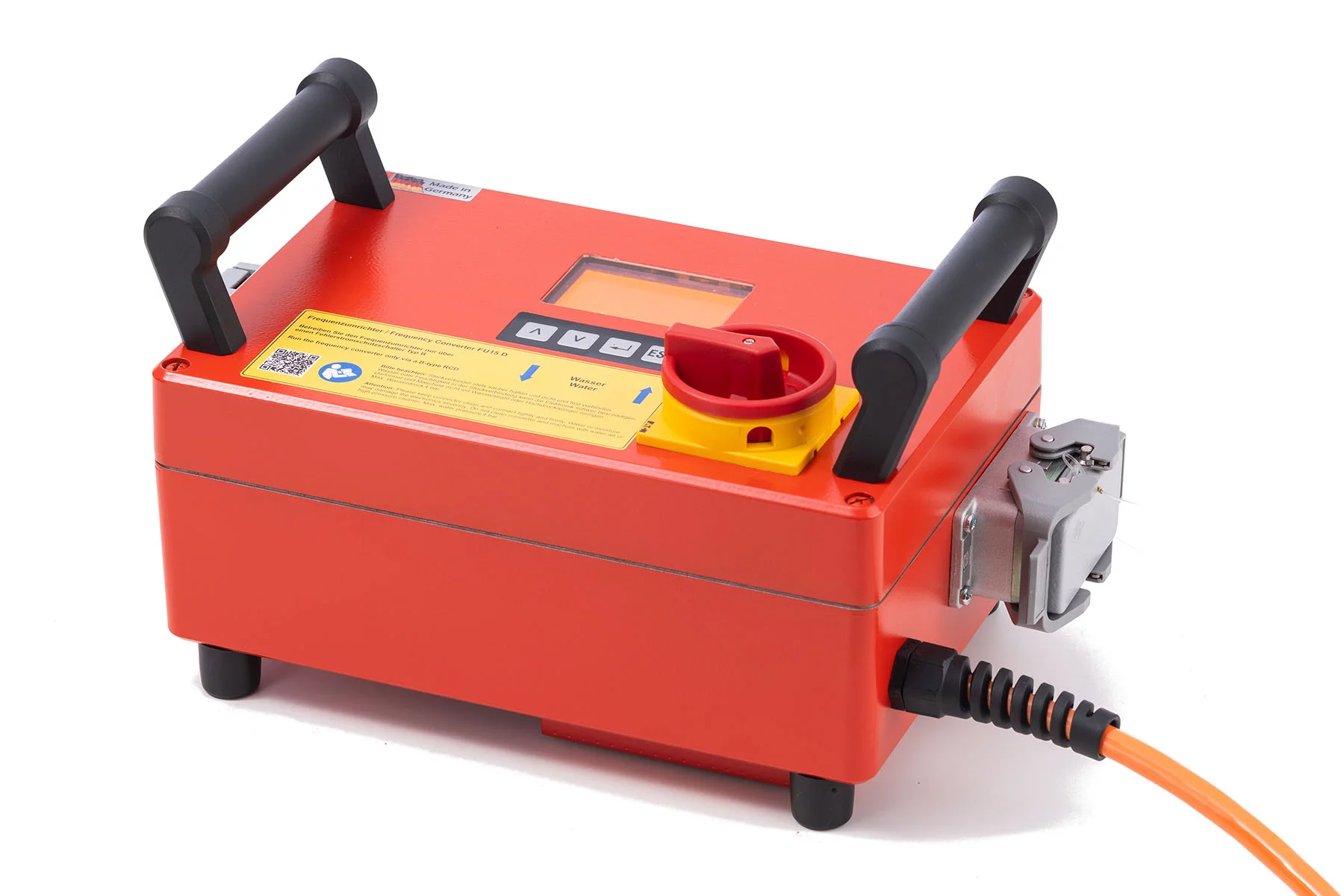

WEKA FU15D Frequency Converter – 15kW

• Purpose-matched converter for the WS76H with Bluetooth interface and integrated display
• 400V three-phase input; 250–950Hz output range
• Includes feed control for the WS76H
• IP54-rated for site use

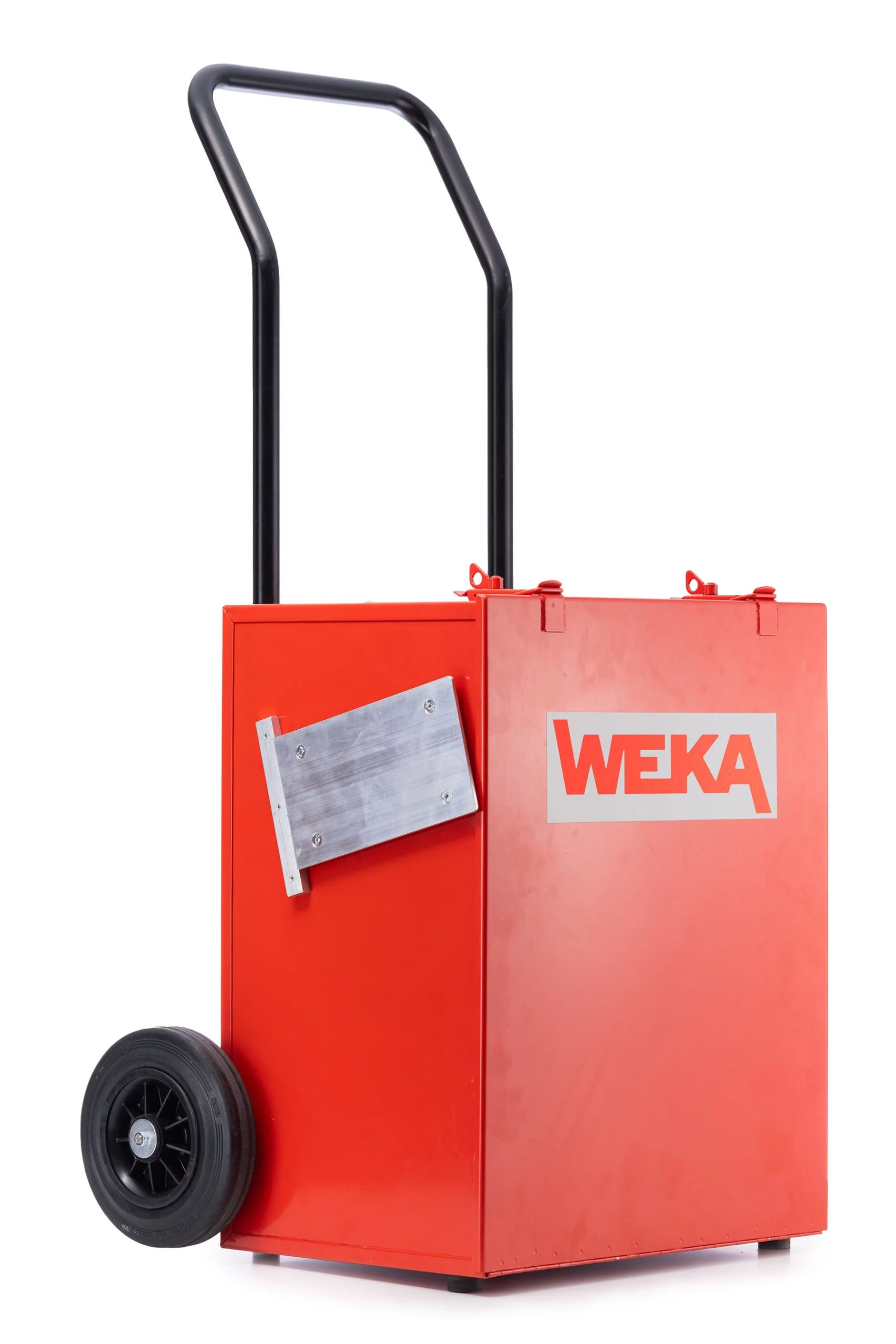

WEKA WS7570 Trolley

• Dedicated transport trolley for the wall saw system
• Makes moving the saw between cut locations on site quick and easy

Track System

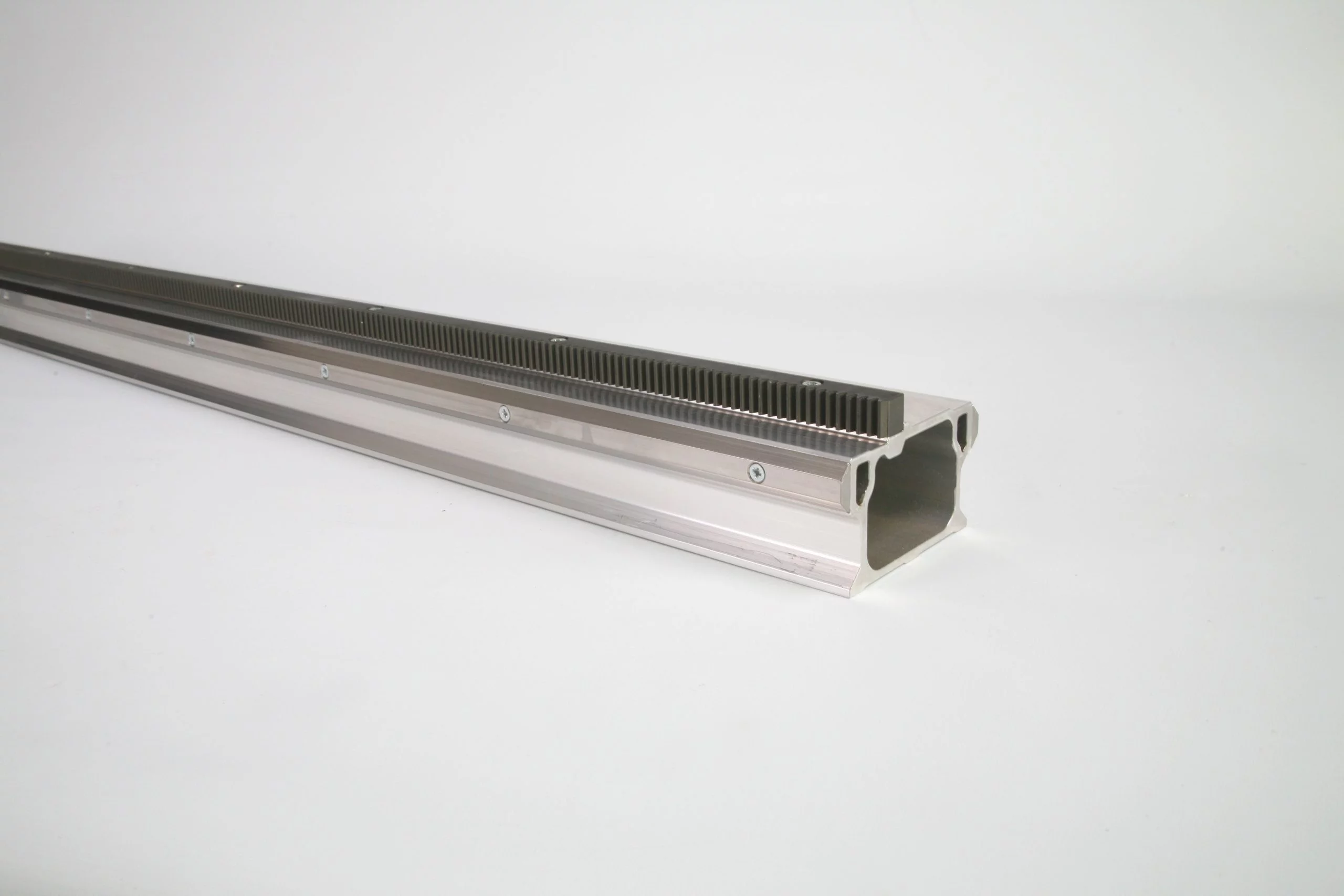

• 2 × Guide rail 2.18m (WS7542)
• 1 × Guide rail 1.09m (WS7544)

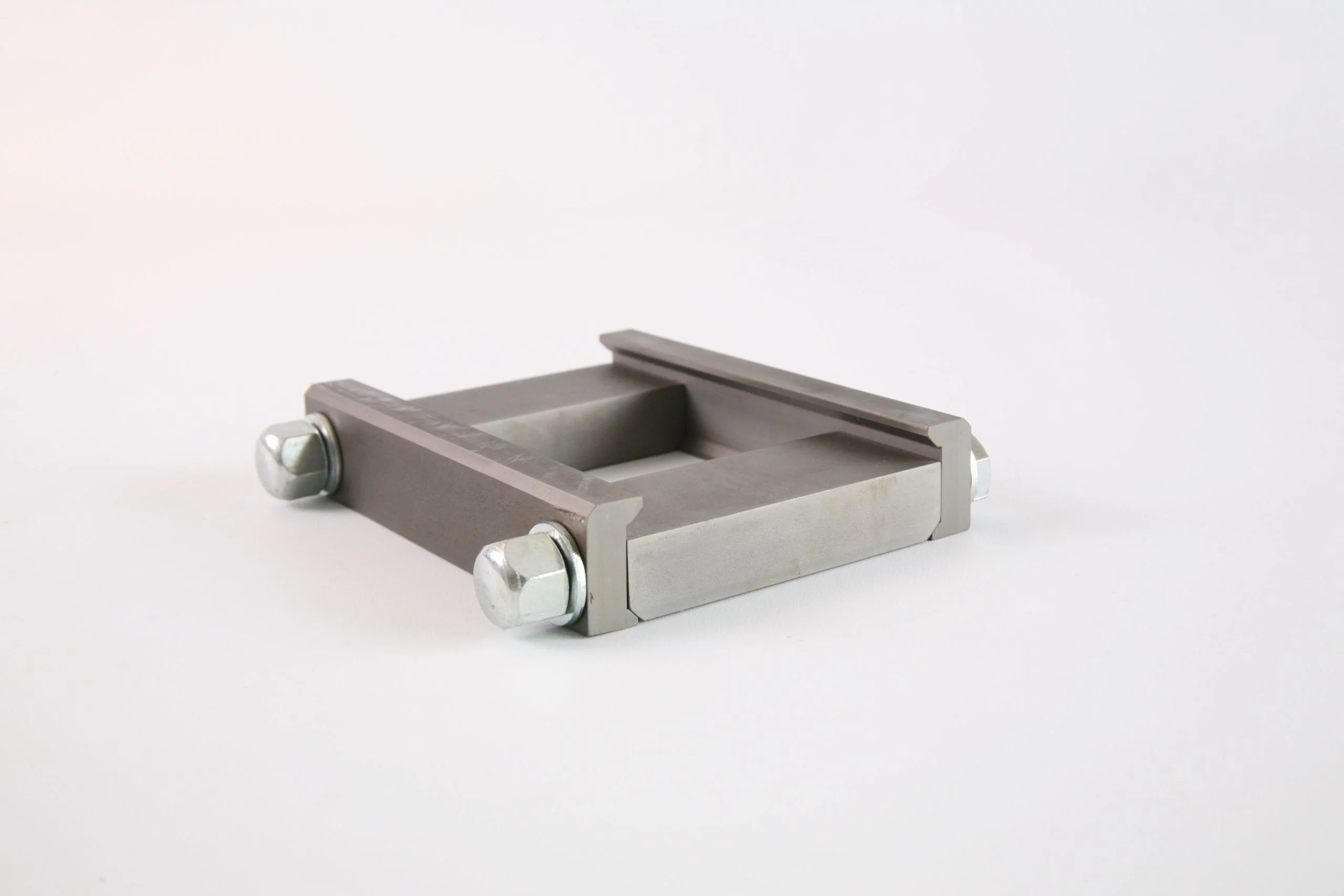

• 2 × Connecting bridge / track joiners (WS7550)

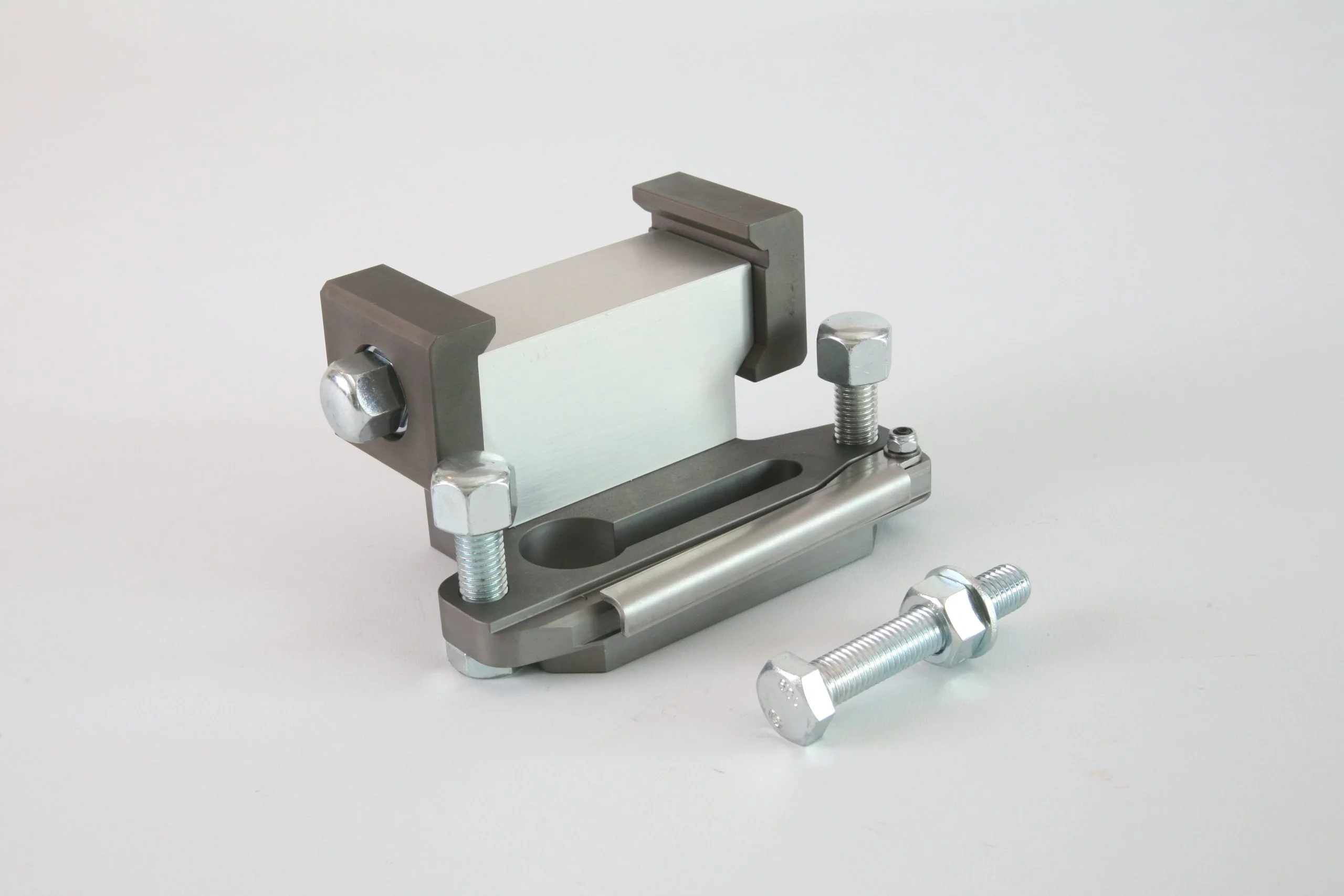

• 6 × Fixing brackets (WS7546)

Blade Guards

• 1 × Standard blade guard with visor for 750mm blade (WS7532)
• 1 × Blade guard with visor for 930mm blade (WS7532.95)

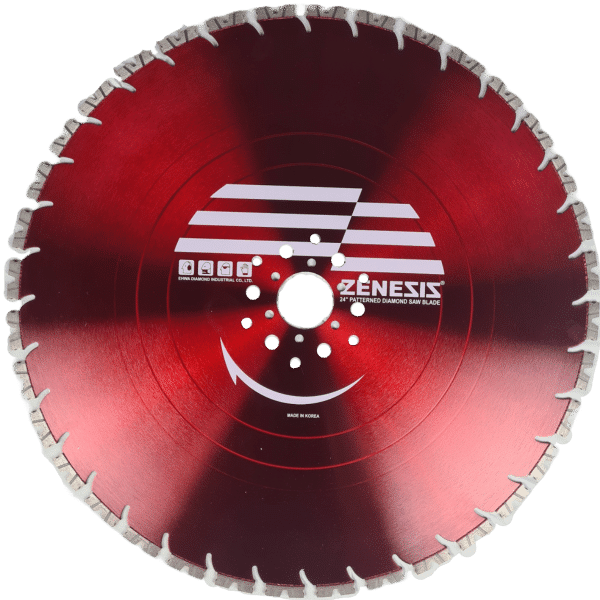

Diamond Blades — Zenesis Wall Saw Blades

• 1 × 750mm Zenesis Wall Saw Blade
• 1 × 930mm Zenesis Wall Saw Blade
• Engineered with EHWA Zenesis 3D diamond positioning technology for maximum performance in reinforced concrete
• Formulated specifically for the concrete encountered on Australian job sites
• Suitable for reinforced concrete, masonry, brick, and abrasive materials

20m 3-Phase Power Cable

• Connects the generator to the frequency converter
• 20m length gives flexibility in positioning the generator away from the cut area

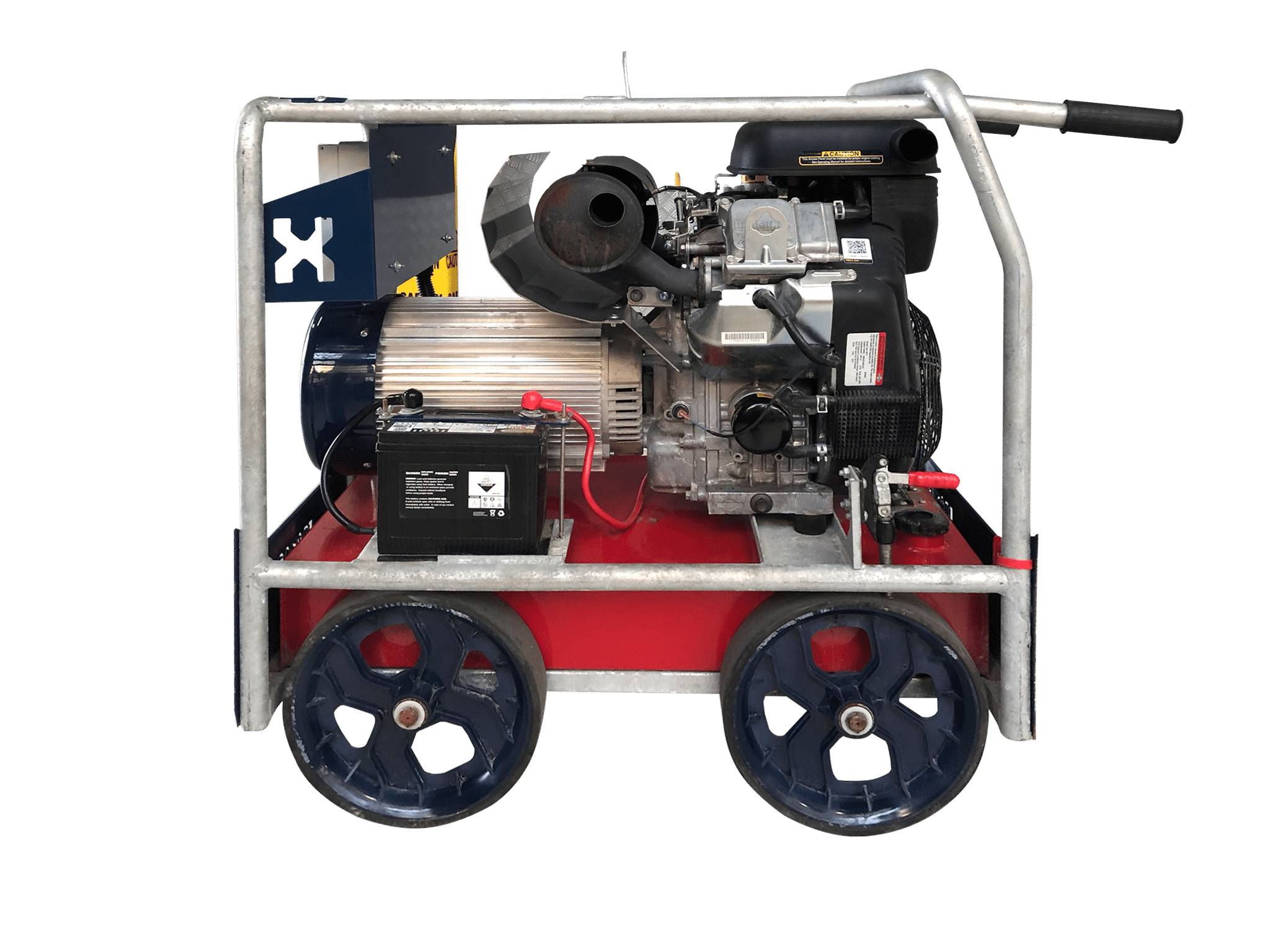

Makinex 23kVA Petrol Generator – 415V

• 23kVA / 18kW rated output; 415V three-phase
• Vanguard EFI 37hp twin-cylinder petrol engine; key start
• Permanent-magnet brushless alternator for clean, stable 415V three-phase power
• Compact enough to fit through a standard doorway and into an equipment trailer — eliminates the need for large skid or towable generators on site
• 50L fuel tank; 5.6L/h consumption at 50% load
• 32A three-phase and 15A single-phase outlets, both RCBO protected
• Dimensions: 1,105mm × 632mm × 1,024mm; Weight: 240kg

Complete Package Contents Summary

• ✔ WEKA WS76 FRIDA HF Wall Saw 14kW
• ✔ WEKA FU15D Frequency Converter 15kW with display
• ✔ WEKA WS7570 Wall Saw Trolley
• ✔ 2 × 2.18m Guide Rail
• ✔ 1 × 1.09m Guide Rail
• ✔ 2 × Track Connecting Bridges (Joiners)
• ✔ 6 × Fixing Brackets
• ✔ 750mm Blade Guard
• ✔ 930mm Blade Guard
• ✔ 1 × 750mm Zenesis Wall Saw Blade
• ✔ 1 × 930mm Zenesis Wall Saw Blade
• ✔ 20m 3-Phase Power Cable
• ✔ Makinex 23kVA Petrol Generator 415V

Ideal Applications

• Door, window, and service penetrations in reinforced concrete walls
• Structural openings for renovation and remediation works
• Controlled demolition cuts in concrete panels and load-bearing walls
• Any application requiring clean, straight cuts in concrete or masonry beyond the depth capacity of handheld saws
• Remote or off-grid job sites where 3-phase mains power is unavailable
