WEKA HF Rail Package

WEKA High-Frequency Rail Saw Package — Cut to 300mm

The safer, faster, and less fatiguing way to cut concrete and masonry to 300mm depth.

Cutting deep into reinforced concrete freehand is physically demanding, difficult to control, and carries real operator risk. This package solves all of that. By combining two WEKA high-frequency saws, a shared intelligent converter, a precision guide rail system, and three purpose-matched Zenesis diamond blades into one complete kit, you have everything you need to cut confidently and accurately to 300mm — without the strain or guesswork of freehand operation.

Why a Rail System Changes Everything

When cutting to depths of 150mm or more, a guided rail system is not just a convenience — it’s a meaningful safety and productivity upgrade:

• Straighter cuts, first time — the rail locks the saw to a fixed path, eliminating blade wander and deviation that leads to costly rework
• Less kickback risk — a guided saw is far less likely to bind or kick, reducing the most common cause of serious hand saw injuries
• Lower operator fatigue — the carriage bears the weight and lateral forces of the cut, allowing the operator to guide rather than fight the machine
• Faster cutting rates — consistent blade engagement with the material means the saw cuts more efficiently with less wasted effort
• Repeatable results — set the rail once and make identical cuts across multiple openings, ideal for window and door penetration work at scale

What’s in the Package

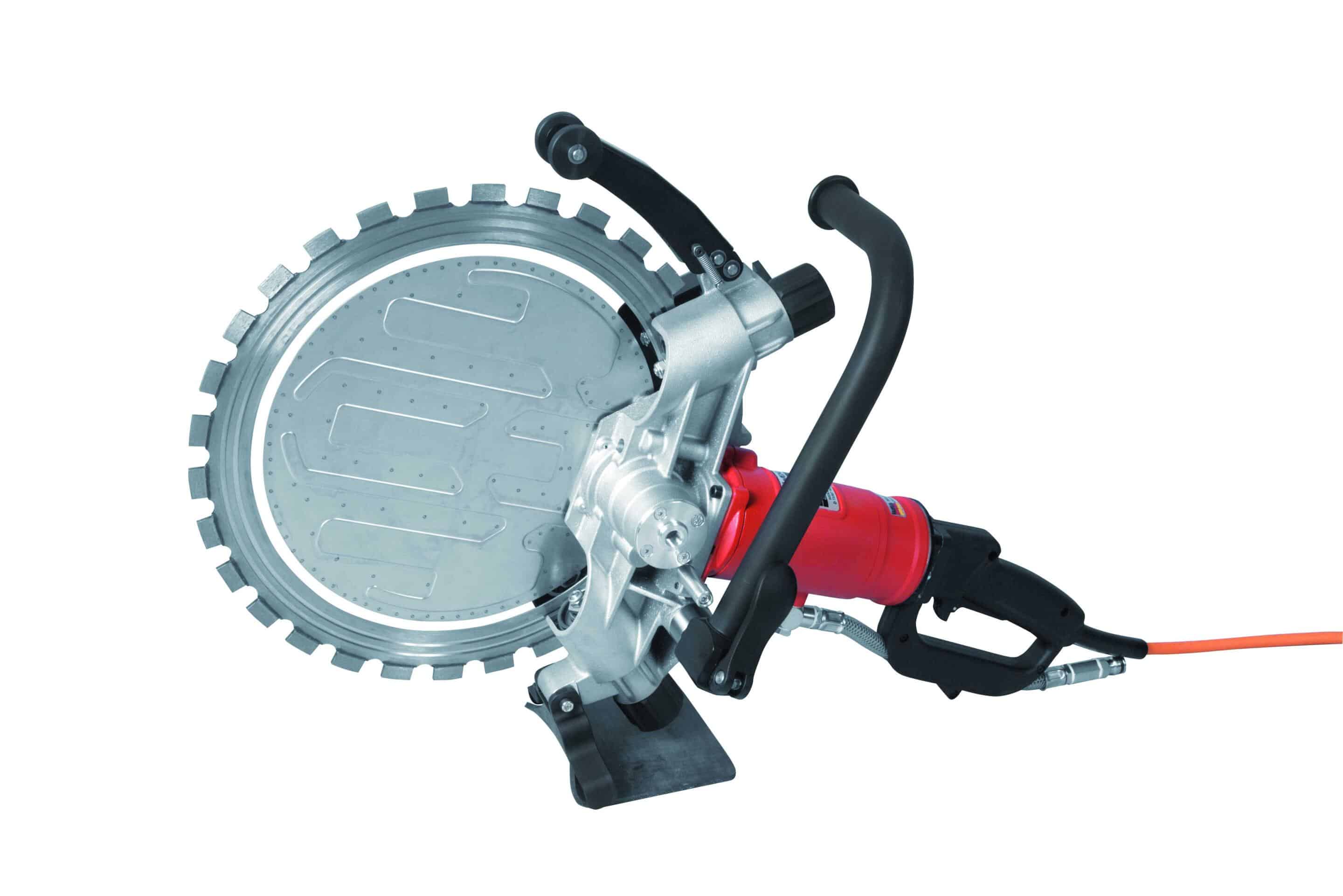

WEKA TR40 Ring Saw 16″ – 6.5kW High Frequency

• Cuts to 300mm depth — the deepest capacity available in a handheld ring saw
• Water-cooled high-frequency motor for continuous-duty reliability
• Oil-bath lubricated gearbox for smooth, consistent torque delivery
• Adjustable ergonomic handle for operator comfort during extended cuts
• IP55 splash-water protection rated for wet cutting conditions
• Dual-voltage operation: 230V or 400V

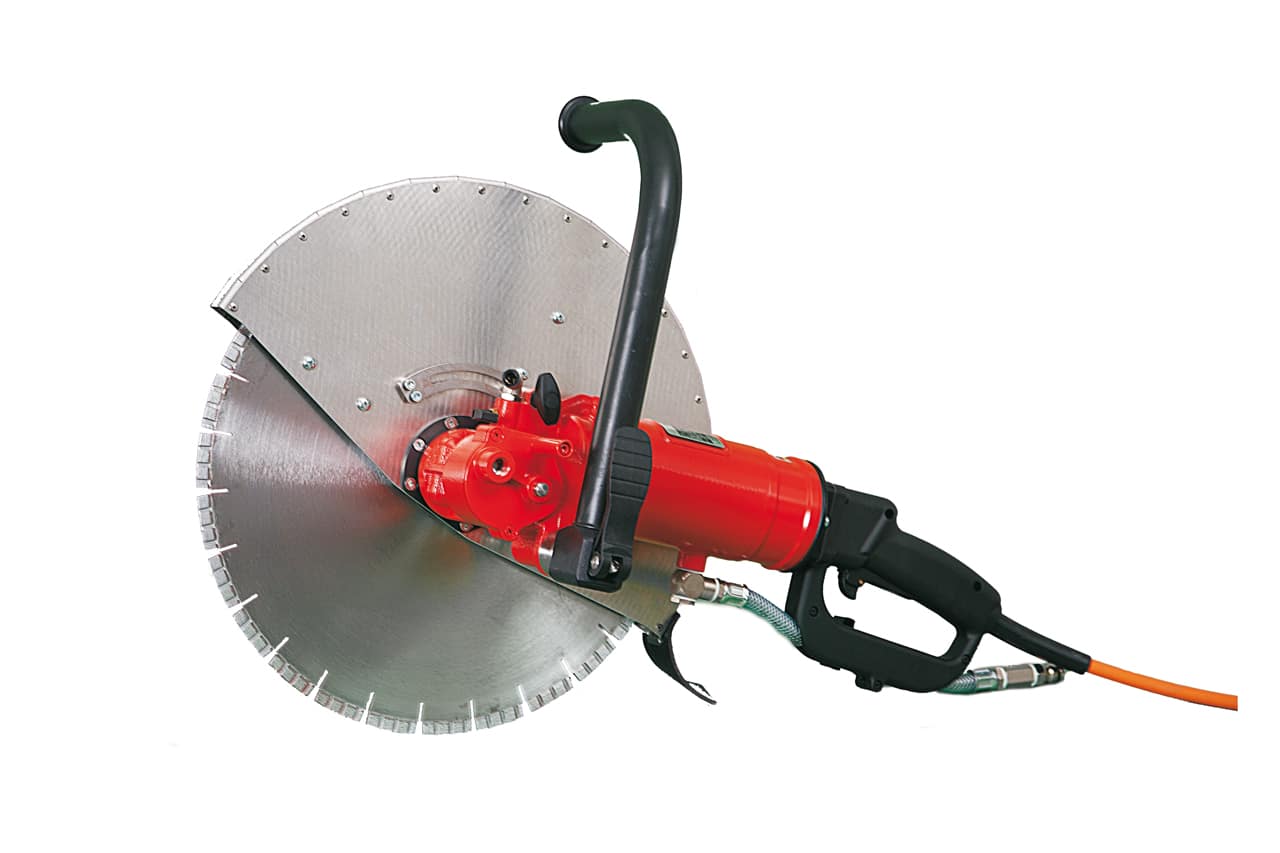

WEKA TS40 Hand Saw 16″ – 6.5kW High Frequency

• Cuts to 165mm depth — ideal for slab work, horizontal cuts, and access-restricted applications
• Water-cooled 6.5kW motor for high output in a compact handheld format
• Compatible with the FS40 guide rail via the included adapter plate
• Optional flush-cut flange and guard available for edge and corner work
• Dual-voltage operation: 230V or 400V

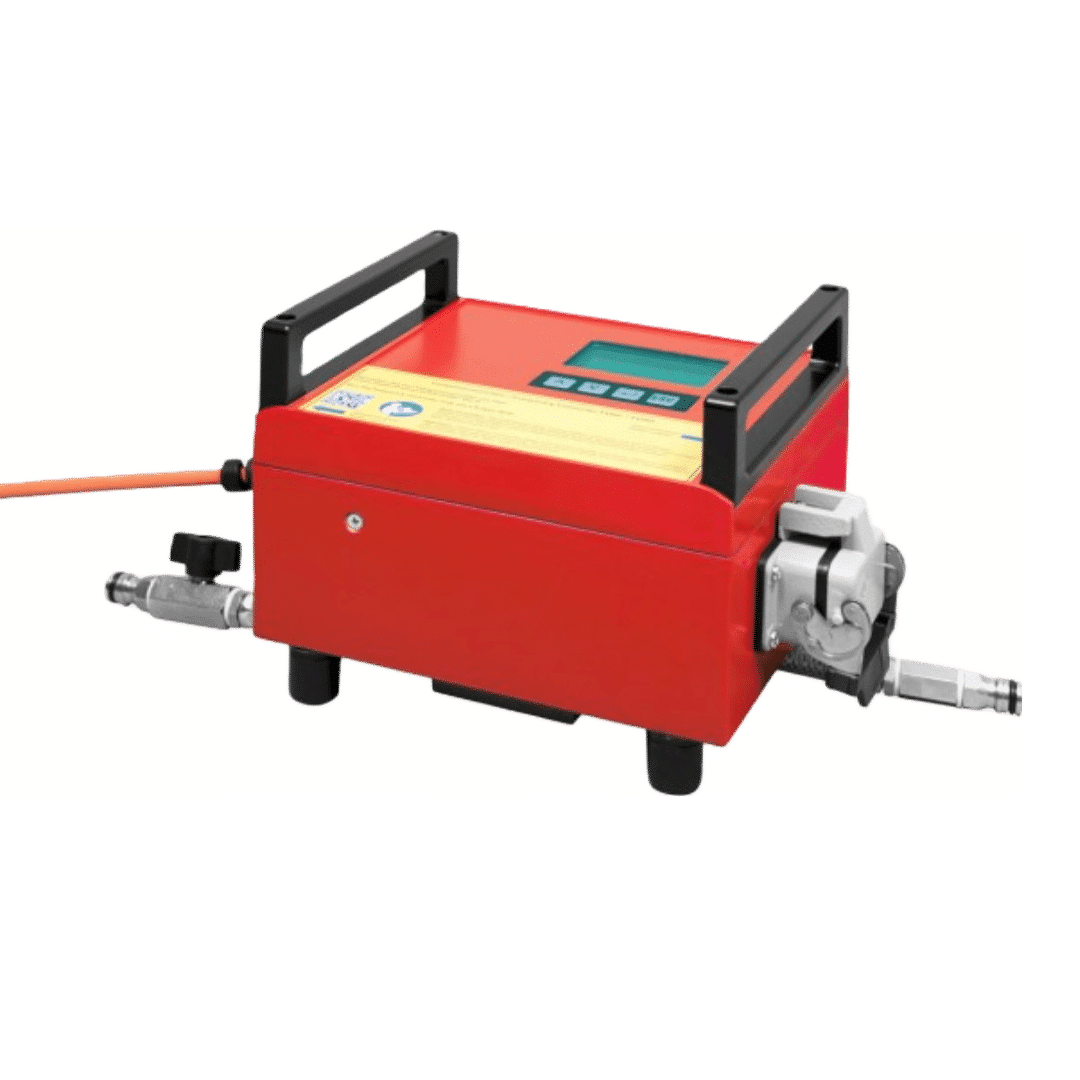

WEKA FU6D Frequency Converter with Display

• Powers both the TR40 and TS40 — one converter drives the entire system
• Automatically identifies the connected tool and applies optimised speed, torque, and protection settings via coded plug
• Integrated digital display shows live power draw, operating status, and fault codes
• Water-cooled for sustained operation; IP54-rated for site conditions
• Dual-voltage input: 230V single-phase (3.7kW) or 400V three-phase (6.5kW)

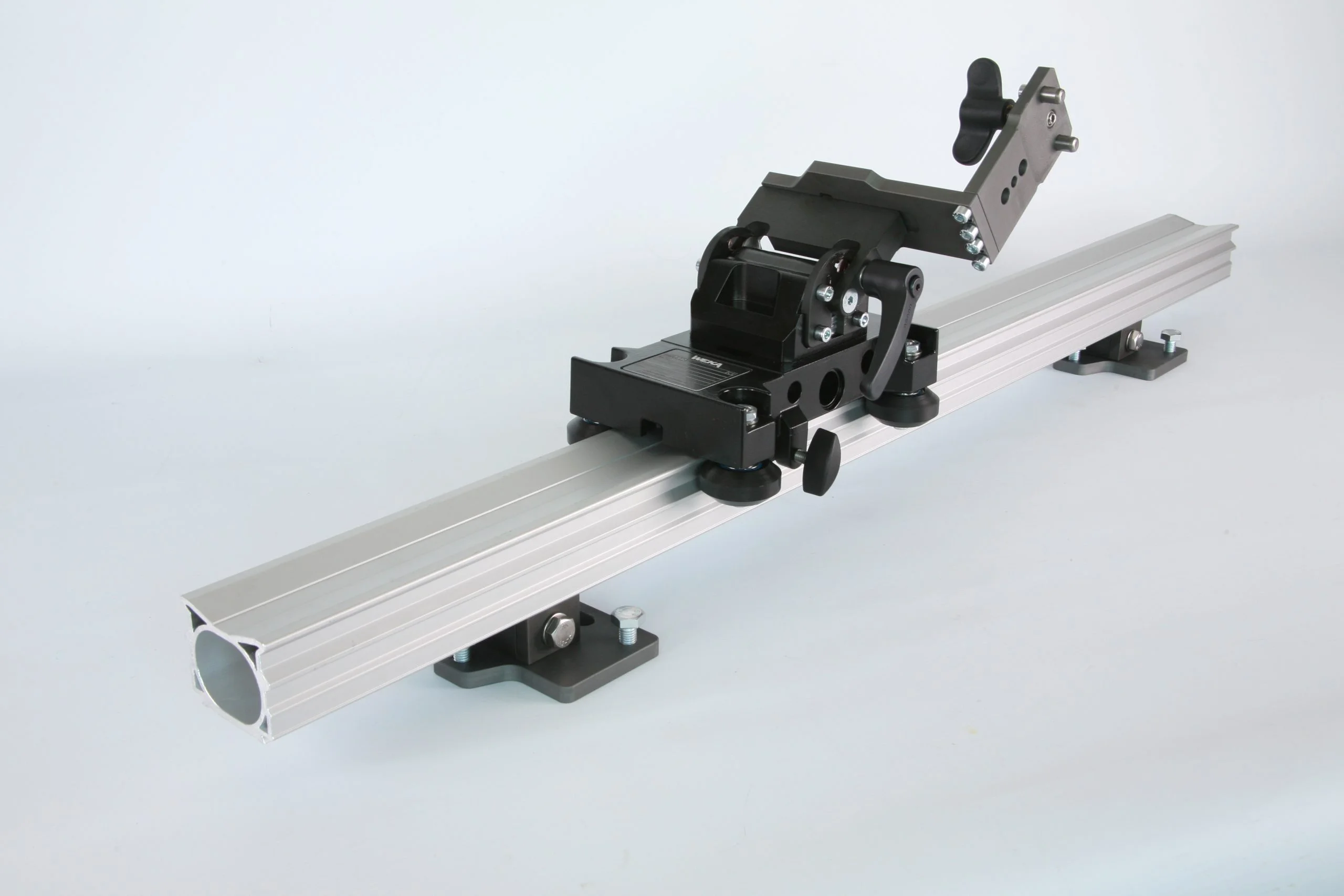

WEKA FS40 Guide Rail System (incl. Adapter Plates for TR40 and TS40)

• Standard 2.18m rail length — extendable for longer cuts
• Tool-free quick-change carriage for fast transitions between guided and freehand operation
• Fixing brackets and sliding carriage included
• Maximum cutting depth: 165mm with TS40 / 300mm with TR40
• Adapter plates for both the TS40 and TR40 included in this package

Included Diamond Blades (1 of each)

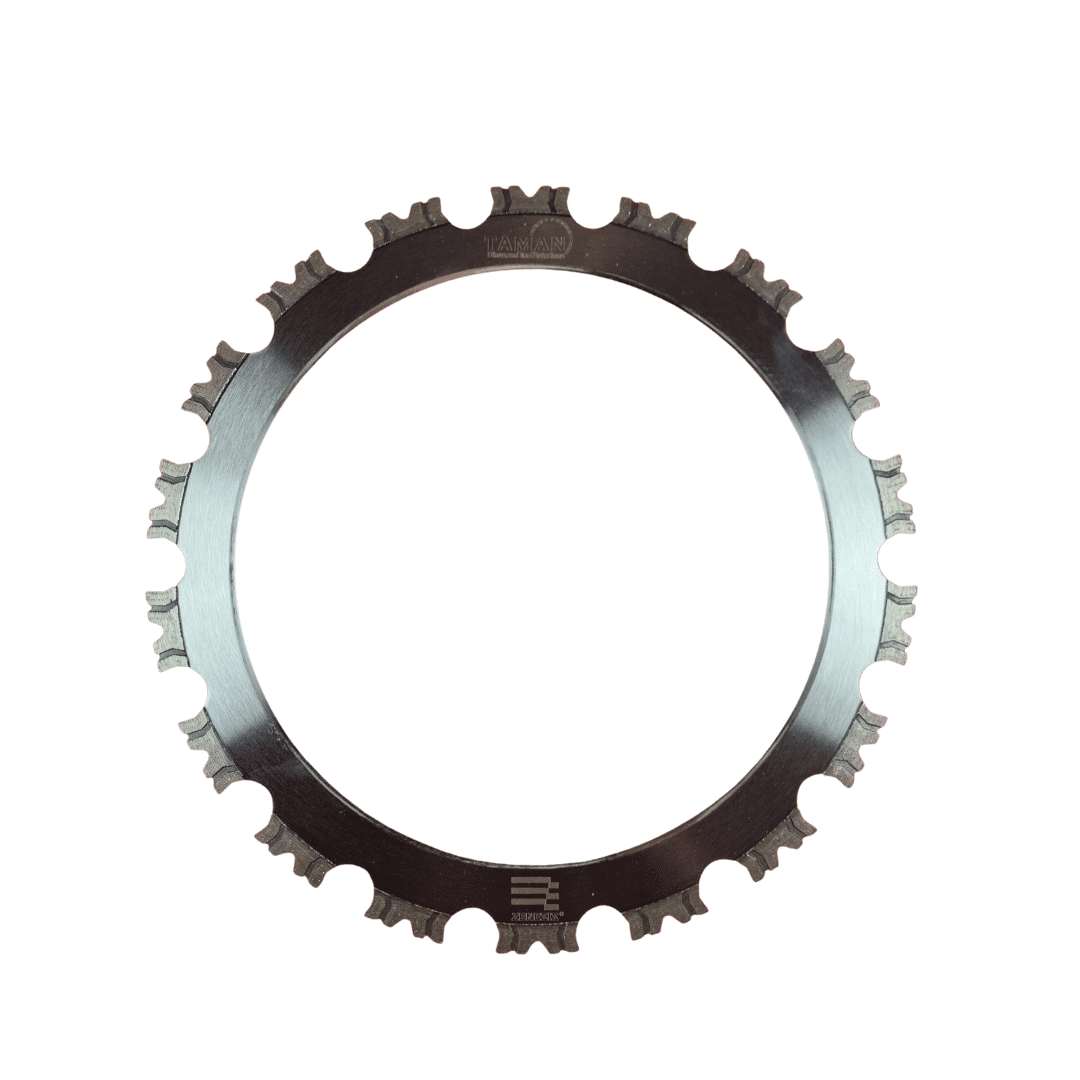

Zenesis Z5 Ring Saw Blade – Heavily Reinforced Concrete (for TR40)

• Purpose-built for heavily reinforced concrete using EHWA Zenesis 5 diamond arrangement technology
• Every diamond pre-positioned in 3D through the segment for maximum cutting performance
• Formulated specifically for the reinforced concrete found on Australian job sites
• Fast, clean cutting with extended blade life

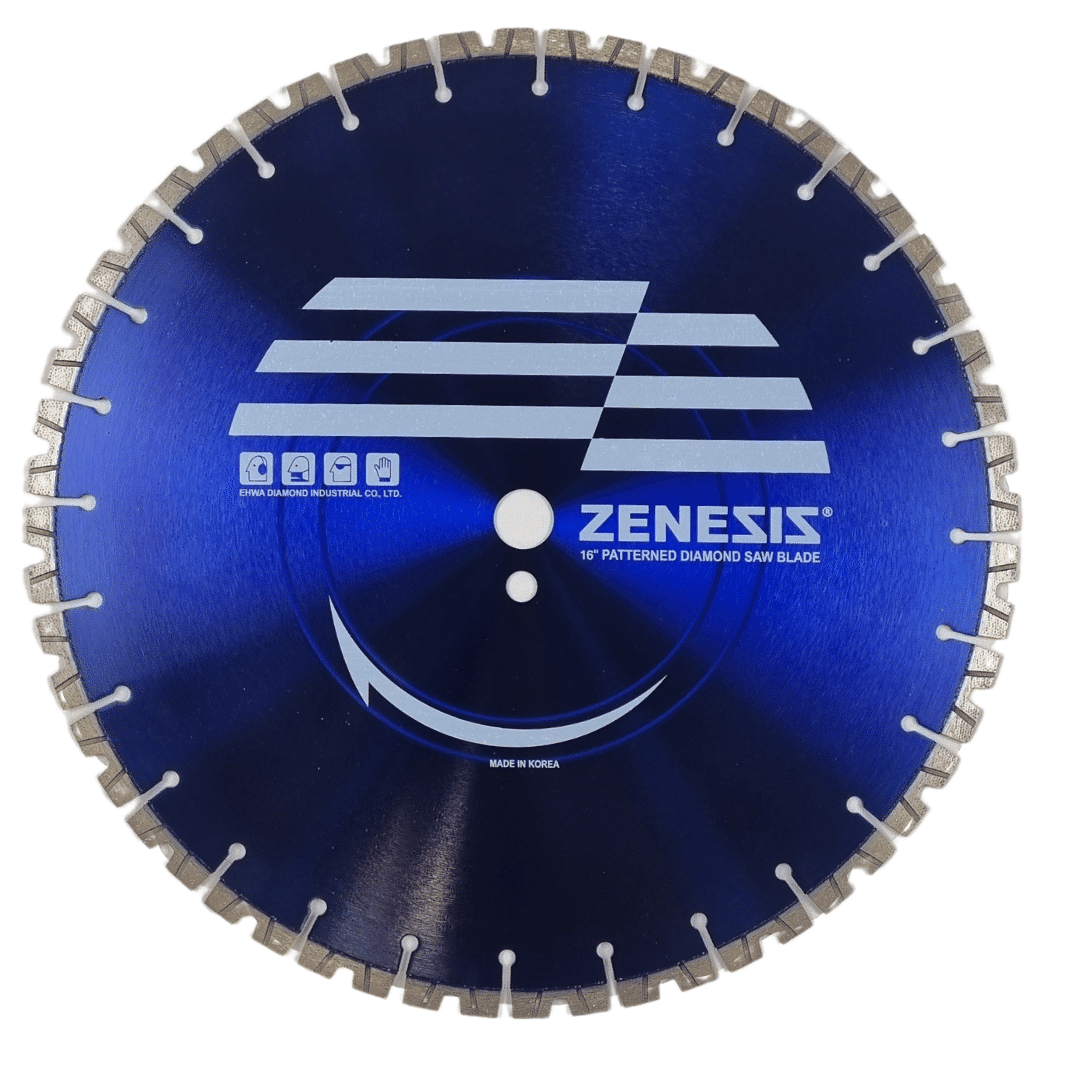

Zenesis Electric – Concrete / Reinforced Concrete (for TS40)

• Designed for electric handheld and floor saws
• Zenesis 3D diamond positioning for optimised performance in concrete and reinforced concrete
• Suitable for abrasive materials, brick, masonry, and general concrete cutting
• Premium segment specification for long service life

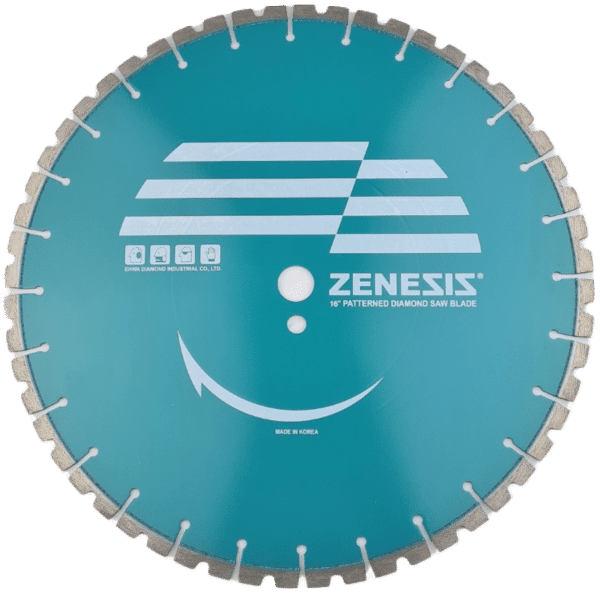

Zenesis Pre-Cut Blade (for use with TR40 before ring saw engagement)

• Used ahead of the ring saw to establish a controlled entry cut that stabilises the blade on deep penetrations
• Reduces lateral loading on the ring saw blade, extending blade life and reducing the need for early segment dressing
• Particularly important when cutting heavily reinforced concrete at or near maximum depth
• Zenesis 3D diamond arrangement for consistent performance in hard materials

Ideal Applications

This package is suited to concrete cutting contractors, structural modification specialists, civil construction crews, and hire companies requiring a high-output guided cutting system. Typical applications include:

• Door and window penetrations in reinforced concrete walls
• Service and utility openings in slabs and structural panels
• Controlled demolition cuts in reinforced concrete construction
• Flat and horizontal precision cutting using the guide rail on the TS40
• High-volume repeated opening work where accuracy and speed are critical
