Lissmac COMPACTCUT 401E Electric Floor Saw Package — Cut to 320mm

A high-performance electric floor saw package built for indoor concrete cutting at serious depth.

The Lissmac COMPACTCUT 401E is one of the standout electric floor saws in its class — compact enough for tight sites and buildings, powerful enough to cut to 320mm, and clean enough to run indoors without the fume and noise penalties of a petrol machine. This package adds a matched 800mm Zenesis blade, the patented flush cut wall system, and 40 metres of 3-phase cable to create a fully ready-to-work system that can operate anywhere there’s a 3-phase power source within reach.

Why Electric for Indoor Floor Sawing?

For interior slabs, basement work, and occupied or partially-occupied buildings, an electric floor saw is the right tool for the job:

• Zero exhaust emissions — safe for enclosed spaces, basements, multi-storey buildings, and occupied sites
• Significantly lower noise — less site disruption, better compliance with noise restrictions on sensitive sites
• Low vibration — reduces operator fatigue during extended cutting sessions and protects the diamond blade
• High torque at low RPM — the 400V motor delivers consistent power through reinforced concrete without the performance variability of petrol under load
• Cuts flush to the wall — with the included patented wall-flush system, the 401E cuts to within 10–15mm of a wall, eliminating the need for secondary handheld cuts in most applications
• Can be broken down into manageable assemblies — for transport through doorways, stairwells, and confined access on multi-level sites
• Optimum centre of gravity — the machine’s weight distribution is engineered to the blade, giving excellent directional stability and sawing accuracy throughout the cut

What’s in the Package

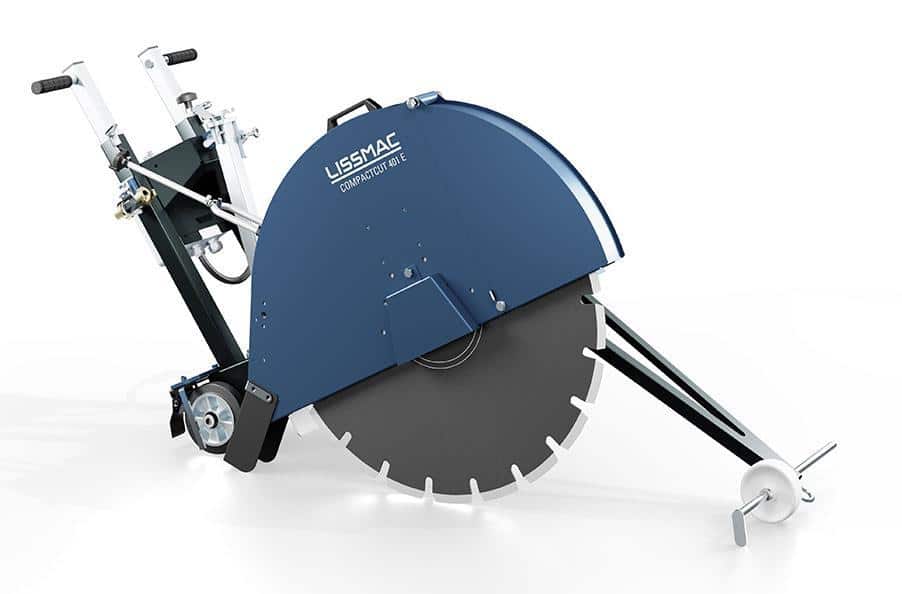

Lissmac COMPACTCUT 401E Electric Floor Saw with 800mm Blade Guard

• Maximum cutting depth: 320mm
• Maximum blade diameter: 800mm
• Motor: 7.5kW / 400V / 32A electric
• Blade speed: 1,250 rpm
• Left and right cut capability — easily convertible in a few simple movements
• Continuous cutting depth adjustment via handwheel and threaded spindle — no abrupt drops that can damage the blade
• Low-maintenance rocker design for blade excavation
• Saw hood foldable at the front for overcuts
• Fork spray coolant delivered directly through the hood
• Handles height-adjustable and variably pluggable for ergonomic operation
• Adjustable depth of cut display
• Stable H-shape dipstick
• Can be dismantled into manageable sections for transport inside buildings
• Dimensions: 990mm × 580mm × 850mm; Weight: 156kg

Flush Cut Wall System (Patented)

• Patented 800mm sliding saw hood and wall-flush saw blade holder
• Enables cutting to within 10–15mm of a wall — eliminating or significantly reducing the need for secondary handheld saw cuts
• Compliant with the current machinery directive and C-norm requirements for wall-flush joint cutting
• Equipped with the required protective device to DIN EN 13862

Zenesis Professional Electric Road Saw Blade – 800mm

• Bond formulation specifically engineered for the torque and RPM characteristics of electric road saws
• Zenesis 3D arranged diamond technology for optimised cutting speed and extended segment life
• 4mm wide segments for enhanced durability under continuous load
• Reduced vibration and noise output matched to electric drive systems
• Suitable for reinforced concrete, standard concrete, and asphalt-over-concrete
• Arbor: 25.4mm

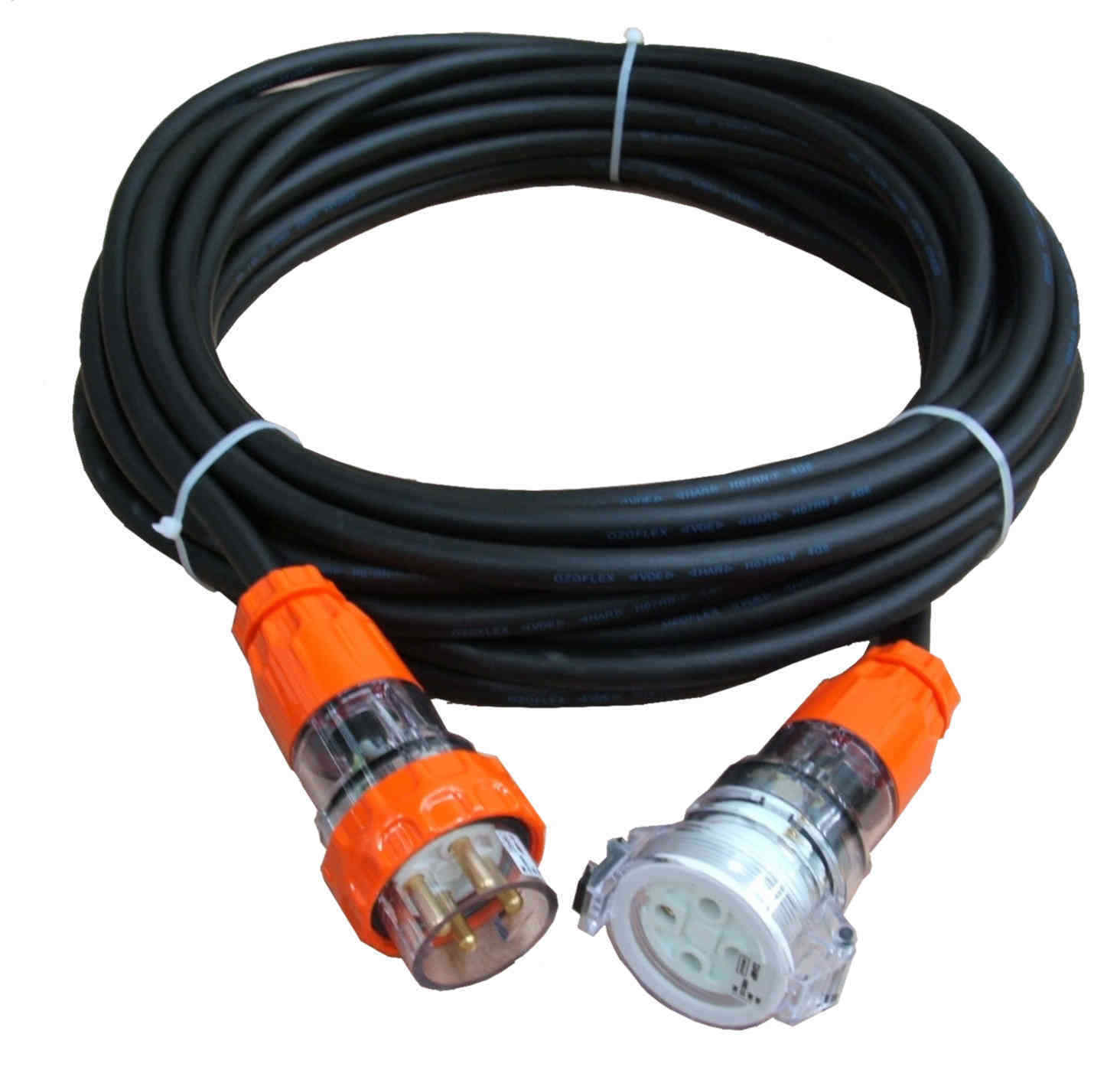

40m 3-Phase Power Cable

• Provides substantial reach from the nearest 32A 3-phase outlet to the cut location
• Reduces the need to move the power source or daisy-chain extension leads
• Particularly valuable in large slabs, multi-level buildings, and car parks where the power board is at a distance from the work area

Complete Package Contents Summary

• ✔ Lissmac COMPACTCUT 401E Electric Floor Saw
• ✔ 800mm Blade Guard
• ✔ Patented Flush Cut Wall System (800mm sliding hood + wall-flush blade holder)
• ✔ Zenesis Professional Electric Road Saw Blade – 800mm
• ✔ 40m 3-Phase Power Cable

Ideal Applications

• Interior slab penetrations in occupied or partially-occupied buildings
• Basement and underground structure cutting
• Multi-storey construction where emissions and noise must be minimised
• Utility service trenching in concrete floors
• Expansion joint and control joint cutting in large interior slabs
• Car parks and enclosed structures
• Cutting flush to walls and columns without secondary handheld work
• Any application requiring clean, accurate, deep cuts in concrete without petrol exhaust
