Price range: $37.40 through $49.50

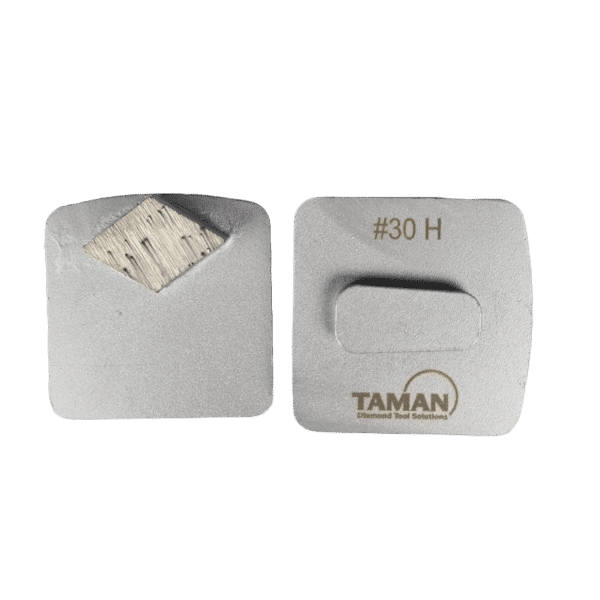

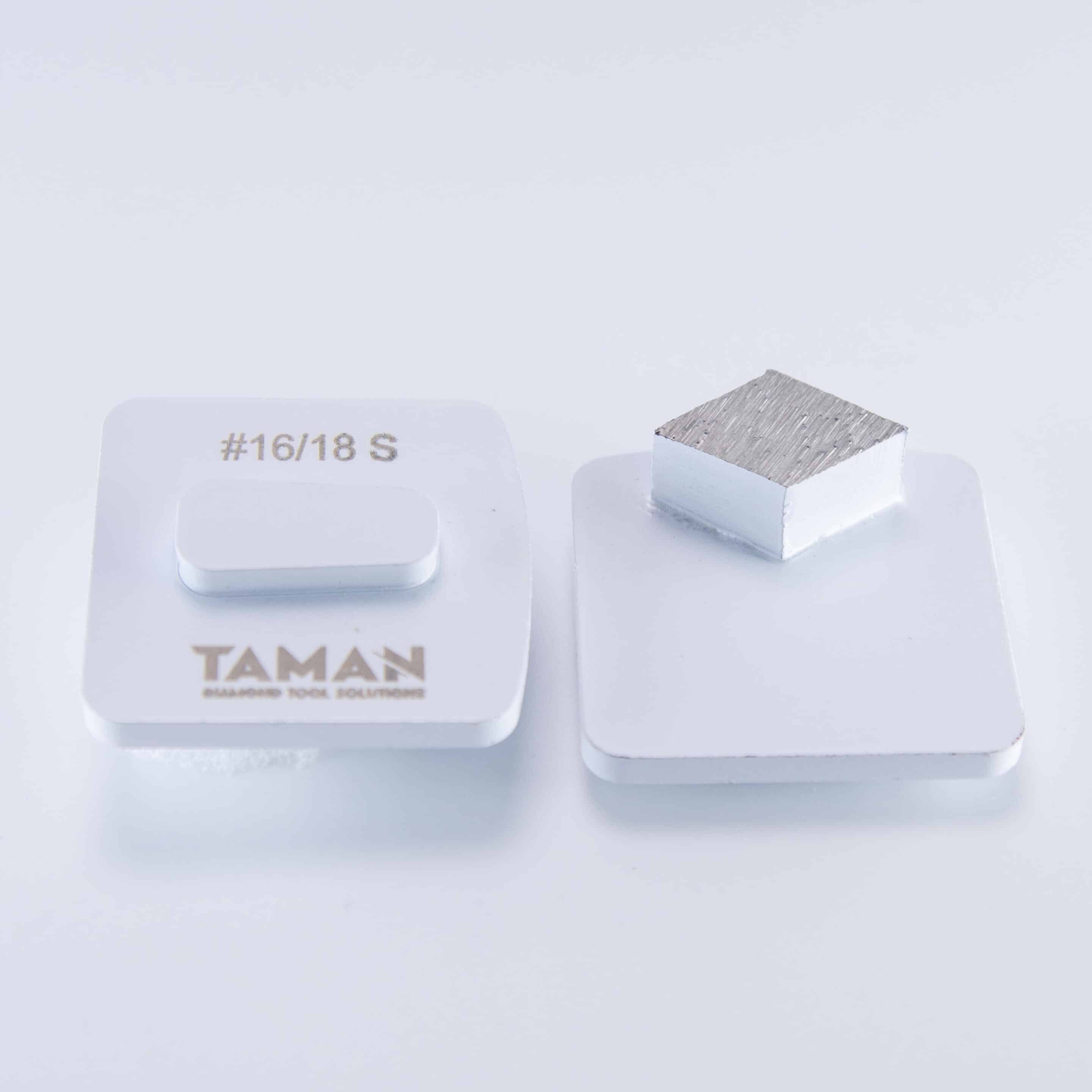

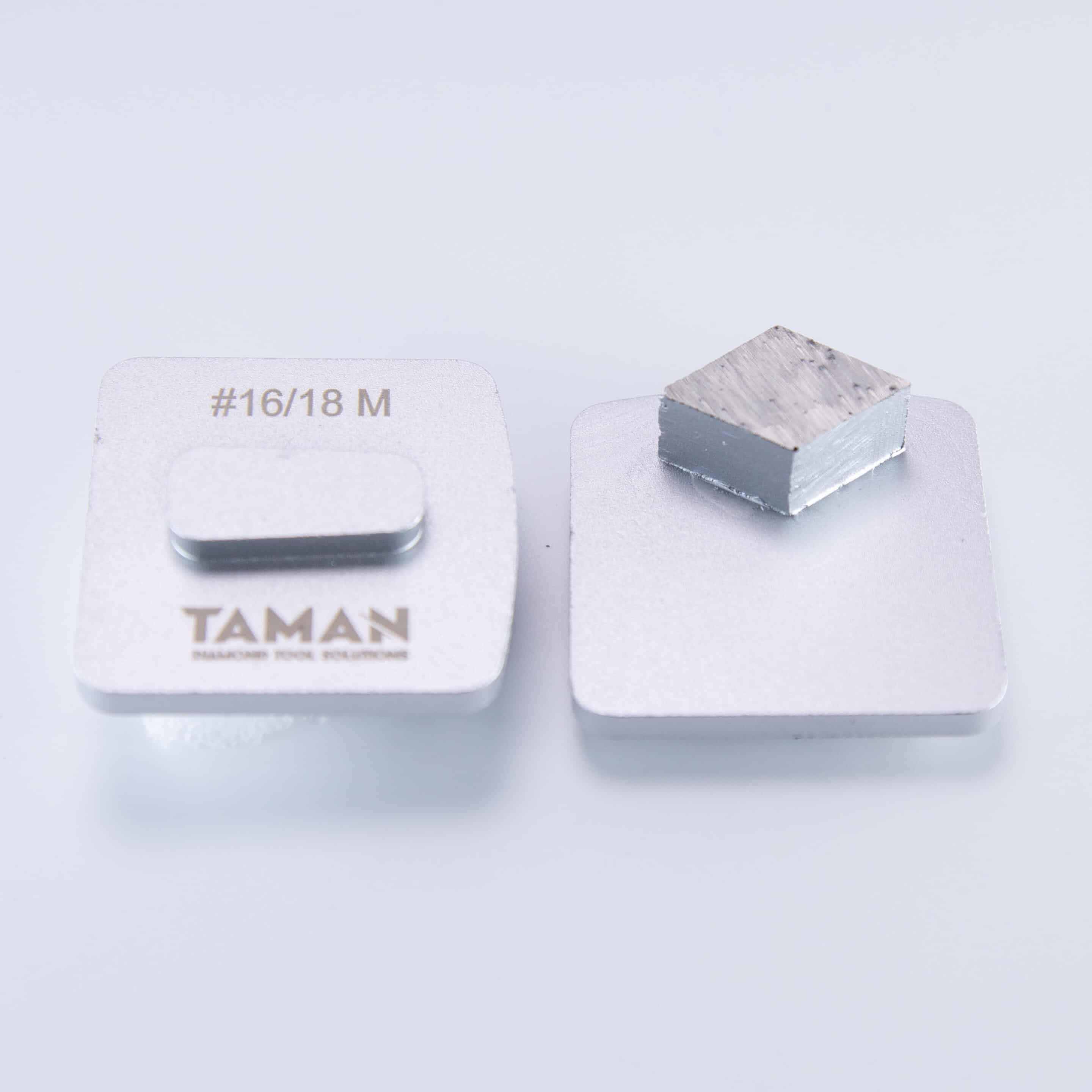

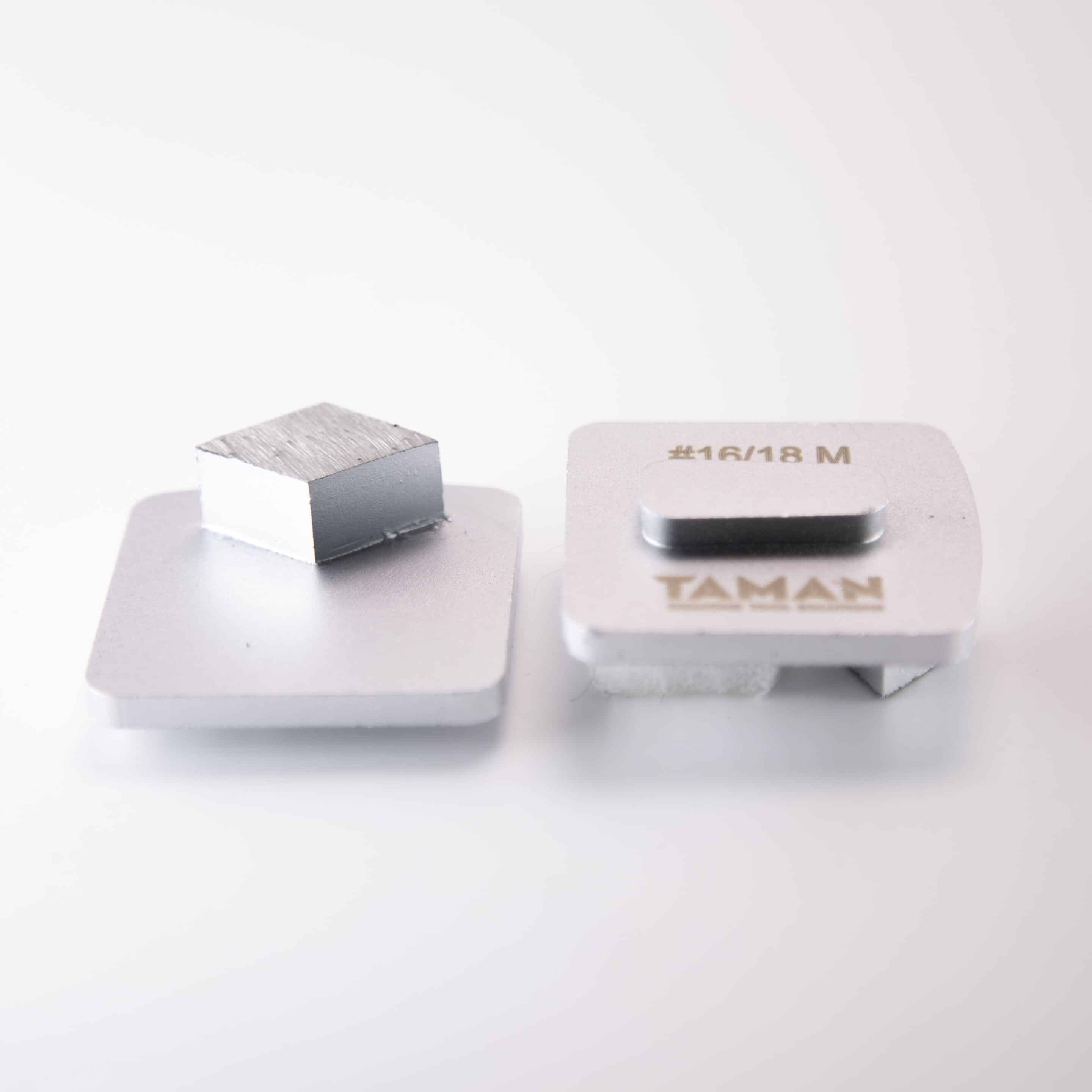

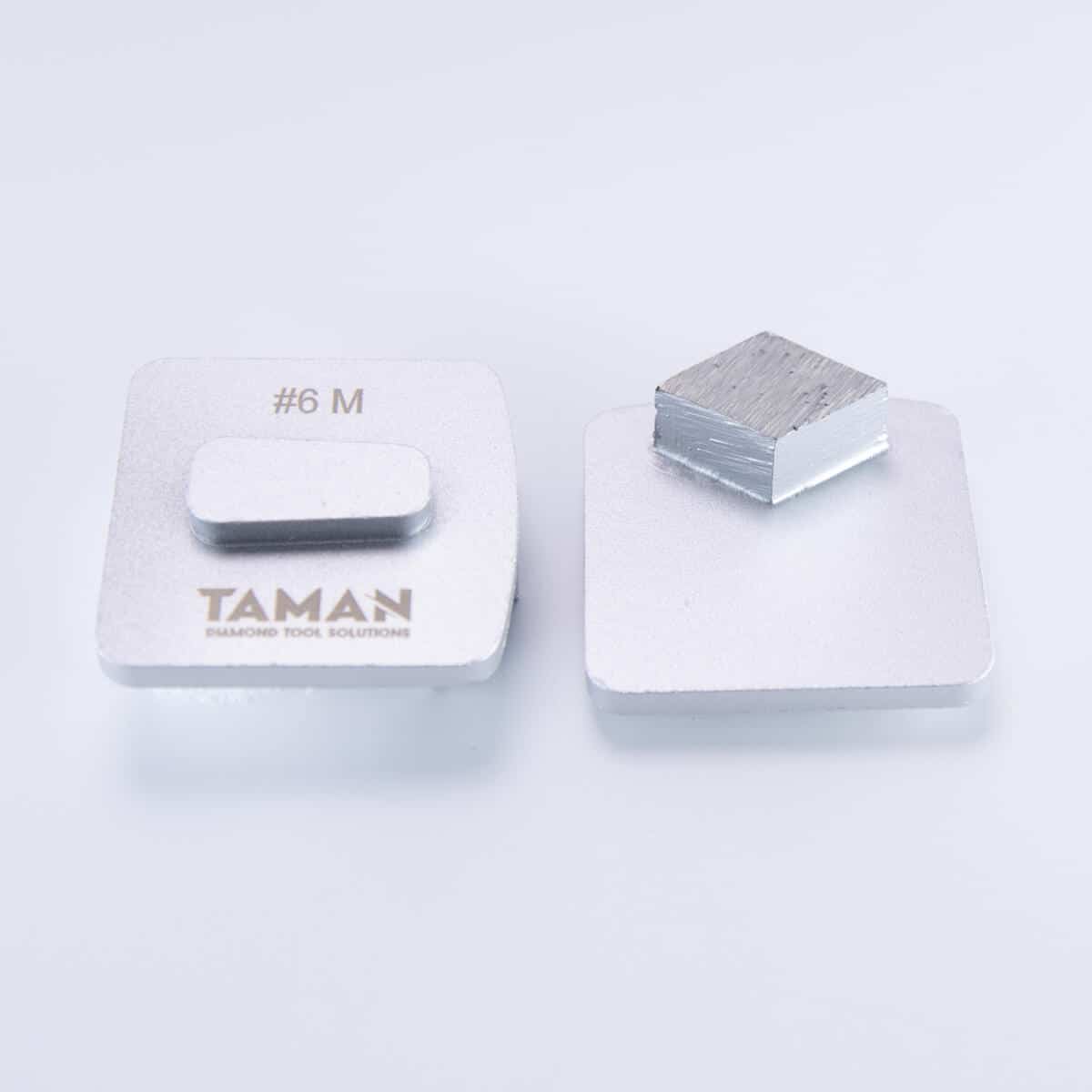

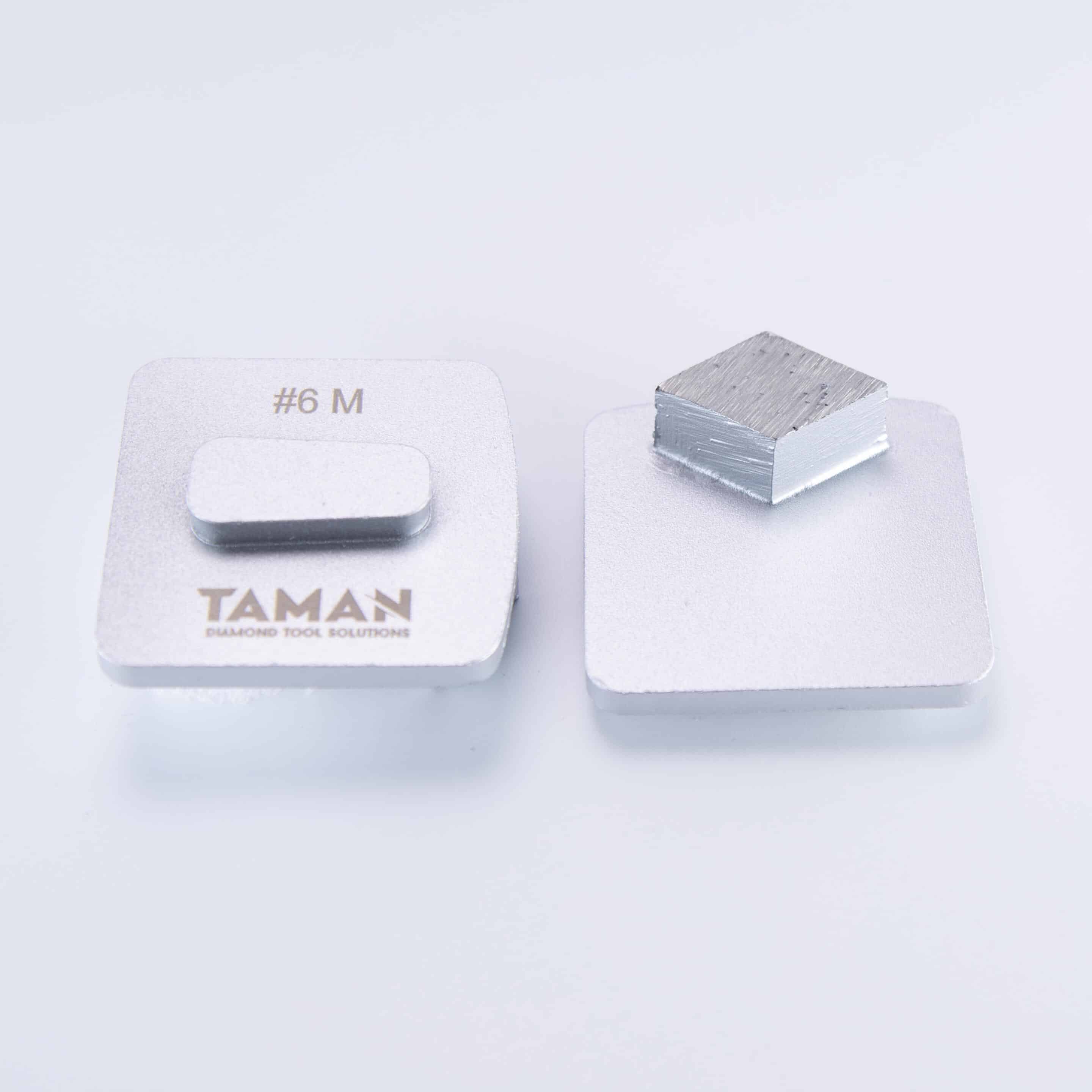

The Single Segment Diamond Shape Grinding Shoe is designed for aggressive material removal. The single segment applies concentrated pressure, while the sharp diamond profile cuts faster than button or coffin shapes.
Key Benefits
– Aggressive removal with sharp cutting edges
– Highest-grade diamonds for superior life
– Pre-dressed segments, ready to use
– Meets EN13236 safety standards
Best for contractors needing fast stock removal where productivity is the priority.
The grit determines how aggressive the grind will be as and the following should be used as guidance.
6 Grit – The most aggressive grit, will remove material rapidly but leave severe scratching on the surface.
16 Grit – Very aggressive grit, will remove material rapidly but leave significant scratching on the surface.
30 Grit – Aggressive grit, will remove material rapidly but leave some scratching on the surface.
60 Grit – Moderate grit, will remove material at a moderate pace but leave minor scratching on the surface.
120 Grit – Fine grit, minor material removal and the least scratching from metal bond diamonds.
When selecting diamond grinding tooling, ensure the bond is appropriate for the hardness of the surface.
Soft bonds should be used on harder material as the soft bond ensures faster diamond exposure.
Hard Bonds should be used on softer material as the slower wear rate ensures diamond longevity.
Using too hard of a bond can cause glazing of the diamonds and significantly impact performance.
Using too soft of a bond will cause the segment to wear prematurely.
