$37.40

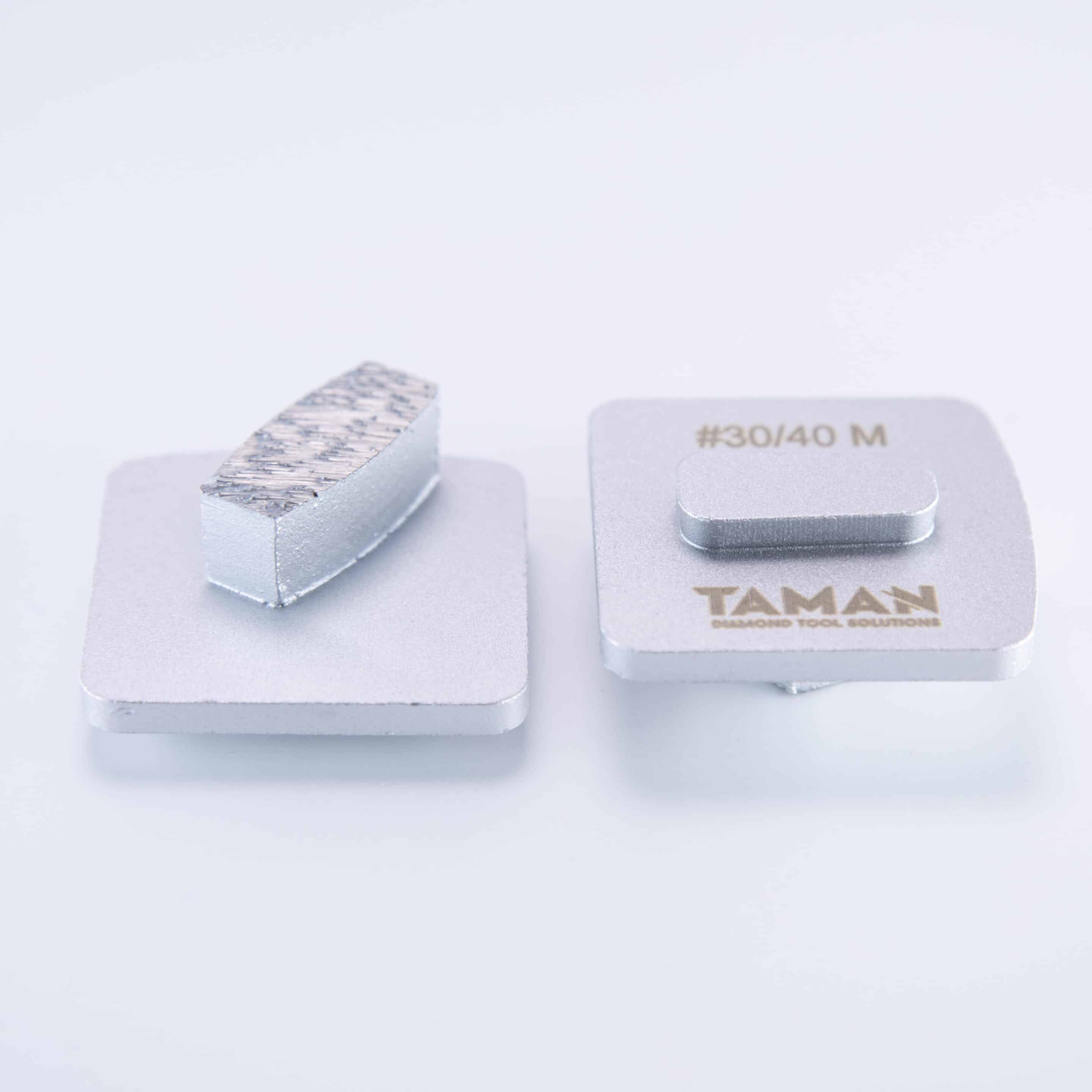

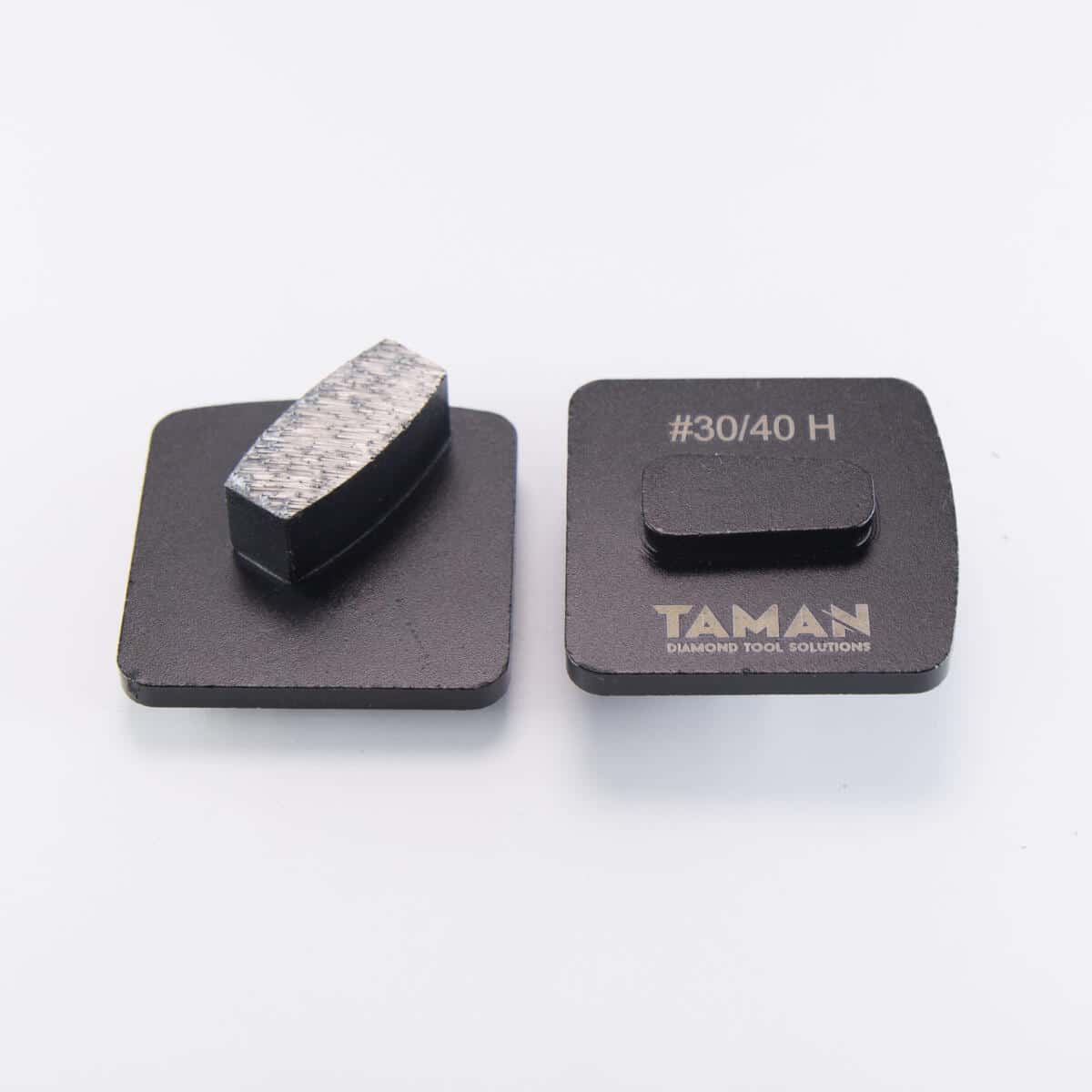

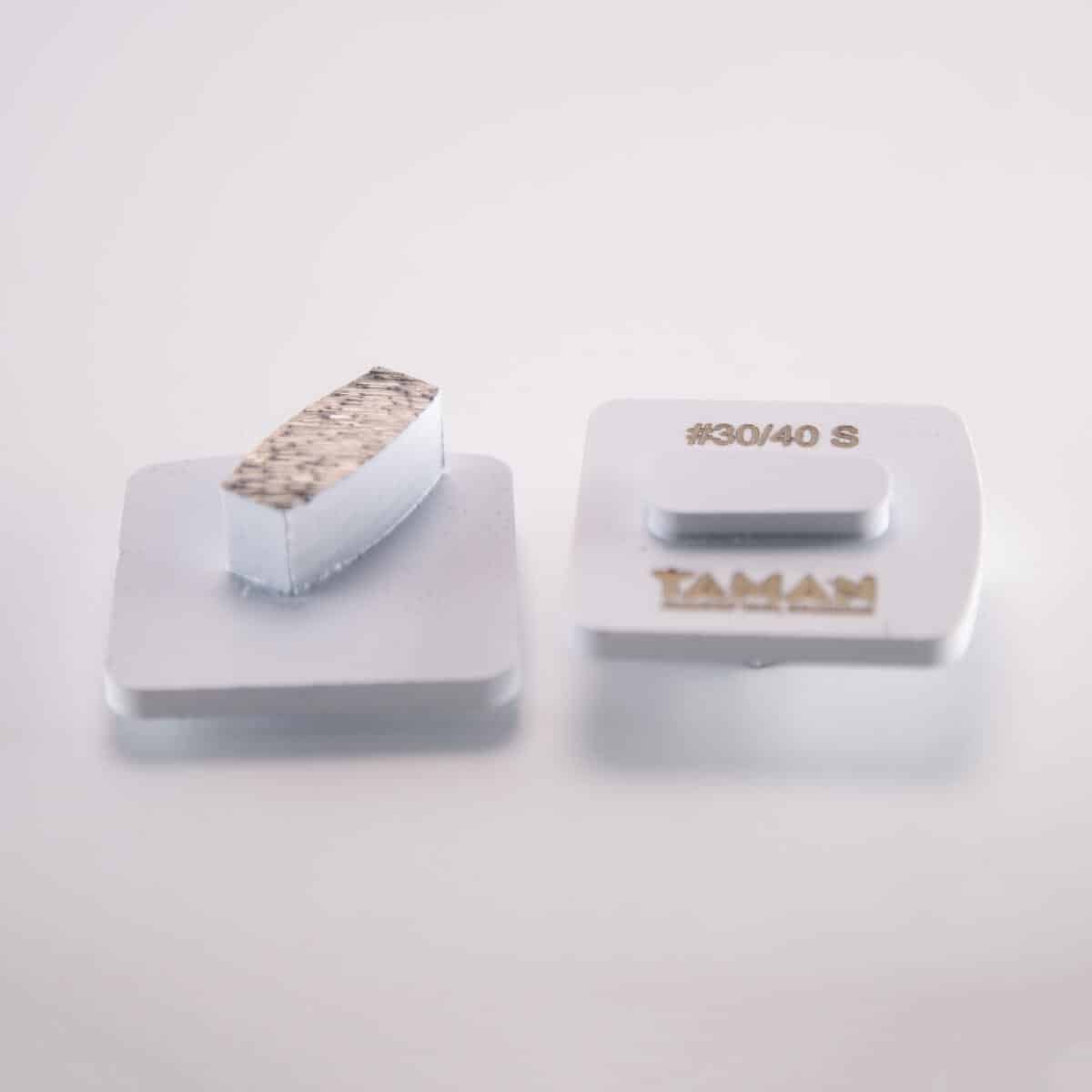

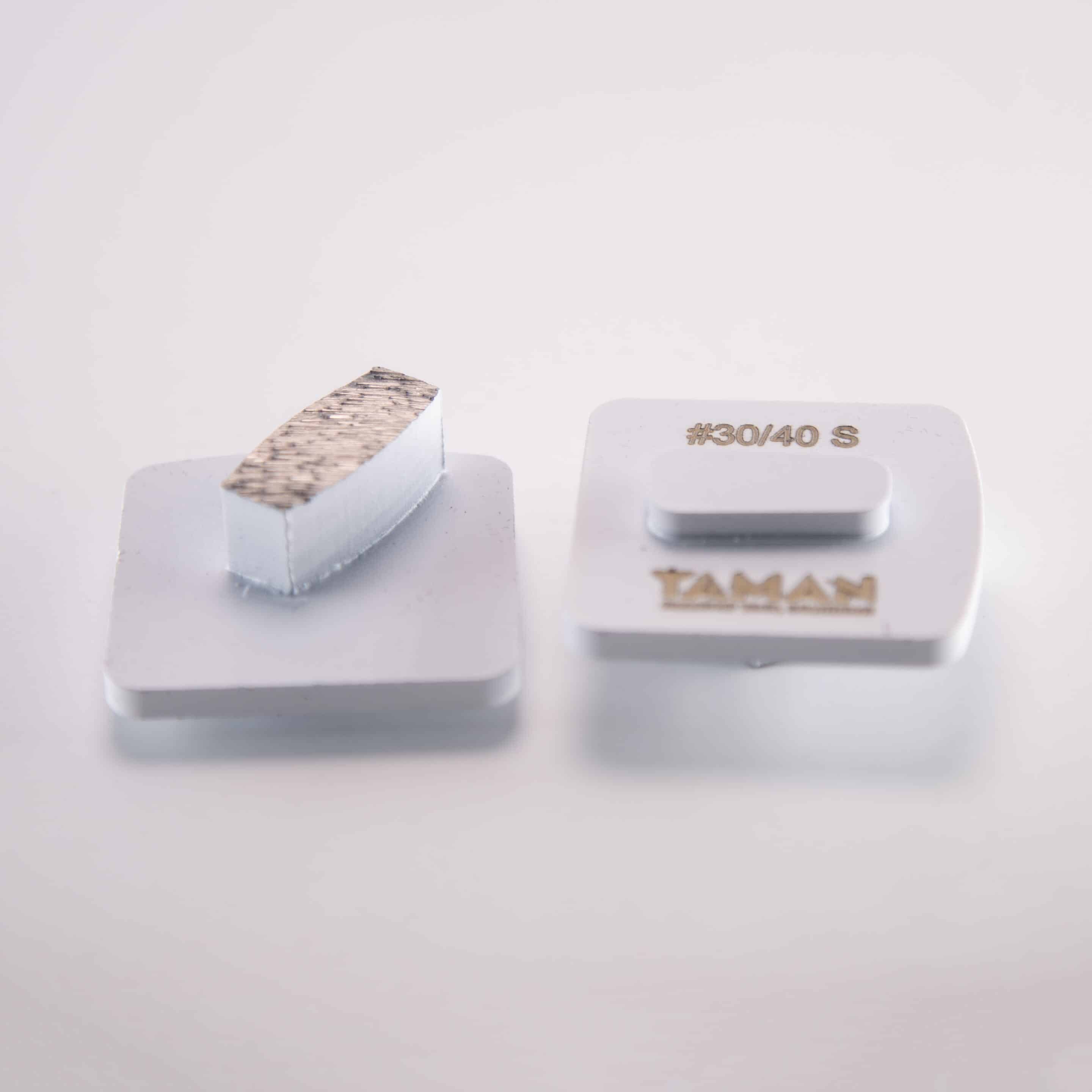

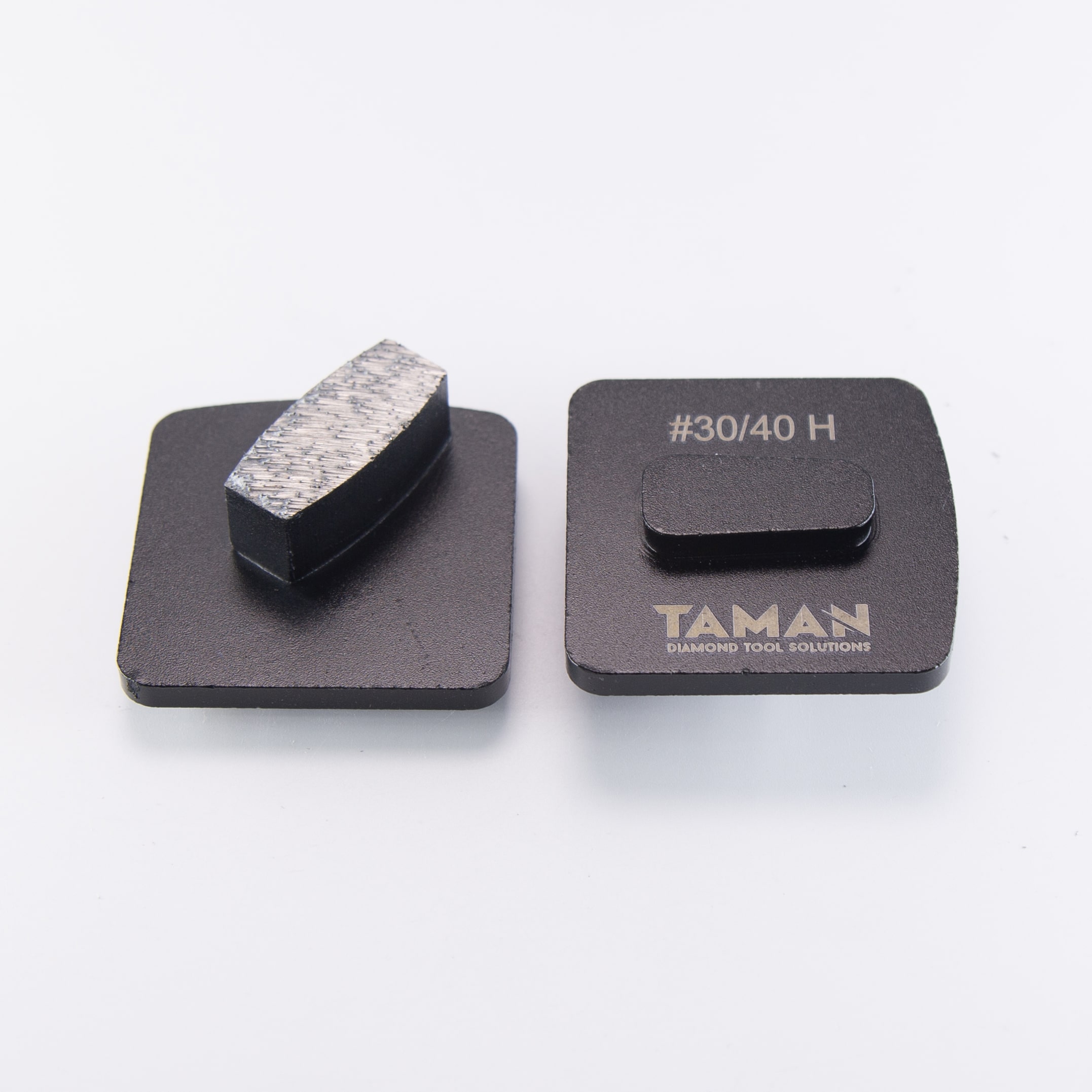

The Single Segment Coffin Shape Grinding Shoe is designed for a gentler grinding action. The coffin profile provides a smoother scratch pattern while still achieving efficient removal.
Key Benefits:
– Controlled, less aggressive cutting action
– Produces smoother surface finishes
– Pre-dressed segments save setup time
– Built to EN13236 standards
Perfect when surface finish quality is more important than removal speed.
The lower the grit the more material the tool will remove.
16 Grit – Very aggressive grit, will remove material rapidly but leave significant scratching on the surface.
30 Grit – Aggressive grit, will remove material rapidly but leave some scratching on the surface.
60 Grit – Moderate grit, will remove material at a moderate pace but leave minor scratching on the surface.
120 Grit – Fine grit, minor material removal and the least scratching from metal bond diamonds.
When selecting diamond grinding tooling, ensure the bond is appropriate for the hardness of the surface.
Soft bonds should be used on harder material as the soft bond ensures faster diamond exposure.
Hard Bonds should be used on softer material as the slower wear rate ensures diamond longevity.
Using too hard of a bond can cause glazing of the diamonds and significantly impact performance.
Using too soft of a bond will cause the segment to wear prematurely.
