$48.40

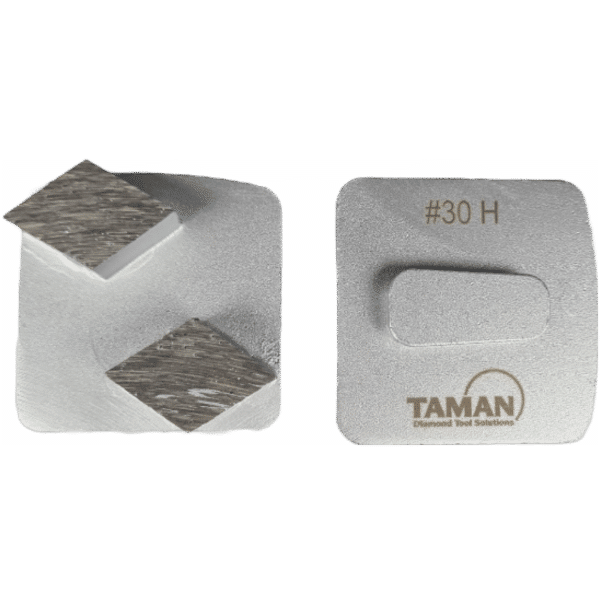

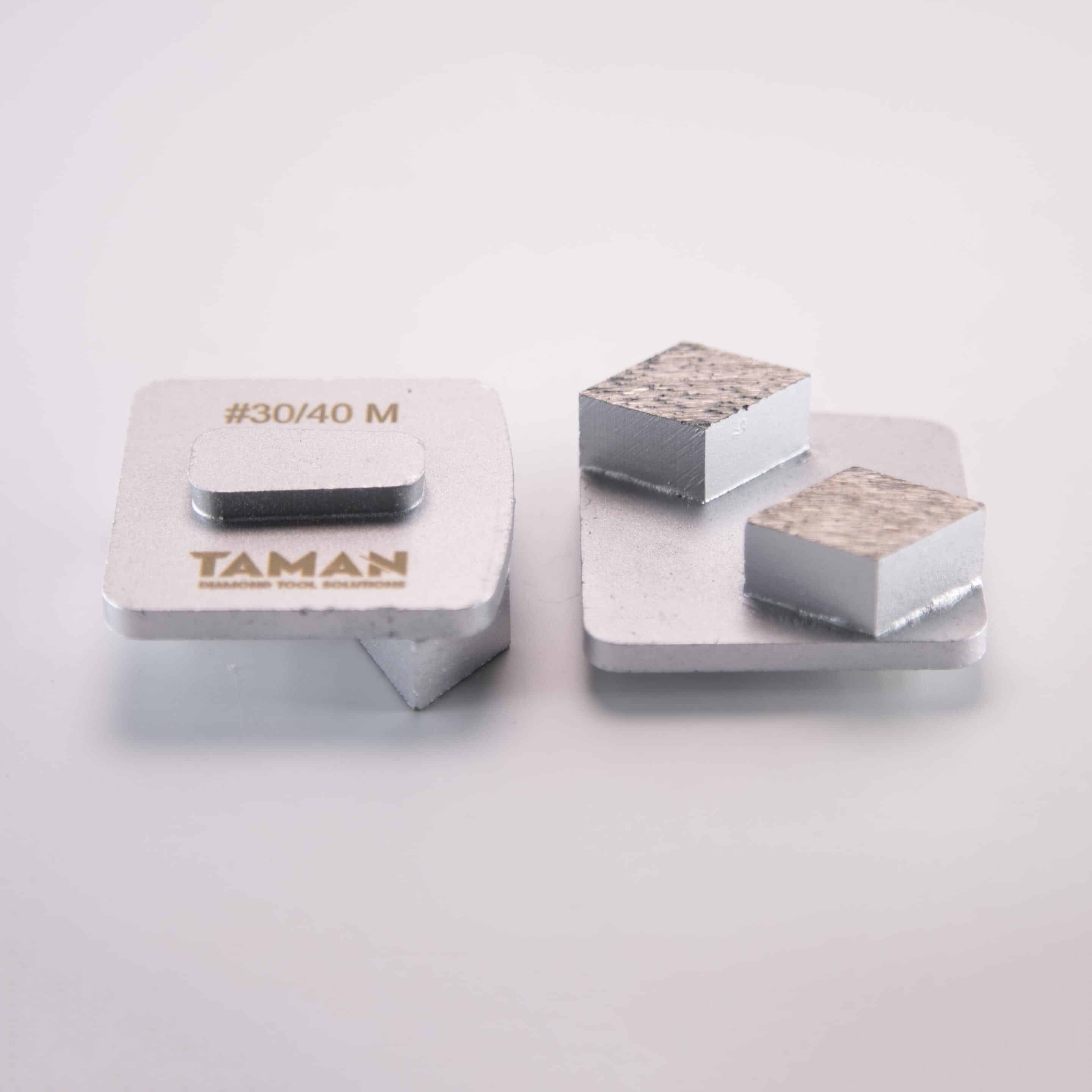

The Double Segment Diamond Shape Grinding Shoe provides a balanced performance, spreading the grinding load over two segments for improved stability and longer life.
Key Benefits
– Balanced grinding with extended lifespan
– Reduced scratch depth compared to single segment
– Premium diamond concentration for consistent performance
– EN13236 safety compliant
Ideal for medium removal where smooth operation and segment longevity are important.
he grit determines how aggressive the grind will be as and the following should be used as guidance.
6 Grit – The most aggressive grit, will remove material rapidly but leave severe scratching on the surface.
16 Grit – Very aggressive grit, will remove material rapidly but leave significant scratching on the surface.
30 Grit – Aggressive grit, will remove material rapidly but leave some scratching on the surface.
60 Grit – Moderate grit, will remove material at a moderate pace but leave minor scratching on the surface.
120 Grit – Fine grit, minor material removal and the least scratching from metal bond diamonds.
When selecting diamond grinding tooling, ensure the bond is appropriate for the hardness of the surface.
Soft bonds should be used on harder material as the soft bond ensures faster diamond exposure.
Hard Bonds should be used on softer material as the slower wear rate ensures diamond longevity.
Using too hard of a bond can cause glazing of the diamonds and significantly impact performance.
Using too soft of a bond will cause the segment to wear prematurely.
