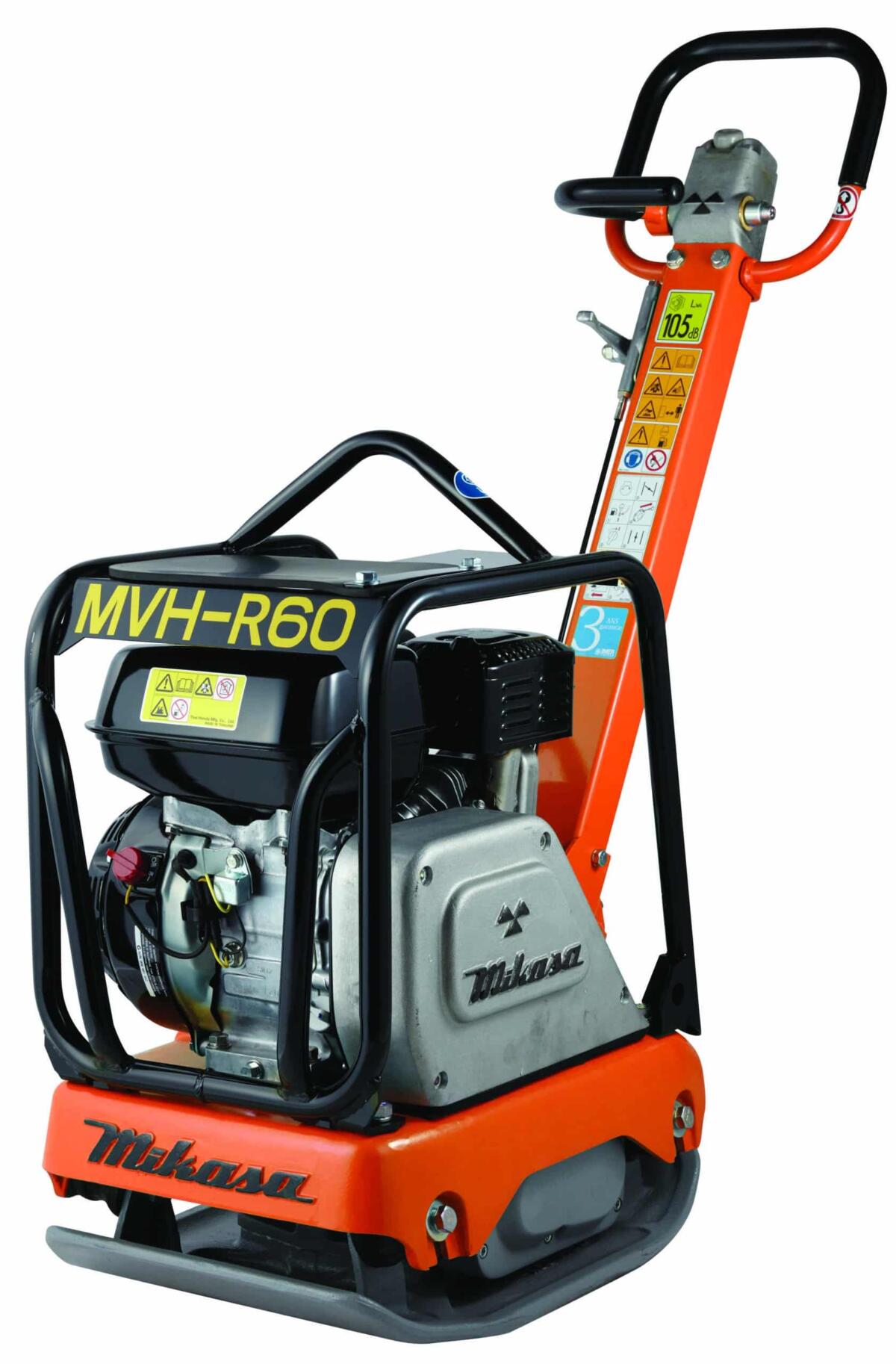

Mikasa Reversible Plate Compactor MVH-R60H

Mikasa Reversible Plate Compactors set the standard for efficient compaction of sand, gravel and cohesive soils in trenches and large construction projects. They offer high-compaction capacity, superior travel speeds and feature fully hydraulic direction control for easy direction change. They are ideally suited for civil construction works, drainage contractors and the rental industry.

– Honda GX120 4-stroke engine provides hassle free operation and low engine emissions
– Central lifting hook for safe onsite handling
– Forward/reverse control lever with built-in actuator for seamless and smooth transition between both forward and reverse motions
– Height adjustable handle for improved operator comfort
– Sealed clutch and belt guard protects against the ingress of dust and other unwanted materials that can prematurely wear out critical clutch components and V-belt
– Robust engine protection frame provides superior protection against engine damage and its open frame design simplifies maintenance and offers convenient access to all serviceable components

Specifications:
– Model: MVH-R60H
– Engine and power: Honda GX120 4.0 hp
– Fuel type: Petrol
– Operating weight: 68 kg
– Plate size (wxl): 350 mm x 480 mm
– Centrifugal force (max): 15 kN
– Vibration frequency: 6000 vpm
– Max travel speed*: 25 m/min
– Max gradeability: 35%
– Max compacted area: 525 m2/h

* Travel speeds vary based on different soil conditions. Specifications published are based on average performance results.
