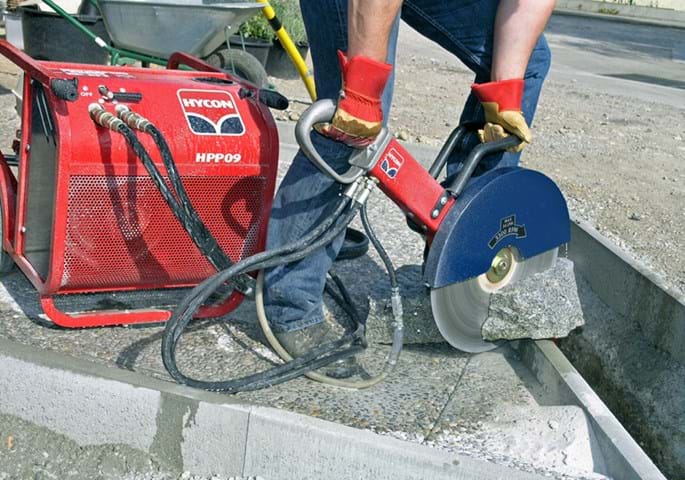

Hycon HCS16 Hand Saw 16″ – Hydraulic

The HYCON HCS cut-off saws cut all types of concrete, steel, brick wall, asphalt, etc. The HYCON cut-off saw is a very sturdy tool for cutting even under extreme conditions. It is completely unaffected by water and dust, and all parts run in oil. The HYCON HCS saws are built for hard use day after day – without breakdowns.

The fact that the saw always works and does not require service means higher profit than using, e.g., a gas engine saw.

The hydraulic cut-off saw from HYCON can be used for horizontal and vertical cutting. The saw stops automatically if the blade jams thanks to the system pressure relief valve. The blade stops rotating a maximum of 10 sec. after releasing the trigger, ensuring no injury to the operator.

Hydraulic direct drive high-quality motor ensures a minimum of service. Flushing water runs through the body and hydraulic motor for extra cooling and to keep all surfaces cold.

TECHNICAL DATA

Weight without hose/disc [kg] 7.8

Disc size – 16″ / Ø400 mm

Cutting depth [mm] – 162

Oil flow [LPM] – 20-40

Working pressure [bar] – 120

Max pressure [bar] – 172

Sound power level LWa [dB] – 108

Blade peripheral speed max [m/s] – 81

Vibration level, 3 axis [m/s2] – <2.5
