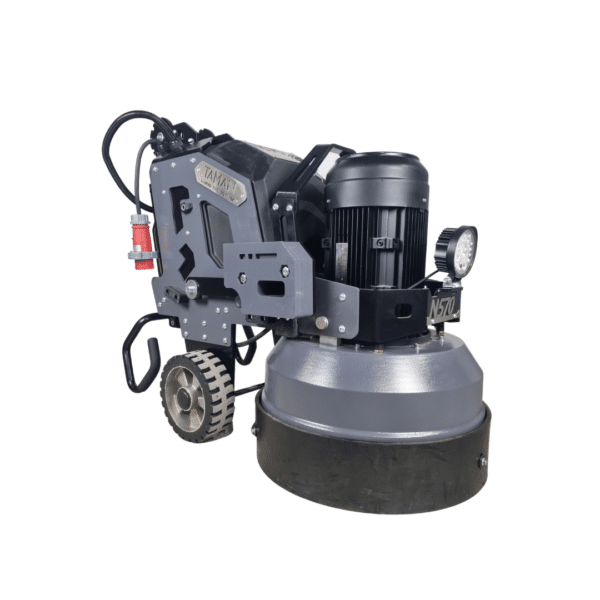

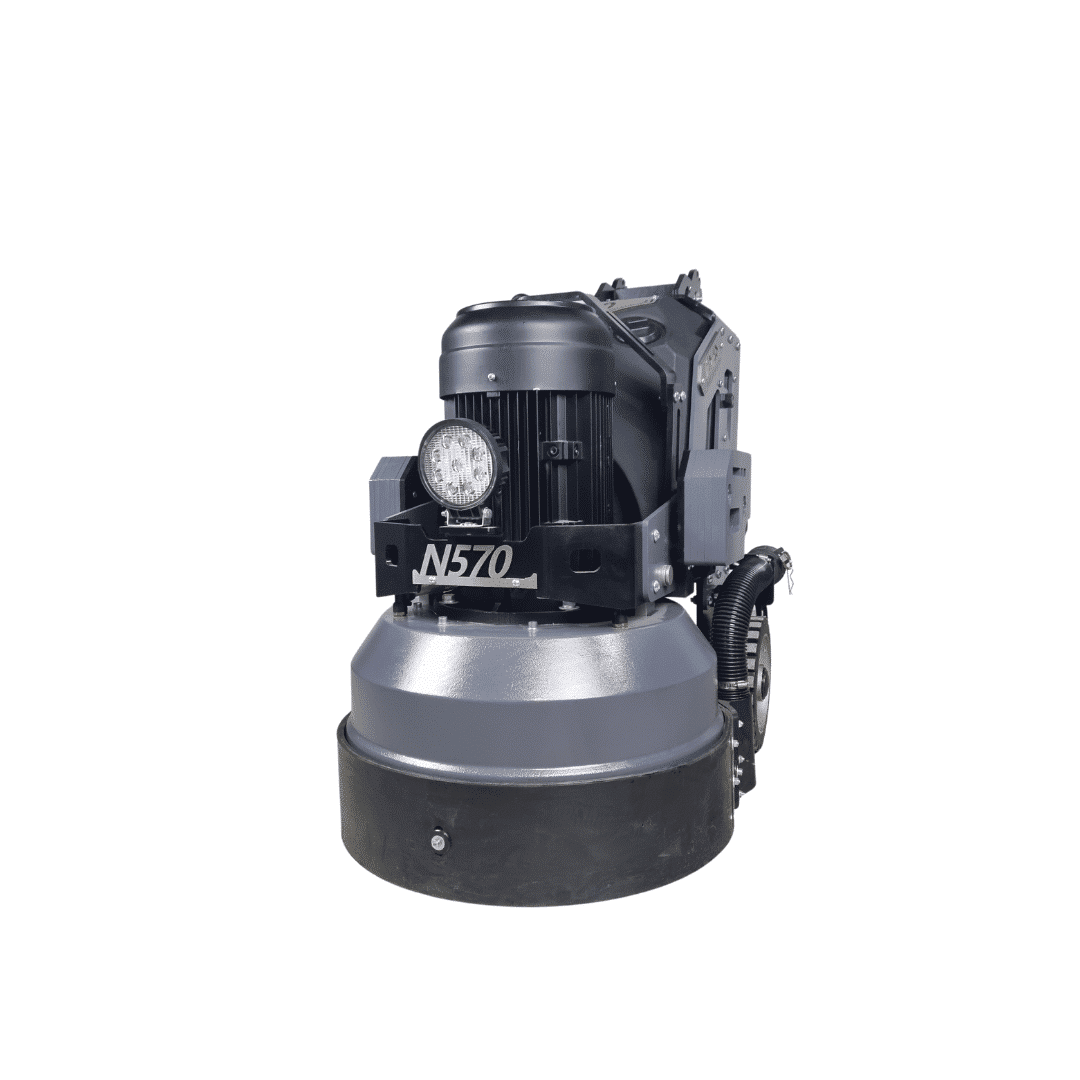

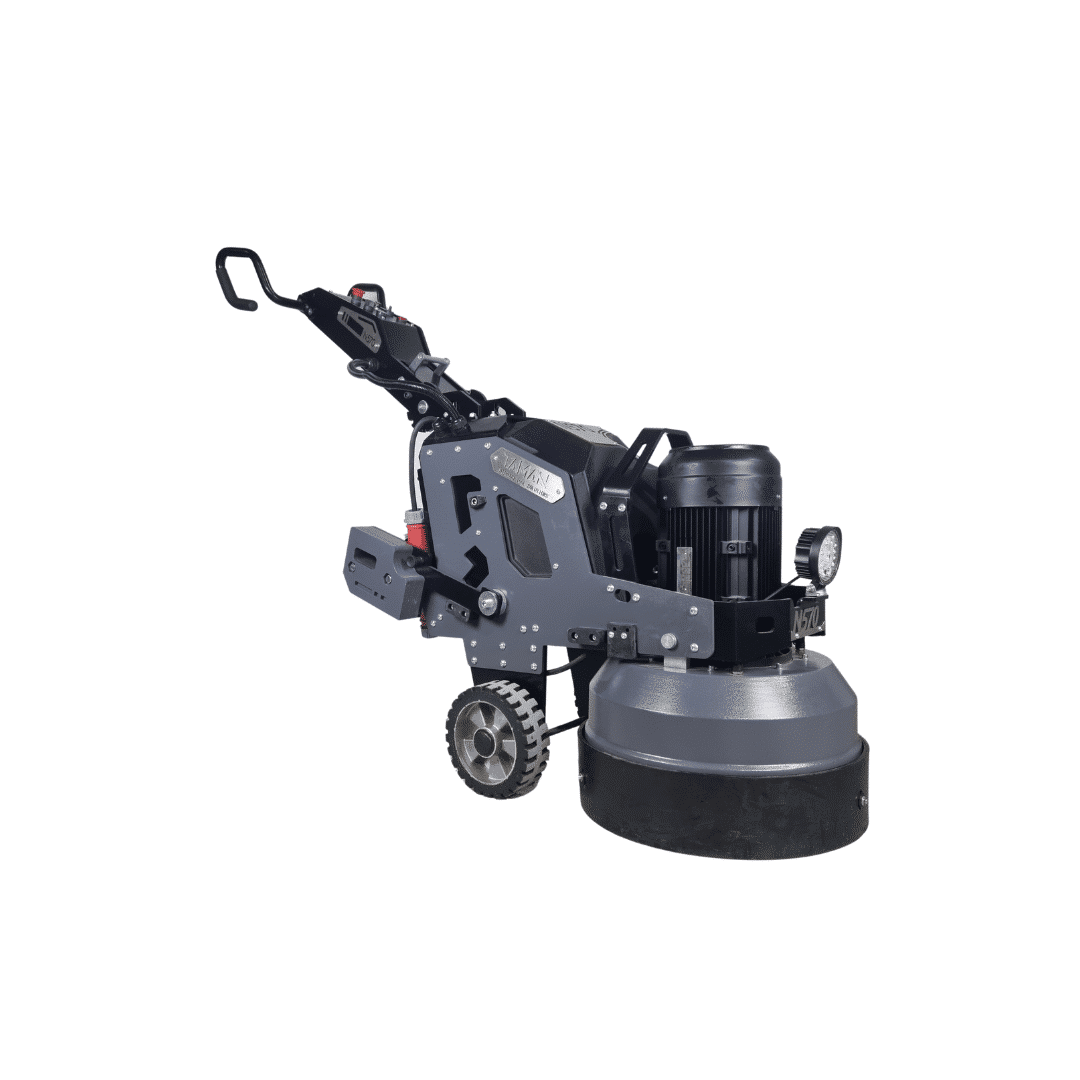

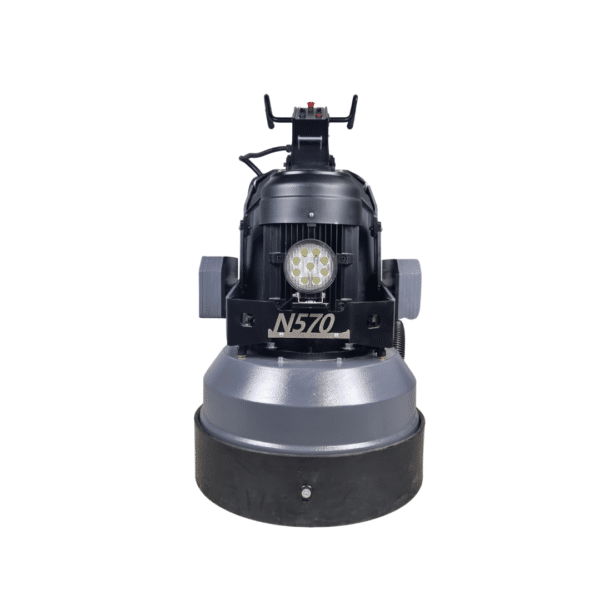

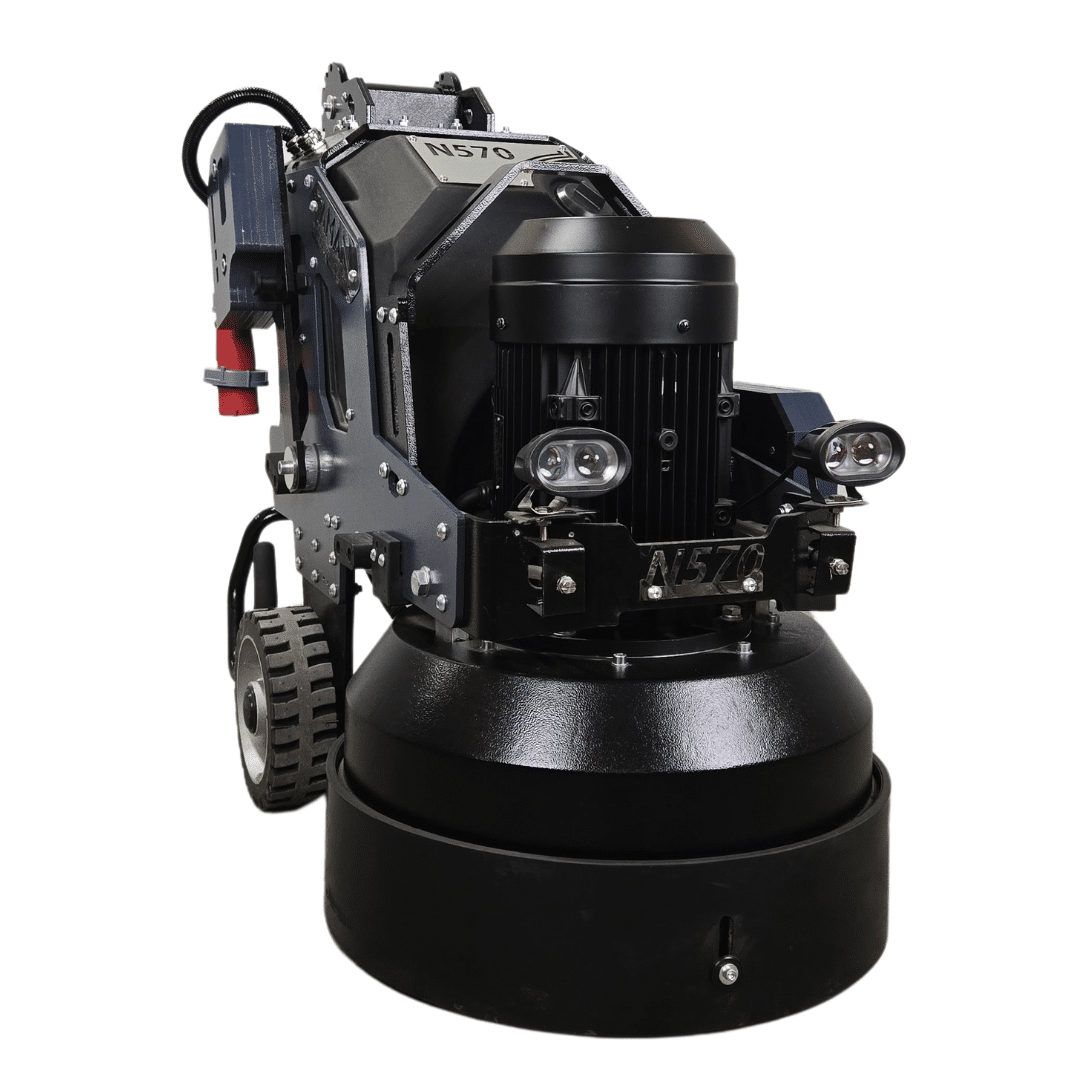

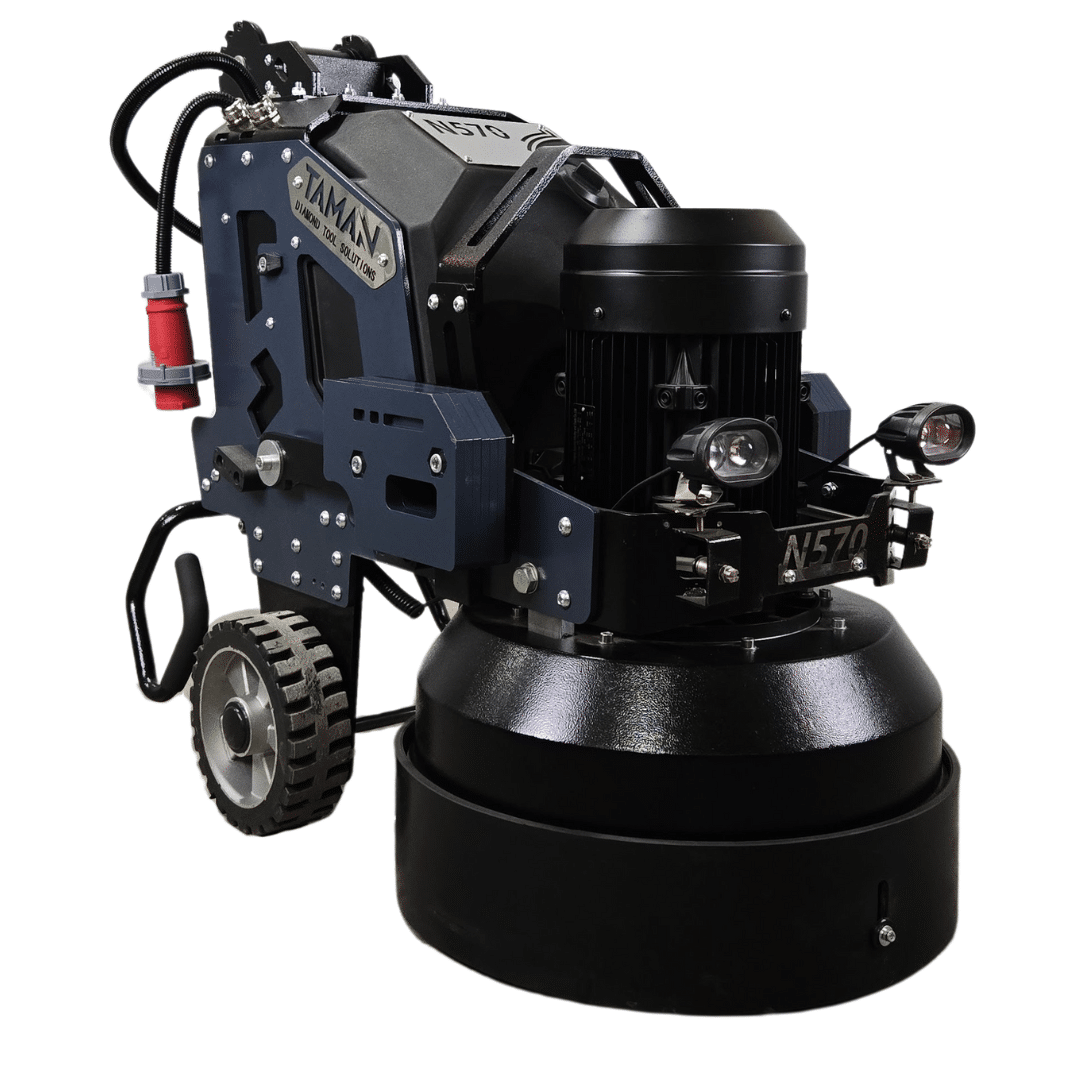

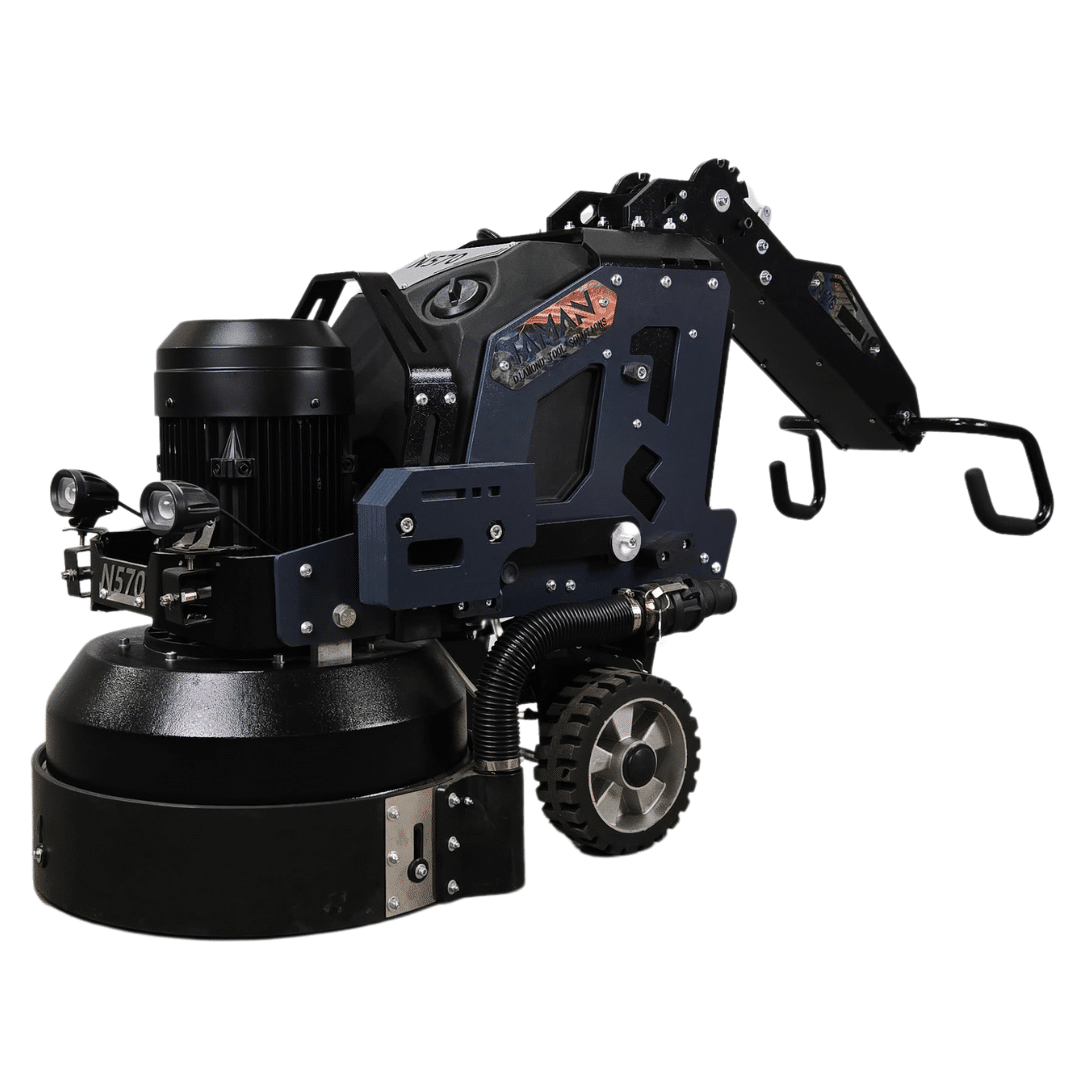

N570 – Gear Driven Planetary Grinder- three phase 7.5KW

The N570 is a powerful gear driven planetary grinder suited for medium sized jobs.

The N570 features a variable speed drive, adjustable weight kit, water tank and a 7.5KW 3 Phase motor. This makes the machine suited to all flooring applications including floor preparation, honing and polishing.

The N570 takes Redi-Lock style diamond shoes and comes with magnetic Velcro plates for standard 80mm polishing pucks or complete burnishing pads.

The N570 utilizes a gear driven planetary gearbox, this drastically reduces the maintenance burden when compares to standard belt driven machines while providing increased torque and head pressure. The self-leveling grinding head and Moreflex couplings allow the machine to easily follow the undulations in the floor while grinding it flat.

Technical Data
Motor: 7.5KW
Weight: 330 KG
Power: 3-Phase 20A
Drive: Planetary aluminum alloy gear box
Dust Port: 50mm
Tooling: Redi-Lock
Number of Heads: 3
